ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )4FC

Click highlighted areas on diagram

U140F,U241E

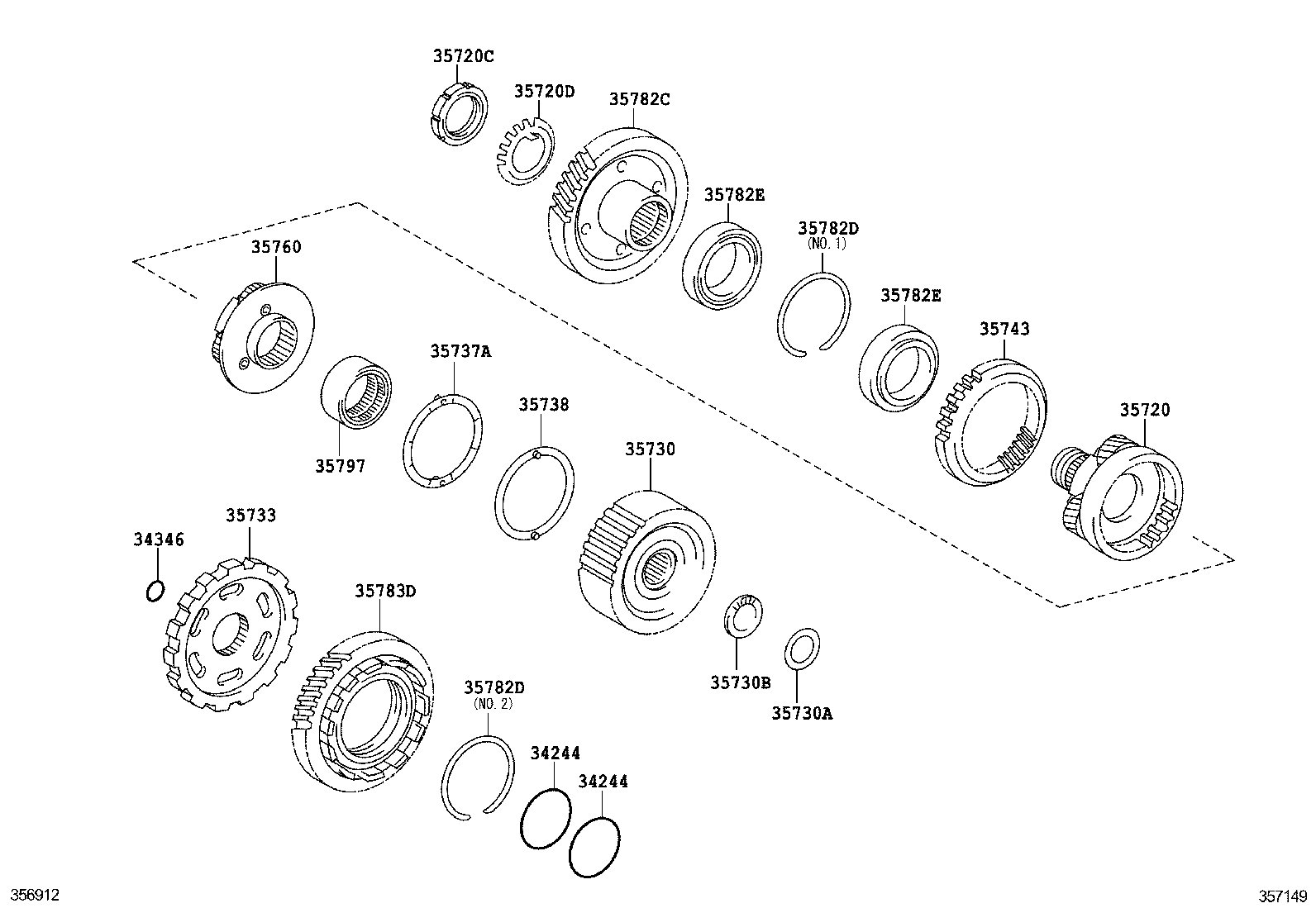

diagram 34244 34244 34346 35720 35720C 35720D 35730 35730A 35730B 35733 35737A 35738 35743 35760 35782C 35782D 35782D 35782E 35782E 35783D 35797
Part # Description Qty Price
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

ACA3#..4FC

 2
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

ACA3#..4FC

 2
34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
34346-21011

ACA3#..4FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-28080

ACA3#..4FC

 1
35720C - NUT (FOR FRONT PLANETARY GEAR)
90179-46001

ACA3#..4FC

 1
35720D - WASHER (FOR FRONT PLANETARY GEAR)
90209-46001

ACA3#..4FC

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-28020

ACA3#..4FC

 1
35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35789-21010

ACA3#..4FC

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-33003

ACA3#..4FC

 1
35733 - GEAR, PARKING LOCK
35733-32040

ACA37..4FC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-28010

ACA3#..4FC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35737-28020

ACA3#..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-28010

ACA3#..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-28010

ACA3#..4FC

 1
35782C - GEAR, COUNTER DRIVE
35782-28020

ACA37..4FC

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

ACA3#..4FC

NO.2

 1
90520-84001

ACA3#..4FC

NO.1

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

ACA3#..4FC

NO.2

 1
90520-84001

ACA3#..4FC

NO.1

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90366-60009

ACA3#..4FC

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90366-60009

ACA3#..4FC

 2
35783D - GEAR, COUNTER DRIVEN
35783-28020

ACA37..4FC

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-21010

ACA3#..4FC

 1
