ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )4FC

Click highlighted areas on diagram

U140F,U241E

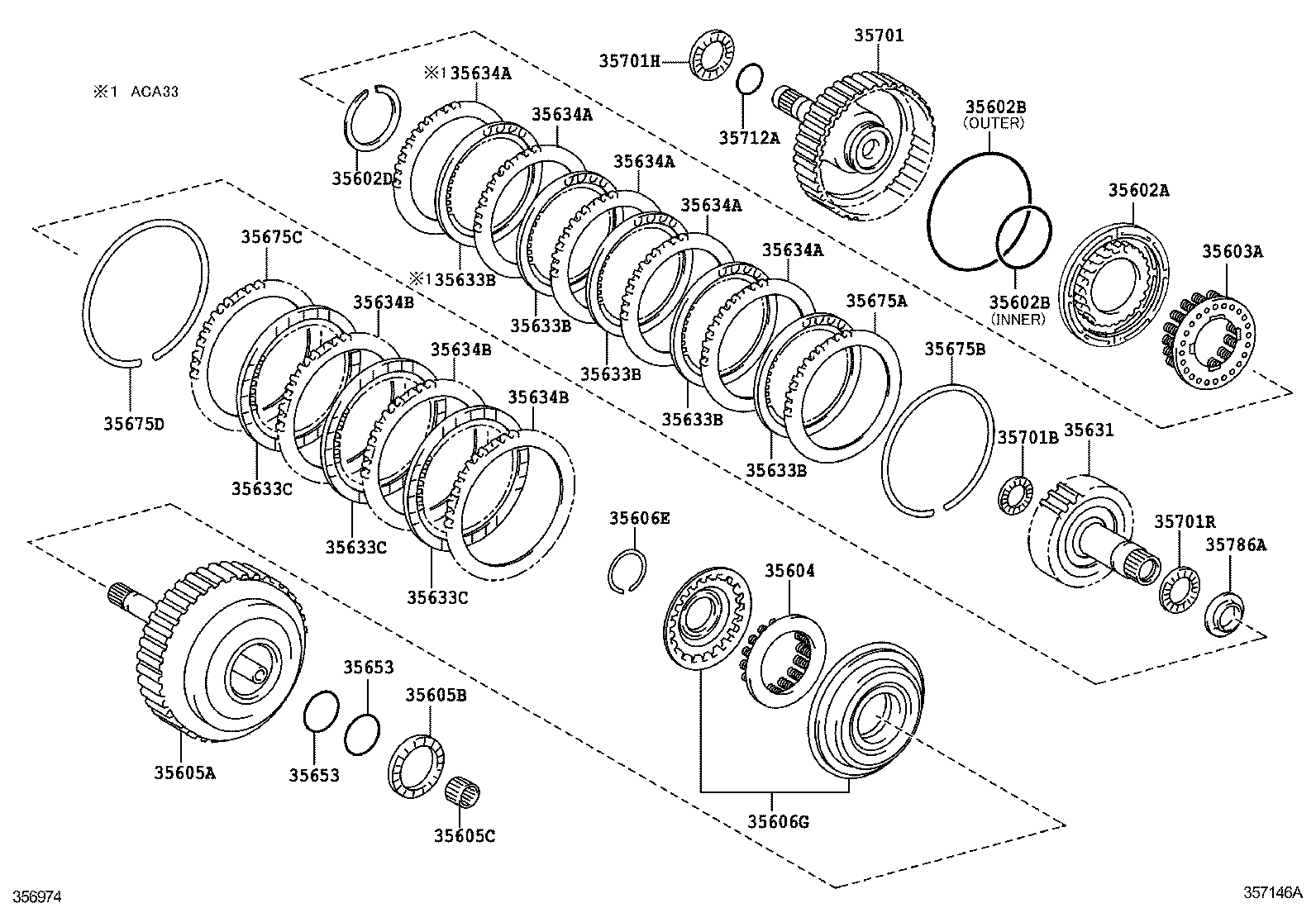

diagram 35602A 35602B 35602B 35602D 35603A 35604 35605A 35605B 35605C 35606E 35606G 35631 35633B 35633B 35633B 35633B 35633B 35633C 35633C 35633C 35634A 35634A 35634A 35634A 35634A 35634B 35634B 35634B 35653 35653 35675A 35675B 35675C 35675D 35701 35701B 35701H 35701R 35712A 35786A
Part # Description Qty Price
35602A - PISTON SUB-ASSY, FORWARD CLUTCH
35602-28010

ACA3#..4FC

 1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-65006

ACA3#..4FC

INNER

 1
90301-99104

ACA3#..4FC

OUTER

 1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-65006

ACA3#..4FC

INNER

 1
90301-99104

ACA3#..4FC

OUTER

 1
35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN
90520-54004

ACA3#..4FC

 1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-21010

ACA3#..4FC

 1
35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-21010

ACA3#..4FC

 1
35605A - DRUM SUB-ASSY, DIRECT CLUTCH
35605-28020

ACA3#..4FC

 1
35605B - BEARING, THRUST NEEDLE ROLLER
90374-53002

ACA3#..4FC

BLACK

 1
90374-53001

ACA3#..4FC

BROWN

 1
35605C - BEARING, NEEDLE ROLLER
90364-18010

ACA3#..4FC

 1
35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN
90520-38019

ACA3#..4FC

 1
35606G - PISTON SET, DIRECT CLUTCH
35606-21010

ACA3#..4FC

 1
35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35061-28010

ACA3#..4FC

 1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-28010

ACA37..4FC

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-28010

ACA37..4FC

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-28010

ACA37..4FC

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-28010

ACA37..4FC

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-28010

ACA37..4FC

 4
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030

ACA3#..4FC

 3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030

ACA3#..4FC

 3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030

ACA3#..4FC

 3
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-28010

ACA37..4FC

T=1.8

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-28010

ACA37..4FC

T=1.8

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-28010

ACA37..4FC

T=1.8

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-28010

ACA37..4FC

T=1.8

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-28010

ACA37..4FC

T=1.8

 4
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-28010

ACA3#..4FC

T=3.0

 3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-28010

ACA3#..4FC

T=3.0

 3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-28010

ACA3#..4FC

T=3.0

 3
35653 - RING, REAR CLUTCH OIL SEAL, OUTER
35653-33010

ACA3#..4FC

 2
35653 - RING, REAR CLUTCH OIL SEAL, OUTER
35653-33010

ACA3#..4FC

 2
35675A - FLANGE, FORWARD CLUTCH
35635-21040

ACA3#..4FC

T=3.45

 1
35635-21010

ACA3#..4FC

T=3.00

 1
35635-21050

ACA3#..4FC

T=3.60

 1
35635-21020

ACA3#..4FC

T=3.15

 1
35635-21030

ACA3#..4FC

T=3.30

 1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90520-99025

ACA3#..4FC

 1
35675C - FLANGE, DIRECT CLUTCH
35675-21010

ACA3#..4FC

T=3.0

 1
35675-21040

ACA3#..4FC

T=3.3

 1
35675-21020

ACA3#..4FC

T=3.1

 1
35675-21050

ACA3#..4FC

T=3.4

 1
35675-21030

ACA3#..4FC

T=3.2

 1
35675-21060

ACA3#..4FC

T=3.5

 1
35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
90520-99028

ACA3#..4FC

 1
35701 - SHAFT SUB-ASSY, INPUT
35701-42020

ACA37..4FC

 1
35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
90374-23002

ACA3#..4FC

 1
35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
90374-34005

ACA3#..4FC

OD=52.2

 1
35701R - BEARING, THRUST NEEDLE ROLLER
90374-37005

ACA3#..4FC

 1
35712A - RING, INPUT SHAFT OIL SEAL
35712-21010

ACA3#..4FC

 1
35786A - RACE, THRUST BEARING, NO.1
35786-21010

ACA3#..4FC

 1
