ACA37L-ANPXKC (2009)
Toyota Rav4 (China)
(0903- )4FC
U140F,U241E

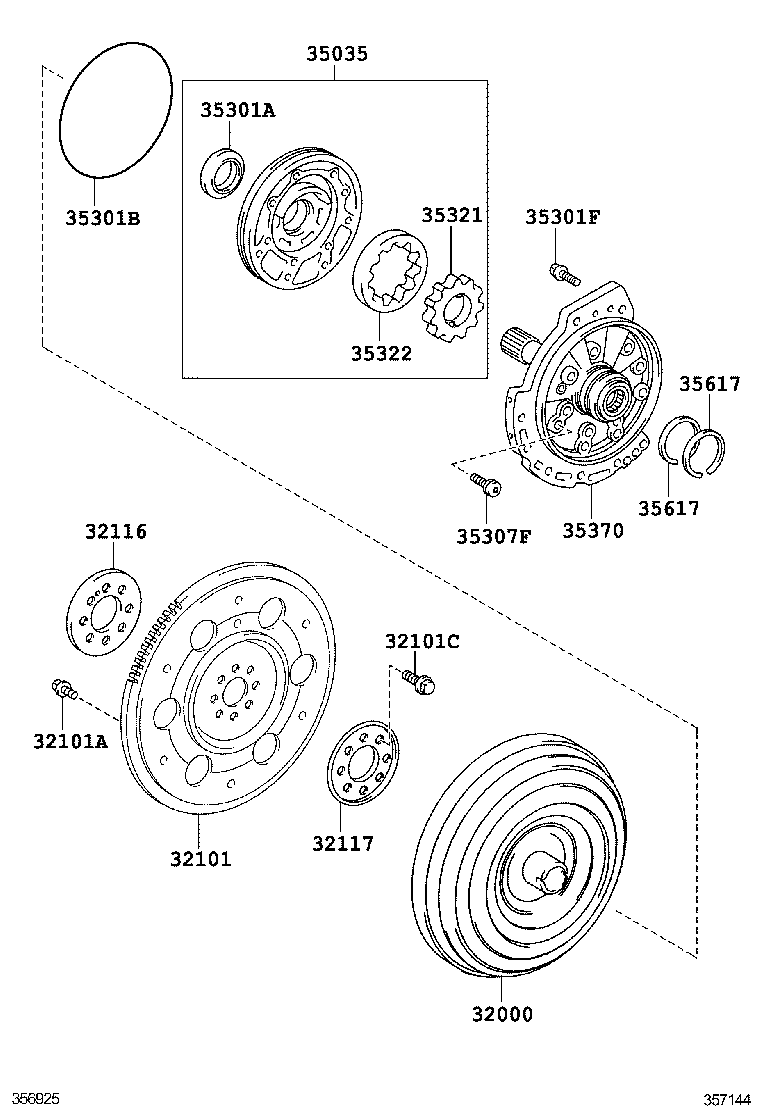

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-42040 |
ACA37..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-06040 |
ACA3#..4FC (L) |
1 | ||
| 32101-28040 |
ACA3#..4FC (J) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ACA3#..4FC *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ACA3#..4FC *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-A0060 |
ACA3#..4FC *12-1.25PX22-16,(L) |
8 | ||
| 90105-12184 |
ACA3#..4FC *12-1.25PX22-16 |
8 | ||
| 90105-12184 |
ACA3#..4FC *12-1.25PX22-16,(J) |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-20050 |
ACA3#..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-20060 |
ACA3#..4FC |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-28010 |
ACA3#..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38083 |
ACA3#..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99099 |
ACA3#..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
ACA3#..4FC *8-1.25PX28-28 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60027 |
ACA3#..4FC |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-28080 |
ACA3#..4FC T=10.715,MARK 3 |
1 | ||
| 35321-28090 |
ACA3#..4FC T=10.715,MARK 4 |
1 | ||
| 35321-28100 |
ACA3#..4FC T=10.715,MARK 5 |
1 | ||
| 35321-28070 |
ACA3#..4FC T=10.715,MARK 2 |
1 | ||
| 35321-28060 |
ACA3#..4FC T=10.715,MARK 1 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-28100 |
ACA3#..4FC T=10.715,MARK 5 |
1 | ||
| 35322-28070 |
ACA3#..4FC T=10.715,MARK 2 |
1 | ||
| 35322-28060 |
ACA3#..4FC T=10.715,MARK 1 |
1 | ||
| 35322-28090 |
ACA3#..4FC T=10.715,MARK 4 |
1 | ||
| 35322-28080 |
ACA3#..4FC T=10.715,MARK 3 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-28010 |
ACA3#..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
ACA3#..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-21010 |
ACA3#..4FC |
2 | ||
