ACA37L-ANPXKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

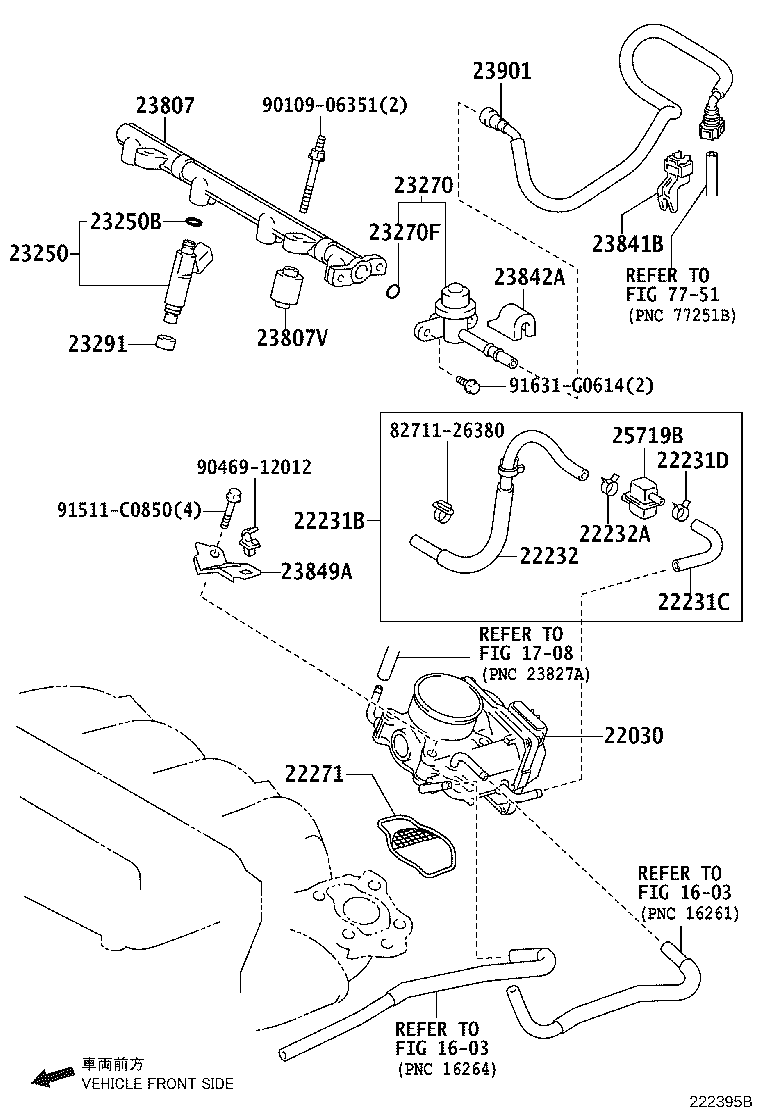

(0903-0909)1AZFE

Click highlighted areas on diagram

diagram 1603 1603 1708 22030 22231B 22231C 22231D 22232 22232A 22271 23250 23250B 23270 23270F 23291 23807 23807V 23841B 23842A 23849A 23901 25719B 7751 8271126380 9010906351 9046912012 91511C0850 91631G0614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0H040

1AZFE,2AZFE..ACA3#

(L)

 1
22030-28070

1AZFE,2AZFE..ACA3#

(J)

 1
22030-0H041

1AZFE,2AZFE..ACA3#

 1
22231B - HOSE, THROTTLE BODY
22231-28070

1AZFE..ACA37

 1
22231C - HOSE, THROTTLE BODY, NO.1
22231-28100

1AZFE..ACA37

 1
22231D - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
90467-12056

1AZFE..ACA37

 1
22232 - HOSE, THROTTLE BODY, NO.2
22232-28010

1AZFE..ACA37

 1
22232A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
90467-12056

1AZFE..ACA37

 1
22271 - GASKET, THROTTLE BODY
22271-28020

1AZFE..ACA37

 1
23250 - INJECTOR ASSY, FUEL
23209-0H060

1AZFE,2AZFE..ACA3#

(L)

 4
23209-28080

1AZFE,2AZFE..ACA3#

(J)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1AZFE,2AZFE..ACA3#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28052

1AZFE,2AZFE..ACA3#

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

1AZFE,2AZFE..ACA3#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1AZFE,2AZFE..ACA3#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031

1AZFE,2AZFE..ACA3#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053

1AZFE,2AZFE..ACA3#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0H030

1AZFE,2AZFE..ACA3#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0H030

1AZFE,2AZFE..ACA3#

 1
23849A - SUPPORT, FUEL PIPE
23849-28050

1AZFE,2AZFE..ACA3#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0H120

1AZFE,2AZFE..ACA3#

 1
25719B - TANK, VACUUM SURGE
25719-28040

1AZFE..ACA37

 1
Common parts
82711-26380
90109-06351
90469-12012
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7751

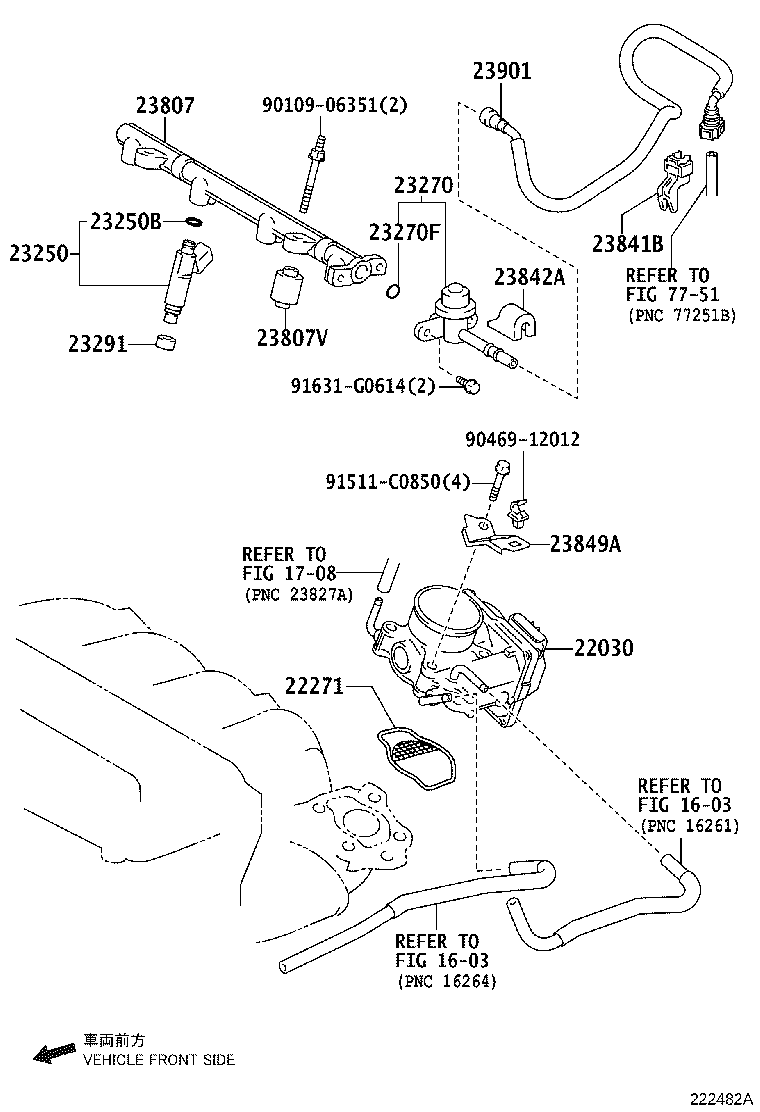

(0909- )1AZFE

Click highlighted areas on diagram

diagram 1603 1603 1708 22030 22271 23250 23250B 23270 23270F 23291 23807 23807V 23841B 23842A 23849A 23901 7751 9010906351 9046912012 91511C0850 91631G0614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0H040

1AZFE,2AZFE..ACA3#

(L)

 1
22030-28070

1AZFE,2AZFE..ACA3#

(J)

 1
22030-0H041

1AZFE,2AZFE..ACA3#

 1
22271 - GASKET, THROTTLE BODY
22271-28020

1AZFE..ACA37

 1
23250 - INJECTOR ASSY, FUEL
23209-0H060

1AZFE,2AZFE..ACA3#

(L)

 4
23209-28080

1AZFE,2AZFE..ACA3#

(J)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1AZFE,2AZFE..ACA3#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28052

1AZFE,2AZFE..ACA3#

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

1AZFE,2AZFE..ACA3#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1AZFE,2AZFE..ACA3#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031

1AZFE,2AZFE..ACA3#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053

1AZFE,2AZFE..ACA3#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0H030

1AZFE,2AZFE..ACA3#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0H030

1AZFE,2AZFE..ACA3#

 1
23849A - SUPPORT, FUEL PIPE
23849-28050

1AZFE,2AZFE..ACA3#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0H120

1AZFE,2AZFE..ACA3#

 1
Common parts
90109-06351
90469-12012
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7751
