ACA33L-ANMGKC (2009)
Toyota Rav4 (China)
Production
Mar 2009
-
Aug 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0903- )ACA33

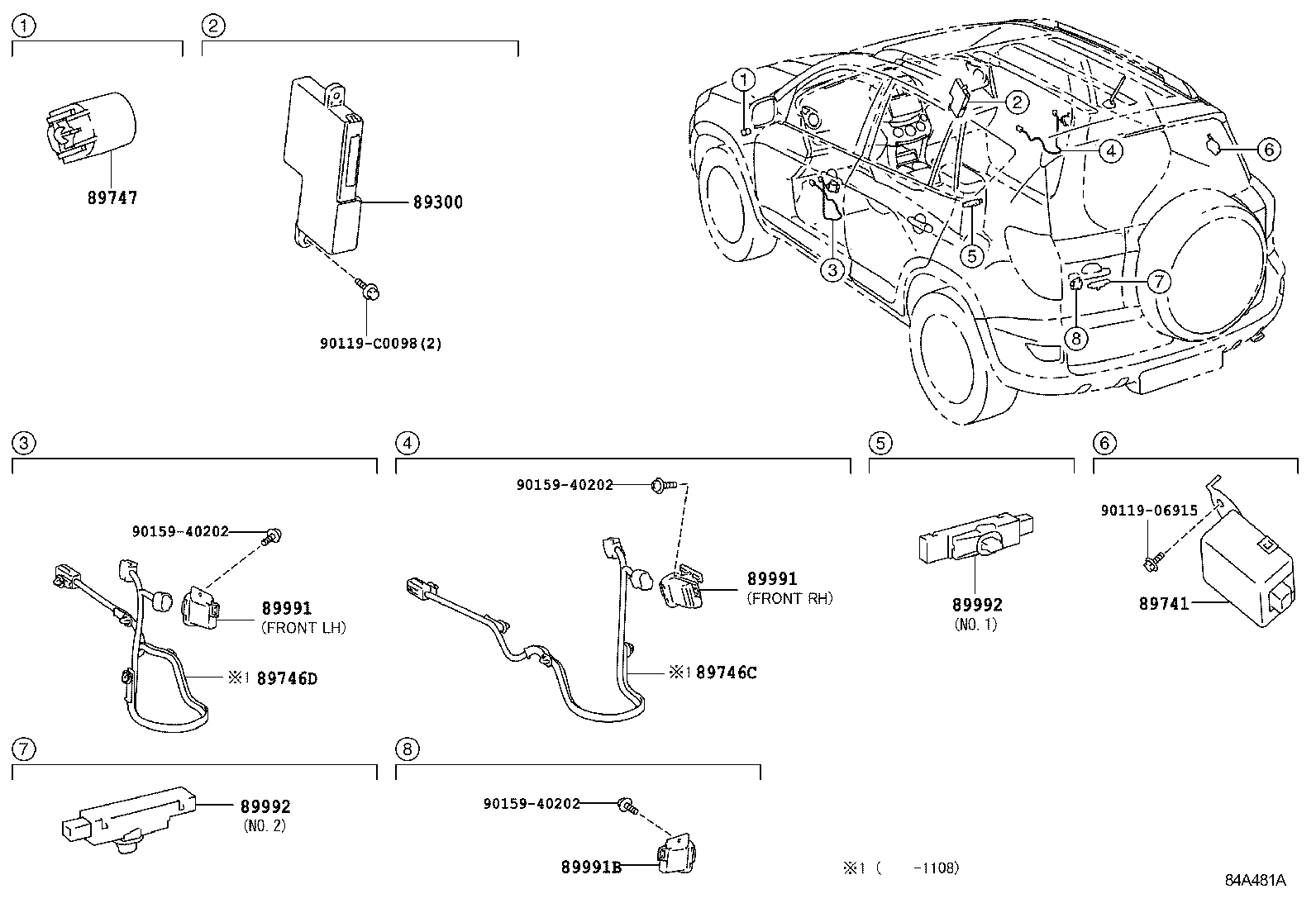

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-42070 |
ACA33 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-0R020 |
ACA33 |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-0R030 |
ACA33 |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-0R040 |
ACA33 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
ACA33 |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
ACA33 FRONT RH |
1 | ||
| 89991-30050 |
ACA33 FRONT LH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30040 |
ACA33 FRONT RH |
1 | ||
| 89991-30050 |
ACA33 FRONT LH |
1 | ||
| 89991B - OSCILLATOR, DOOR ELECTRICAL KEY(FOR LUGGAGE) | ||||
| 89991-30040 |
ACA33 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-02080 |
ACA33 NO.2 |
1 | ||
| 89992-06050 |
ACA33 NO.1 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-02080 |
ACA33 NO.2 |
1 | ||
| 89992-06050 |
ACA33 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0098 | ||||
| 90159-40202 | ||||
(0903- )
Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-0R020 |
ACA33 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
