ACA33L-ANMGKC (2009)
Toyota Rav4 (China)
Production
Mar 2009
-
Aug 2011
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0903-1203)ACA33

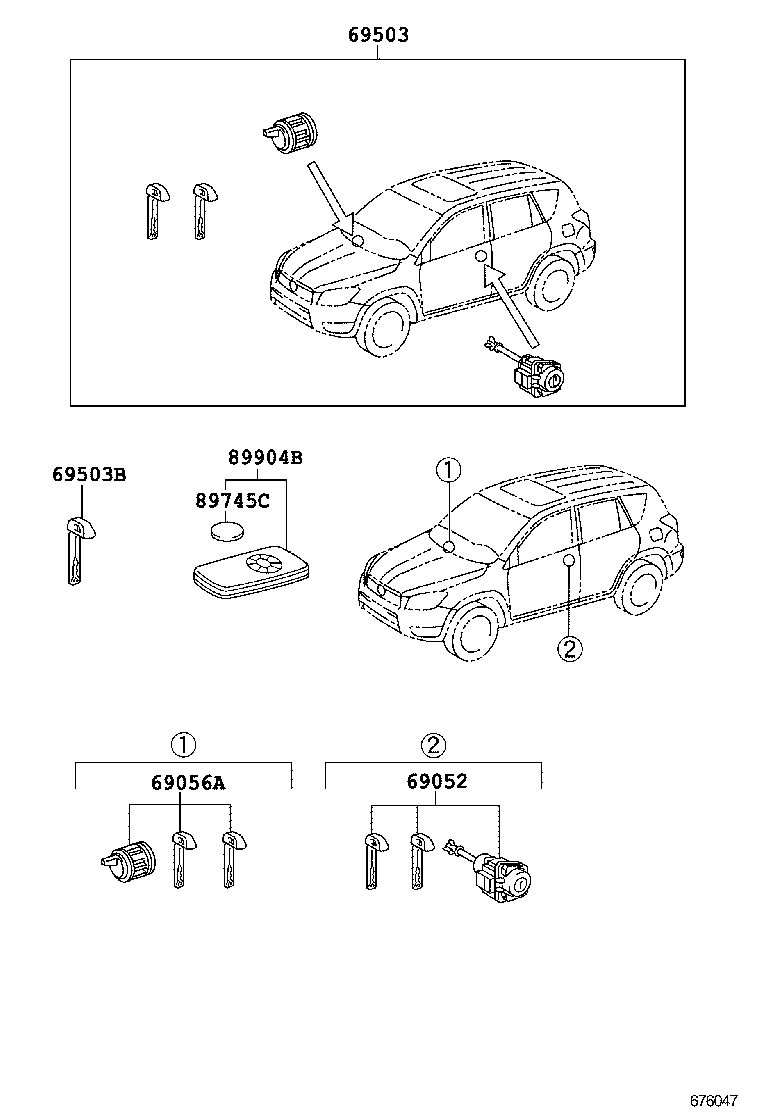

Click highlighted areas on diagram
WITH(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0R030 |
ACA33 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0R030 |
ACA33 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0R030 |
ACA33 |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-52110 |
ACA33 MASTER KEY,W(*68) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ACA33 |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-0R040 |
ACA33 |
1 | ||
(0903- )
Click highlighted areas on diagram
WITHOUT(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0R030 |
ACA33 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0R030 |
ACA33 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0R030 |
ACA33 |
1 | ||
