ACA33L-ANMGKC (2009)

Toyota Rav4 (China)

Production Mar 2009 - Aug 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ACA33

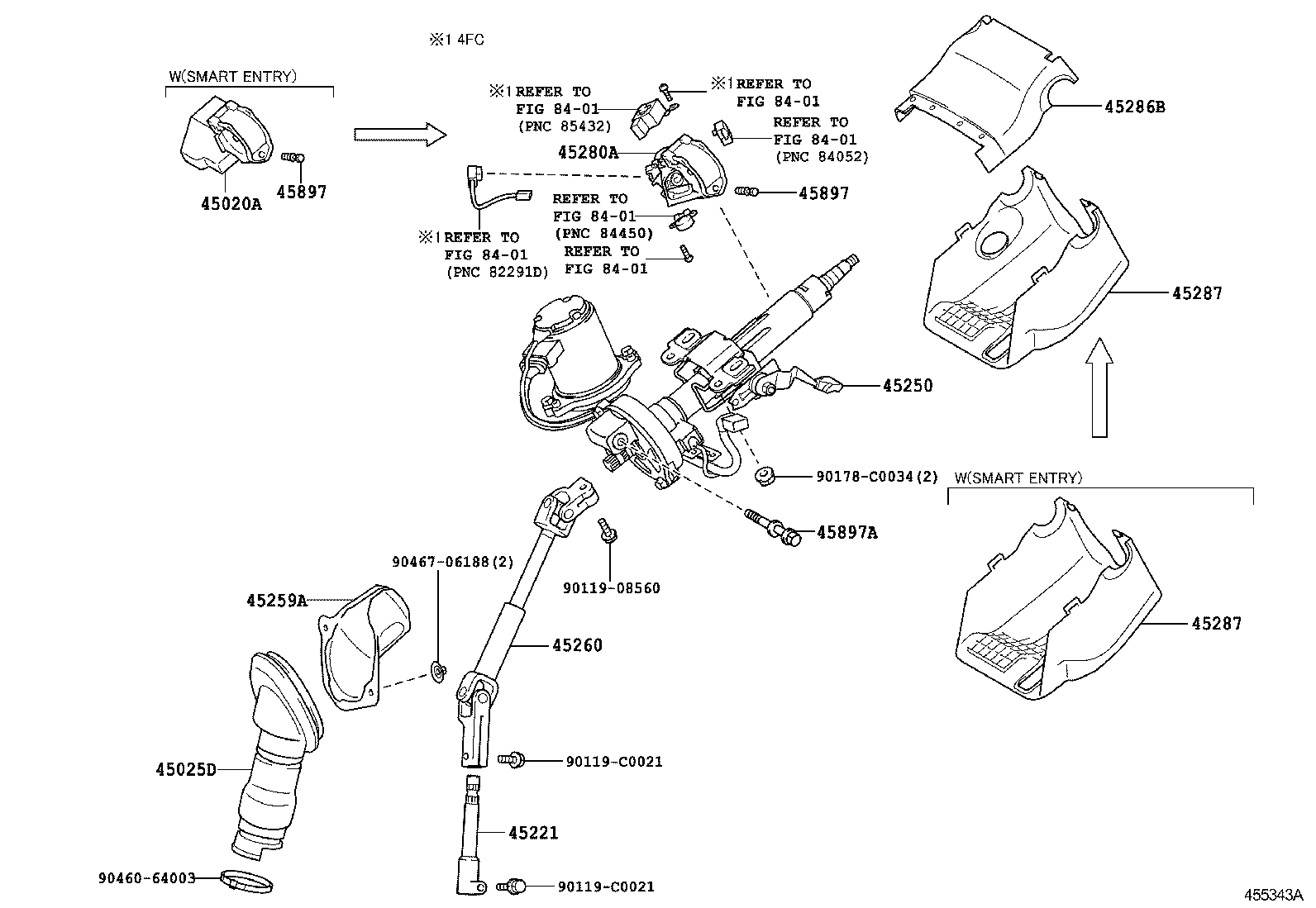

Click highlighted areas on diagram

diagram 45020A 45025D 45221 45250 45259A 45260 45280A 45286B 45287 45287 45897 45897 45897A 8401 8401 8401 8401 8401 8401 9011908560 90119C0021 90119C0021 90178C0034 9046064003 9046706188
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-02250

ACA33

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0R030

ACA3#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-42070

ACA3#

 1
45250 - COLUMN ASSY, STEERING
45250-42270

ACA33

 1
45250-42271

ACA33

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0R020

ACA3#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42090

ACA3#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0R040B0

ACA33

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0R040B0

ACA33

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0R040B0

ACA33

DK.GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACA3#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACA3#

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ACA3#

 1
Common parts
90119-08560
90119-C0021
90178-C0034
90460-64003
90467-06188
Linked diagrams
8401
