ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0903- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

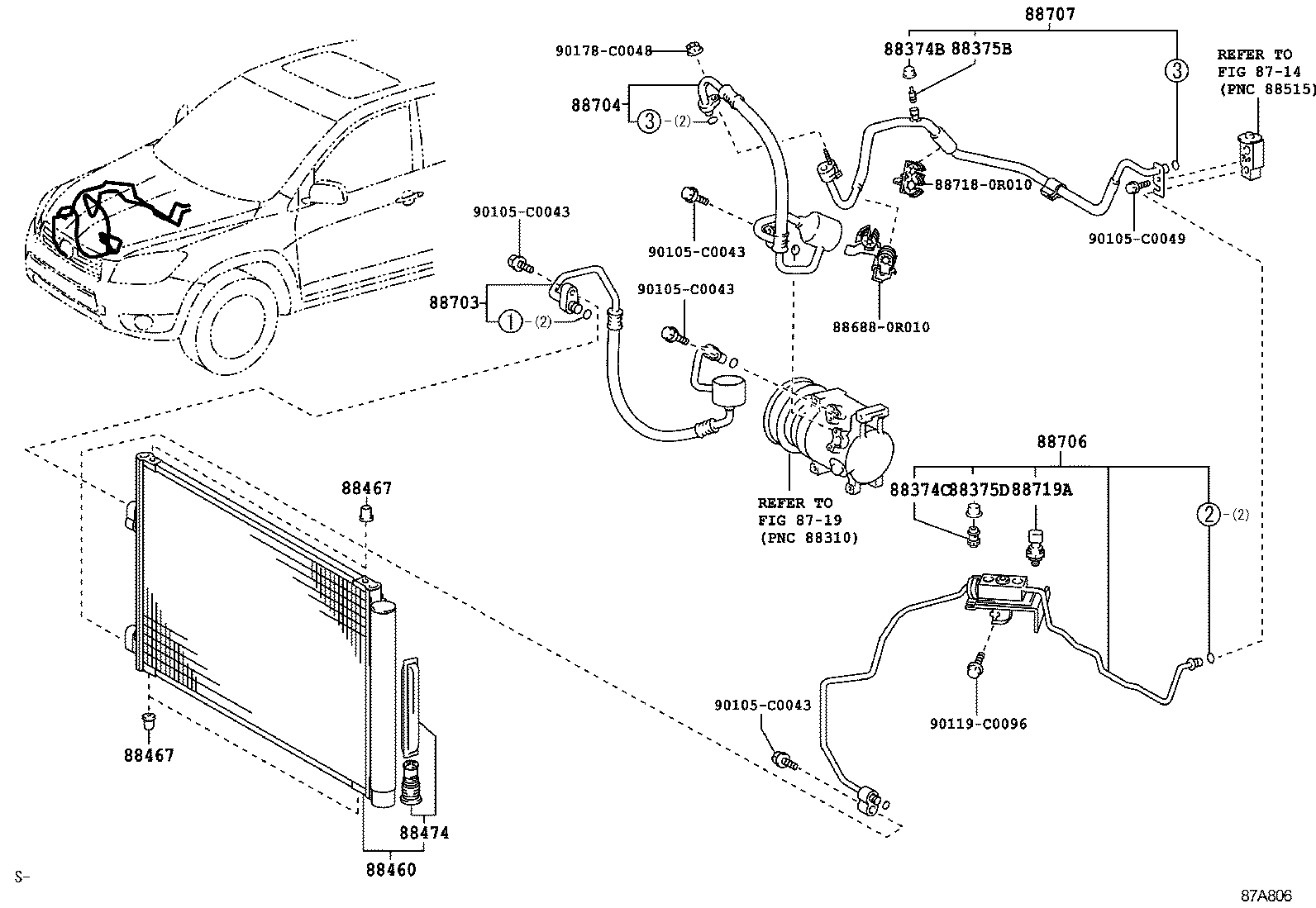

ILLUST NO. 1 OF 2(0903- )

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88474 886880R010 88703 88704 88706 88707 887180R010 88719A 90105C0043 90105C0043 90105C0043 90105C0043 90105C0049 90119C0096 90178C0048
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACA3#

 1
88374-30010

ACA3#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ACA3#

 1
88374-30010

ACA3#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ACA3#

 1
88375-30290

ACA3#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ACA3#

 1
88375-30280

ACA3#

 1
88460 - CONDENSER ASSY, COOLER
88460-0R020

ACA3#

 1
88460-0R020

ACA3#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACA3#

 4
16716-28010

ACA3#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACA3#

 4
16716-28010

ACA3#

 4
88474 - DRYER, COOLER
88474-17010

ACA3#

 1
88474-17010

ACA3#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0R020

ACA3#

 1
88703-0R020

ACA3#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0R020

ACA3#

 1
88704-0R020

ACA3#

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-0R030

ACA3#

 1
88706-0R030

ACA3#

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0R010

ACA3#

 1
88707-0R010

ACA3#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ACA3#

 1
88719-33020

ACA3#

 1
Common parts
88688-0R010
88718-0R010
90105-C0043
90105-C0049
90119-C0096
90178-C0048
Linked diagrams
8714
8719
