ACA32L-ANMXKC (2011)
Toyota Rav4 (China)
Production
Aug 2011
-
Jul 2013
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0903- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

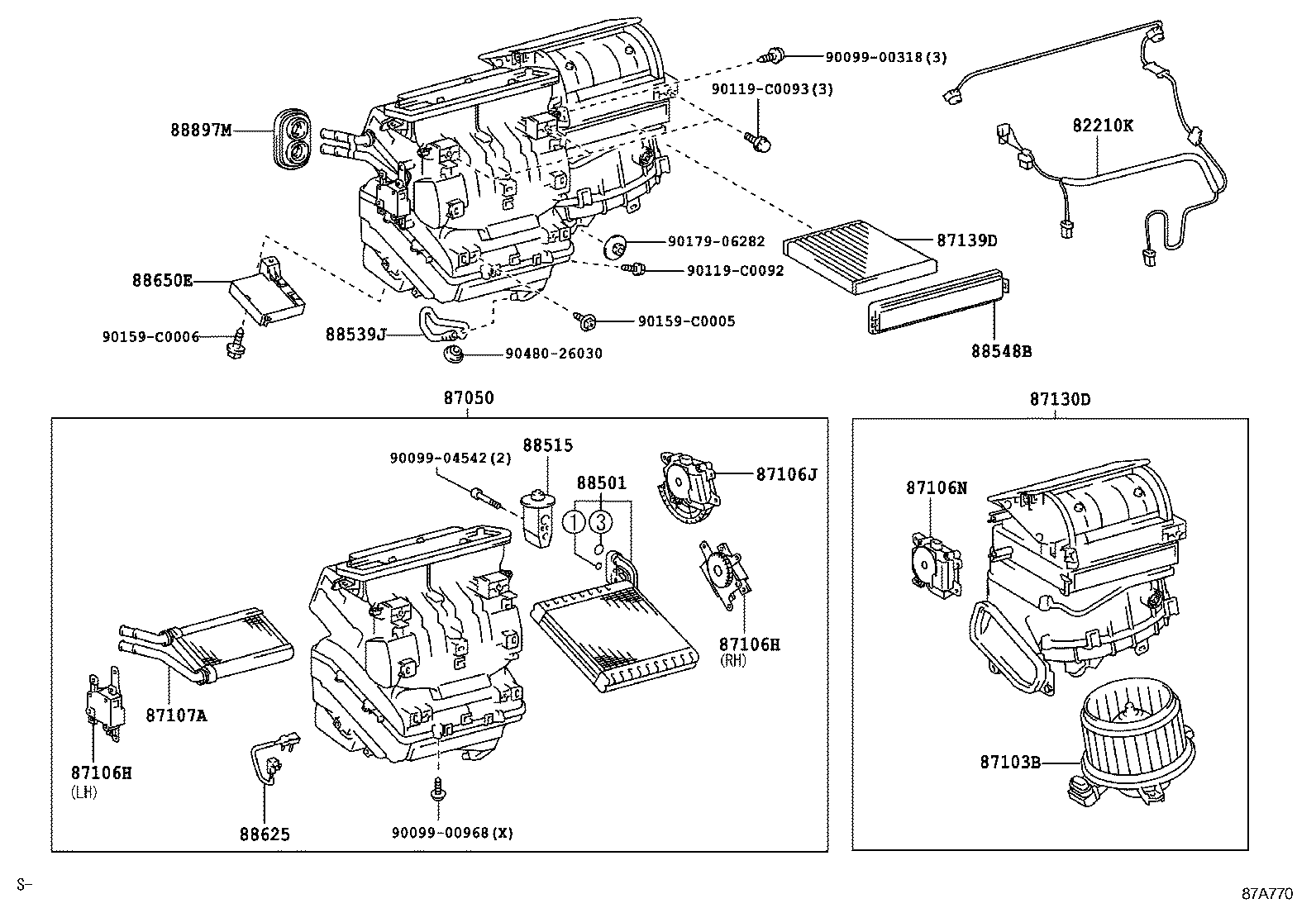

ILLUST NO. 1 OF 2(0903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0R030 |
ACA3# |
1 | ||
| 82212-0R030 |
ACA3# |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0R020 |
ACA3# |
1 | ||
| 87050-0R020 |
ACA3# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0R020 |
ACA3# |
1 | ||
| 87103-0R020 |
ACA3# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0R040 |
ACA3# RH |
1 | ||
| 87106-0R050 |
ACA3# LH |
1 | ||
| 87106-0R040 |
ACA3# RH |
1 | ||
| 87106-0R050 |
ACA3# LH |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0R040 |
ACA3# RH |
1 | ||
| 87106-0R050 |
ACA3# LH |
1 | ||
| 87106-0R040 |
ACA3# RH |
1 | ||
| 87106-0R050 |
ACA3# LH |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02320 |
ACA3# |
1 | ||
| 87106-02320 |
ACA3# |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-02340 |
ACA3# |
1 | ||
| 87106-02340 |
ACA3# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02220 |
ACA3# |
1 | ||
| 87107-02220 |
ACA3# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0R020 |
ACA3# |
1 | ||
| 87130-0R020 |
ACA3# |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-06060 |
ACA3# |
1 | ||
| 87139-06060 |
ACA3# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02211 |
ACA3# |
1 | ||
| 88501-02211 |
ACA3# |
1 | ||
| 88501-02212 |
ACA3# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02130 |
ACA3# |
1 | ||
| 88515-02130 |
ACA3# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0R030 |
ACA3# |
1 | ||
| 88539-0R030 |
ACA3# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02100 |
ACA3# |
1 | ||
| 88548-02100 |
ACA3# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D100 |
ACA3# |
1 | ||
| 88625-0D100 |
ACA3# |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0R050 |
ACA32,37 |
1 | ||
| 88650-0R050 |
ACA3# |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-02020 |
ACA3# |
1 | ||
| 87128-02020 |
ACA3# |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-C0092 | ||||
| 90119-C0093 | ||||
| 90159-C0005 | ||||
| 90159-C0006 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
