ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1203)

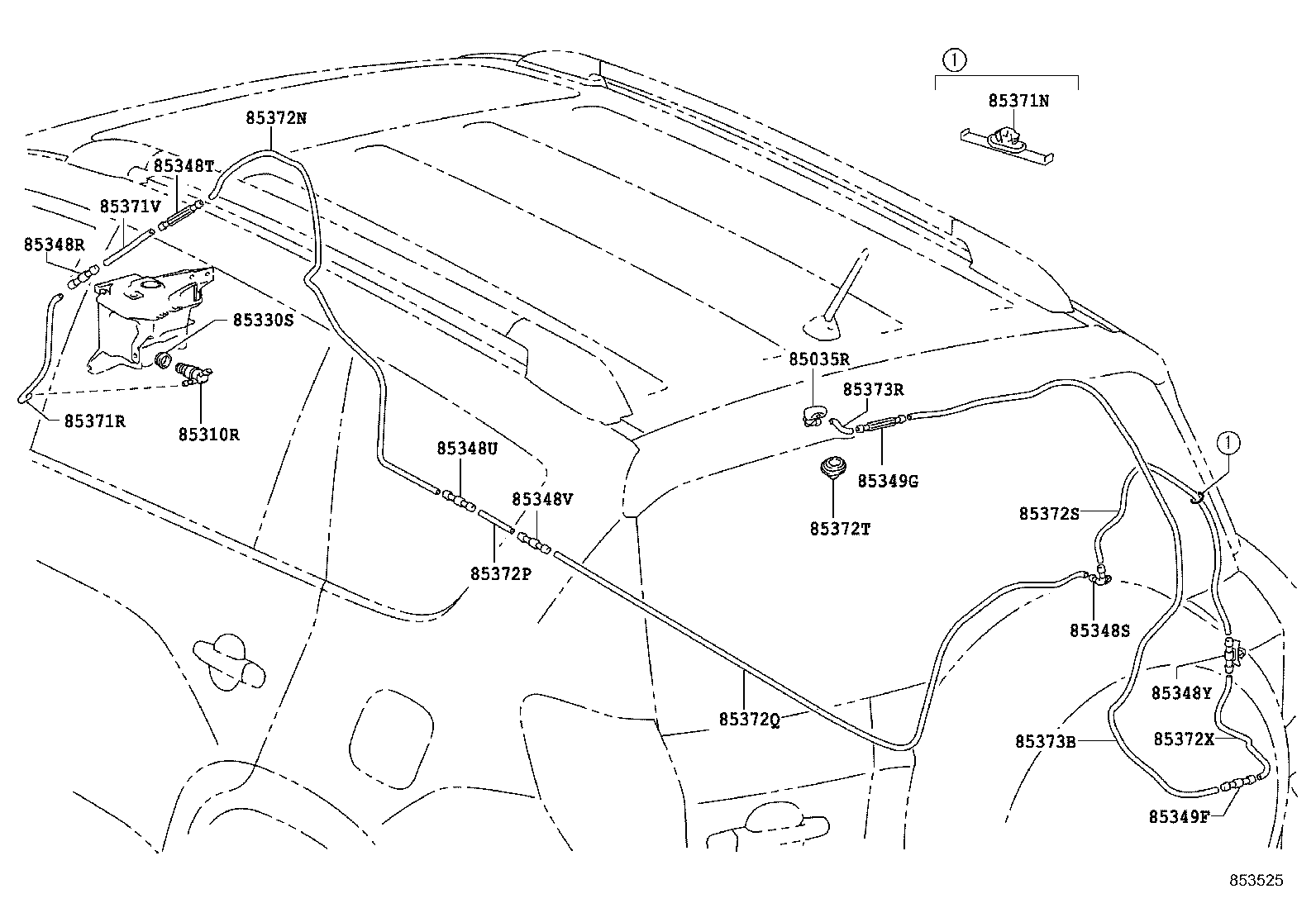

Click highlighted areas on diagram

diagram 85035R 85310R 85330S 85348R 85348S 85348T 85348U 85348V 85348V 85348Y 85349F 85349G 85371N 85371R 85371V 85372N 85372P 85372Q 85372S 85372T 85372W 85372X 85373B 85373R
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-42010

ACA3#

 1
85391-42010

ACA3#

 1
85310R - MOTOR ASSY, REAR WASHER
85330-60160

ACA3#

 1
85330-60160

ACA3#

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ACA3#

 1
85336-60300

ACA3#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-0D030

ACA3#

 1
85375-0D030

ACA3#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-60290

ACA3#

 1
85375-60290

ACA3#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-0R060

ACA3#

 1
85349-0R060

ACA3#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-0D030

ACA3#

 1
85375-0D030

ACA3#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-0D030

ACA3#

 2
85375-0D030

ACA3#

 2
85375-0D030

ACA3#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-0D030

ACA3#

 2
85375-0D030

ACA3#

 2
85375-0D030

ACA3#

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-0R050

ACA3#

 1
85375-0R050

ACA3#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-0D030

ACA3#

 1
85375-0D030

ACA3#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-0R060

ACA3#

 1
85349-0R060

ACA3#

 1
85371N - CLAMP, REAR WASHER HOSE
82711-3F290

ACA3#

 1
82711-3F290

ACA3#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-59076

ACA3#

L=780

 1
90068-59076

ACA3#

L=780

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90068-33074

ACA3#

L=40

 1
90068-33074

ACA3#

L=40

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90068-59074

ACA3#

L=1190

 1
90068-59074

ACA3#

L=1190

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90068-33074

ACA3#

L=40

 1
90068-33074

ACA3#

L=40

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90068-59073

ACA3#

L=2110

 1
90068-59073

ACA3#

L=2110

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90068-59104

ACA3#

L=910

 1
90068-33061

ACA3#

L=350

 1
90068-33061

ACA3#

L=350

 1
85372T - GROMMET, WASHER
85372-20020

ACA3#

 1
85372-20020

ACA3#

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90068-59072

ACA3#

L=550

 1
90068-59072

ACA3#

L=550

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90068-33098

ACA3#

L=450

 1
90068-33098

ACA3#

L=450

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90068-59075

ACA3#

L=1460

 1
90068-59075

ACA3#

L=1460

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90068-33043

ACA3#

L=50

 1
90068-33043

ACA3#

L=50

 1
