ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

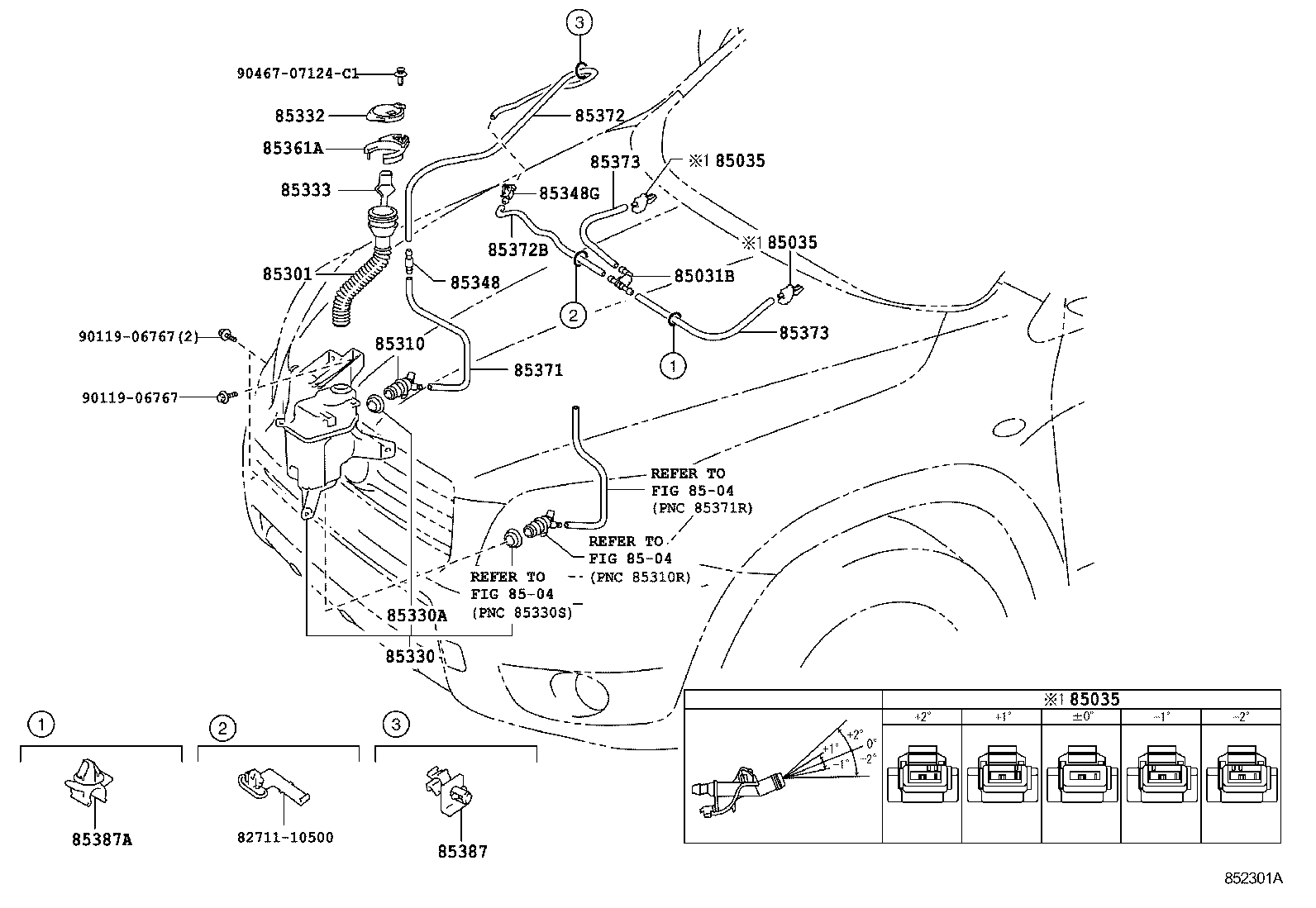

Click highlighted areas on diagram

diagram 8271110500 85031B 85035 85035 85035 8504 8504 8504 85301 85310 85330 85330A 85332 85333 85348 85348G 85361A 85371 85372 85372B 85373 85373 85387 85387A 9011906767 9011906767 9046707124C1
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-28020

ACA3#

 1
85321-28020

ACA3#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30210

ACA3#

ANGLE -2

 2
85381-30180

ACA3#

ANGLE +1

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30200

ACA3#

ANGLE +2

 2
85381-30170

ACA3#

ANGLE 0

 2
85381-30190

ACA3#

ANGLE -1

 2
85301 - INLET SUB-ASSY, WASHER
85319-0R020

ACA3#

 1
85319-0R020

ACA3#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-71010

ACA3#

 1
85330-71010

ACA3#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0R020

ACA3#

 1
85315-0R020

ACA3#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

ACA3#

 1
85336-60300

ACA3#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0P010

ACA3#

 1
85316-0P010

ACA3#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-0R010

ACA3#

 1
85312-0R010

ACA3#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-0D030

ACA3#

 1
85375-0D030

ACA3#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-0R050

ACA3#

 1
85375-0R050

ACA3#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-0R020

ACA3#

 1
85337-0R020

ACA3#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33100

ACA3#

L=710

 1
90068-33100

ACA3#

L=710

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33097

ACA3#

L=265

 1
90068-33097

ACA3#

L=265

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33099

ACA3#

L=730

 1
90068-33099

ACA3#

L=730

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33070

ACA3#

L=500

 2
90068-33070

ACA3#

L=500

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33070

ACA3#

L=500

 2
90068-33070

ACA3#

L=500

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85371-32020

ACA3#

 1
85371-32020

ACA3#

 1
85387A - CLAMP, WASHER, NO.2
90469-07011

ACA3#

 1
90469-07011

ACA3#

 1
Common parts
82711-10500
90119-06767
90467-07124C1
Linked diagrams
8504
