ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

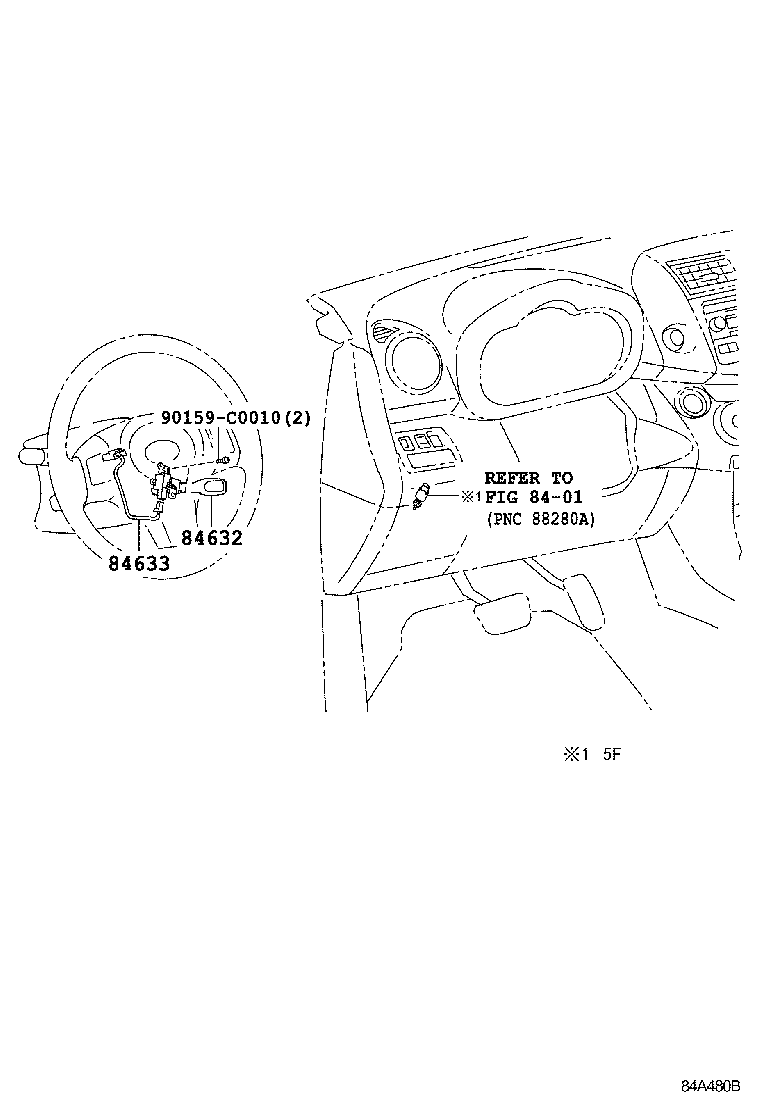

Click highlighted areas on diagram

diagram 8401 84632 84633 90159C0010
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

ACA32

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 1
84632-34011

ACA32

CRUISE CONTROL-WITH(ELECTRIC,W/VSC)

 1
84632-34011

ACA3#

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

ACA3#

 1
84633-48020

ACA32

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 1
84633-48020

ACA32

CRUISE CONTROL-WITH(ELECTRIC,W/VSC)

 1
Common parts
90159-C0010
Linked diagrams
8401
