ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

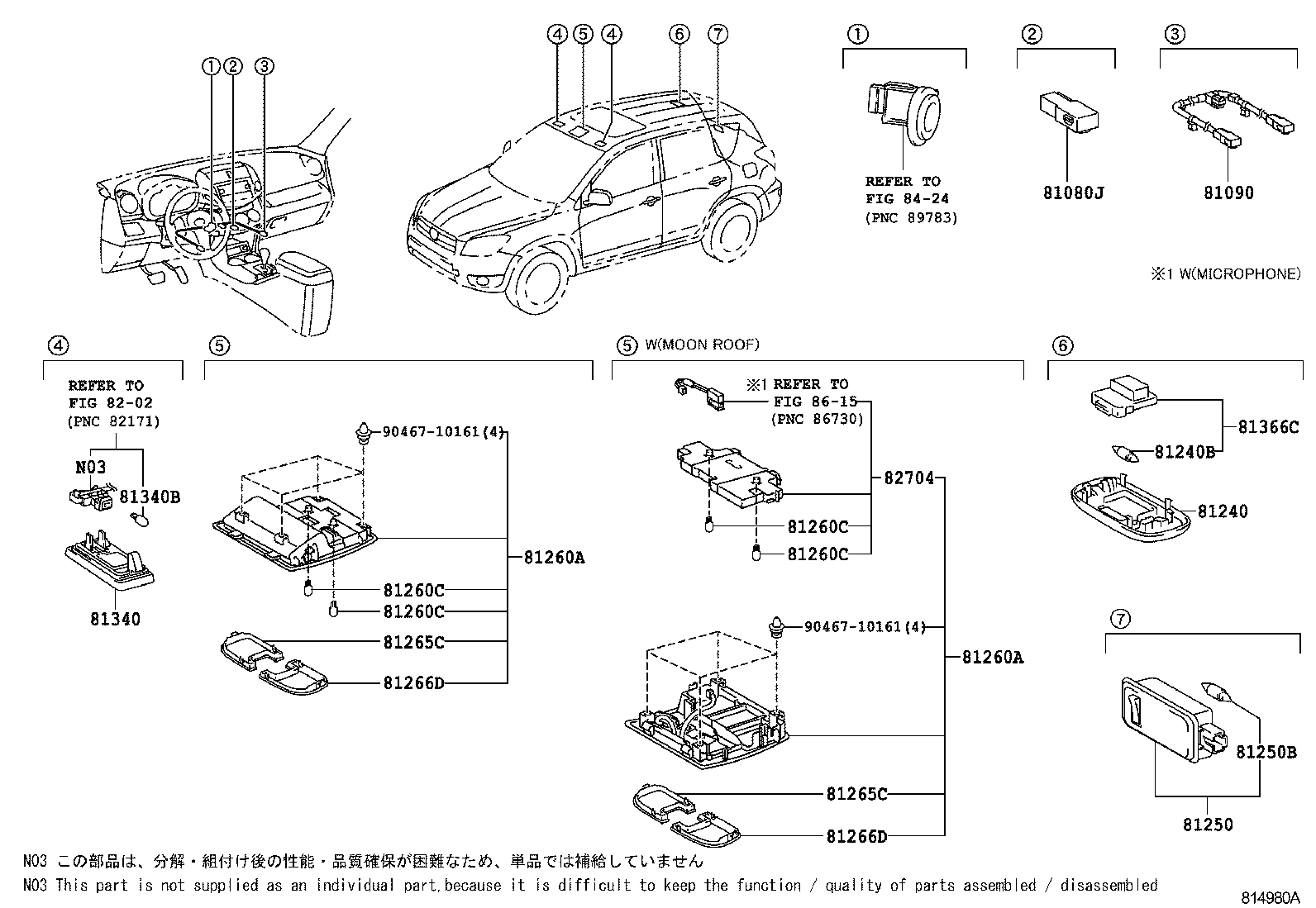

Click highlighted areas on diagram

diagram 81080J 81090 81240 81240B 81250 81250B 81260A 81260A 81260C 81260C 81260C 81260C 81265C 81265C 81266D 81266D 81340 81340B 81366C 8202 82704 8424 8615 9046710161 9046710161
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0R020

ACA3#

 1
81080-42010

ACA3#

 1
81080-42010

ACA3#

 1
81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81090-42010

ACA3#

 1
81090-42010

ACA3#

 1
81090-0R020

ACA3#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-52040B0

ACA3#

GRAY,TRIM1#

 1
81240-52040E2

ACA3#

SAND BEIGE,TRIM4#

 1
81240-52040B0

ACA3#

GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ACA3#

12V 8W

 1
90981-14011

ACA3#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ACA3#

 1
81250-48010

ACA3#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ACA3#

12V 5W

 1
99132-13050

ACA3#

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-0R060E0

ACA32,33

SAND BEIGE,TRIM4#

 1
81260-0R060B0

ACA32,33

GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-0R060E0

ACA32,33

SAND BEIGE,TRIM4#

 1
81260-0R060B0

ACA32,33

GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA3#

12V 8W

 2
90981-11062

ACA3#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA3#

12V 8W

 2
90981-11062

ACA3#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA3#

12V 8W

 2
90981-11062

ACA3#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

ACA3#

12V 8W

 2
90981-11062

ACA3#

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-42020

ACA32,33

 1
81265C - LENS, MAP LAMP, NO.1
81265-42020

ACA32,33

 1
81266D - LENS, MAP LAMP, NO.2
81266-42020

ACA32,33

 1
81266D - LENS, MAP LAMP, NO.2
81266-42020

ACA32,33

 1
81340 - LAMP ASSY, VANITY
81340-0P010

ACA3#

 2
81340-0N010E1

ACA3#

SAND BEIGE,TRIM4#

 2
81340-0N010B1

ACA3#

GRAY,TRIM1#

 2
81340-0N010B1

ACA3#

GRAY,TRIM1#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ACA3#

12V 8W

 2
90981-11062

ACA3#

12V 8W

 2
81366C - BASE, ROOM LAMP SWITCH
81366-68010

ACA3#

 1
81366-68010

ACA3#

 1
82704 - BLOCK, OVERHEAD JUNCTION
82704-0R041B0

ACA32,33

GRAY,TRIM1#

 1
82704-0R041E0

ACA32,33

SAND BEIGE,TRIM4#

 1
Common parts
90467-10161
Linked diagrams
8202
8424
8615
