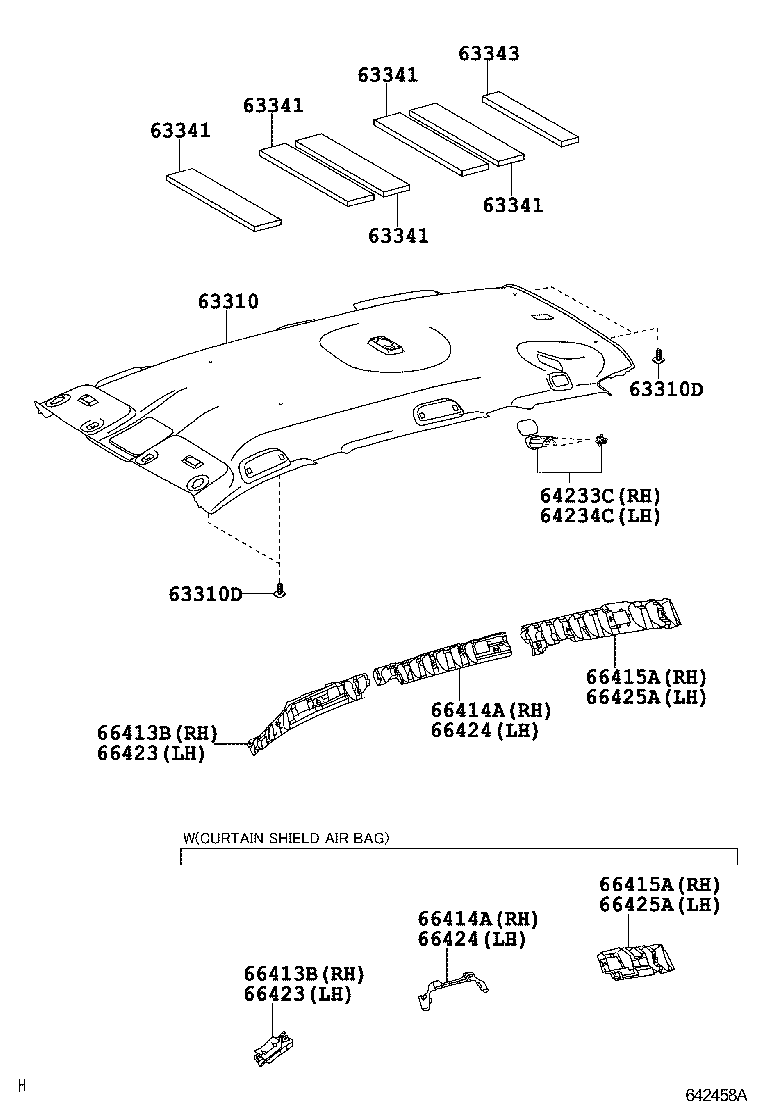

ACA32L-ANMXKC (2011)
Toyota Rav4 (China)
(0903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0R060E0 |
ACA32,33 SAND BEIGE,TRIM4# |
1 | ||
| 63310-0R060B0 |
ACA32,33 GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-C0016B0 |
ACA32,33 GRAY,TRIM1# |
2 | ||
| 90467-C0016E1 |
ACA32,33 SAND BEIGE,TRIM4# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-C0016B0 |
ACA32,33 GRAY,TRIM1# |
2 | ||
| 90467-C0016E1 |
ACA32,33 SAND BEIGE,TRIM4# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R020 |
ACA3# |
1 | ||
| 63343-0R020 |
ACA3# |
1 | ||
| 64233C - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64233-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64233-0R020E0 |
ACA3# SAND BEIGE,TRIM4# |
1 | ||
| 64234C - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64234-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64234-0R020E0 |
ACA3# SAND BEIGE,TRIM4# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66413-42120 |
ACA32,37 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66413-42120 |
ACA32,37 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66414-42120 |
ACA32,37 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66414-42120 |
ACA32,37 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66415-42090 |
ACA32,37 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66415-42090 |
ACA32,37 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66423-42120 |
ACA32,37 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66423-42120 |
ACA32,37 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66424-42100 |
ACA32,37 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66424-42100 |
ACA32,37 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-42070 |
ACA32,37 |
1 | ||
| 66425-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-42070 |
ACA32,37 |
1 | ||
| 66425-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||

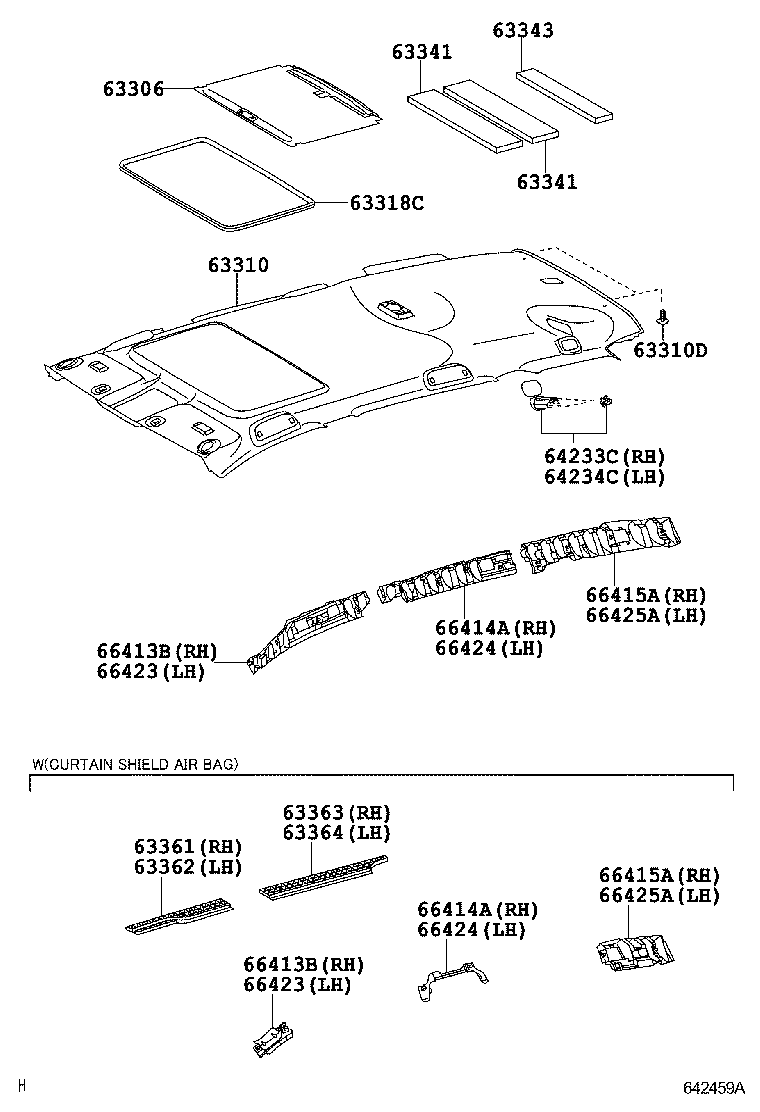

(0903- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0R020E0 |
ACA32,33 SAND BEIGE,TRIM4# |
1 | ||
| 63306-0R020B0 |
ACA32,33 GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0R060E0 |
ACA32,33 SAND BEIGE,TRIM4# |
1 | ||
| 63310-0R060B0 |
ACA32,33 GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-C0016B0 |
ACA32,33 GRAY,TRIM1# |
2 | ||
| 90467-C0016E1 |
ACA32,33 SAND BEIGE,TRIM4# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-0R040B0 |
ACA32,33 L=2374,GRAY,TRIM1# |
1 | ||
| 63318-0R040B0 |
ACA32 L=2374,SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1# |
1 | ||
| 63318-0R040E0 |
ACA32 L=2374,SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4# |
1 | ||
| 63318-0R040E0 |
ACA32,33 L=2374,SAND BEIGE,TRIM4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0R020 |
ACA32,33 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0R020 |
ACA3# |
1 | ||
| 63343-0R020 |
ACA3# |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-0R030 |
ACA32 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-0R030 |
ACA32 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63363-0R030 |
ACA32 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63364-0R030 |
ACA32 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 64233C - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64233-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64233-0R020E0 |
ACA3# SAND BEIGE,TRIM4# |
1 | ||
| 64234C - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64234-0R020B0 |
ACA3# GRAY,TRIM1# |
1 | ||
| 64234-0R020E0 |
ACA3# SAND BEIGE,TRIM4# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66413-42120 |
ACA32,37 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66413-42120 |
ACA32,37 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66414-42120 |
ACA32,37 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66414-42120 |
ACA32,37 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66415-42090 |
ACA32,37 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66415-42090 |
ACA32,37 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66423-42120 |
ACA32,37 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66423-42120 |
ACA32,37 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66424-42100 |
ACA32,37 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66424-42100 |
ACA32,37 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-42070 |
ACA32,37 |
1 | ||
| 66425-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-42070 |
ACA32,37 |
1 | ||
| 66425-0R040 |
ACA32,37 SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE) |
1 | ||
