ACA32L-ANMXKC (2011)
Toyota Rav4 (China)
Production
Aug 2011
-
Jul 2013
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0903- )

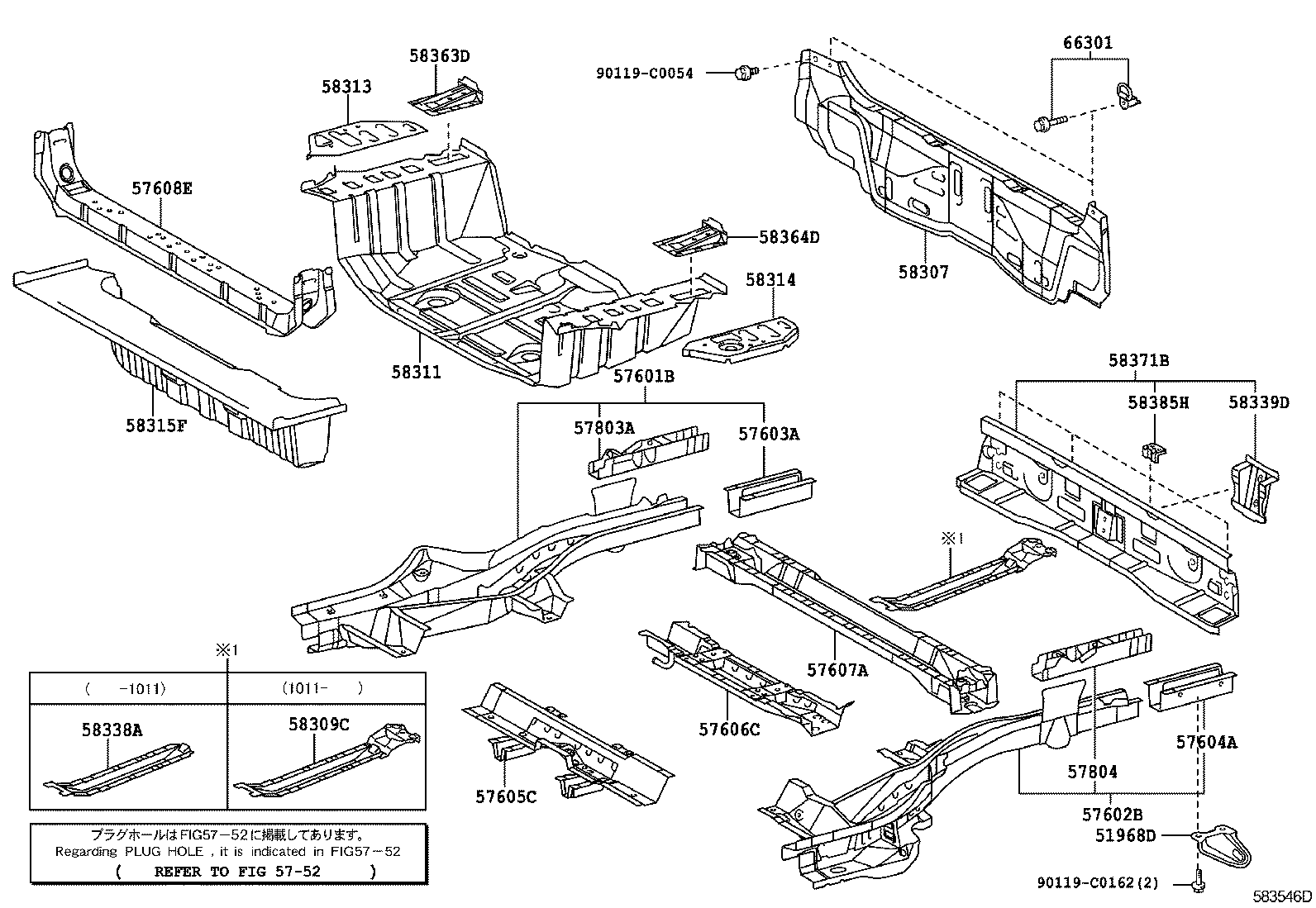

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-0R020 |
ACA3# |
1 | ||
| 51968-0R020 |
ACA3# |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-0R902 |
ACA3# |
1 | ||
| 57601-0R903 |
ACA3# |
1 | ||
| 57601-0R904 |
ACA3# |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-0R902 |
ACA3# |
1 | ||
| 57602-0R903 |
ACA3# |
1 | ||
| 57602-0R902 |
ACA3# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-0R020 |
ACA3# |
1 | ||
| 57603-0R021 |
ACA3# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-0R020 |
ACA3# |
1 | ||
| 57604-0R020 |
ACA3# |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-0R020 |
ACA3# |
1 | ||
| 57605-0R020 |
ACA3# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0R020 |
ACA3# |
1 | ||
| 57606-0R020 |
ACA3# |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-0R020 |
ACA3# |
1 | ||
| 57607-0R020 |
ACA3# |
1 | ||
| 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH | ||||
| 57608-0R030 |
ACA3# |
1 | ||
| 57608-0R030 |
ACA3# |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-0R020 |
ACA3# |
1 | ||
| 57803-0R020 |
ACA3# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-0R020 |
ACA3# |
1 | ||
| 57804-0R020 |
ACA3# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0R020 |
ACA3# |
1 | ||
| 58307-0R020 |
ACA3# |
1 | ||
| 58307-0R021 |
ACA3# |
1 | ||
| 58309C - GUARD SUB-ASSY, REAR VALANCE PANEL | ||||
| 58309-0R030 |
ACA3# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0R020 |
ACA3# |
1 | ||
| 58311-0R020 |
ACA3# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-0R020 |
ACA3# |
1 | ||
| 58313-0R020 |
ACA3# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-0R020 |
ACA3# |
1 | ||
| 58314-0R020 |
ACA3# |
1 | ||
| 58315F - EXTENSION, REAR FLOOR SIDE PANEL, FRONT | ||||
| 58315-0R020 |
ACA3# |
1 | ||
| 58315-0R020 |
ACA3# |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-0R020 |
ACA3# |
1 | ||
| 58339D - BRACKET, JACK UP | ||||
| 58339-0R021 |
ACA3# |
1 | ||
| 58339-0R020 |
ACA3# |
1 | ||
| 58363D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH | ||||
| 58363-0R020 |
ACA3# |
1 | ||
| 58363-0R020 |
ACA3# |
1 | ||
| 58364D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH | ||||
| 58364-0R020 |
ACA3# |
1 | ||
| 58364-0R020 |
ACA3# |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58302-0R020 |
ACA3# |
1 | ||
| 58302-0R021 |
ACA3# |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-0R020 |
ACA3# |
4 | ||
| 58385-0R020 |
ACA3# |
4 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-42010 |
ACA3# |
2 | ||
| 66301-42010 |
ACA3# |
2 | ||
| Common parts | ||||
| 90119-C0054 | ||||
| 90119-C0162 | ||||
| Linked diagrams | ||||
| 5752 | ||||
