ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

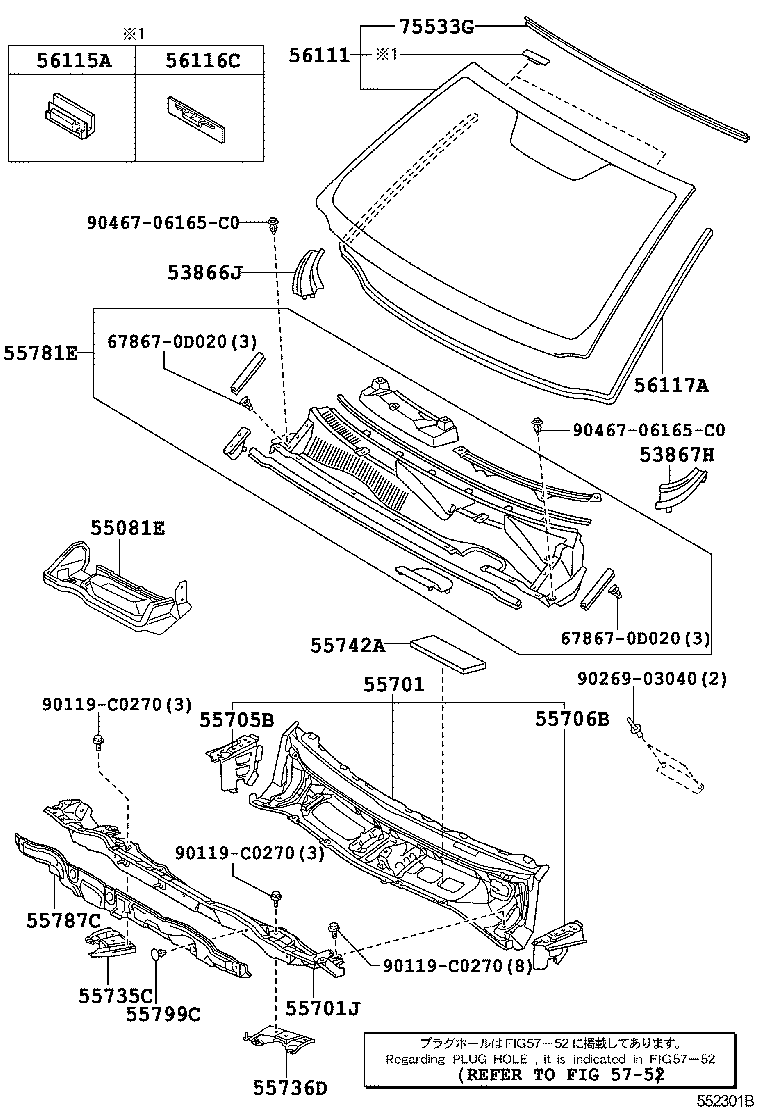

Click highlighted areas on diagram

diagram 53866J 53867H 55081E 55701 55701J 55705B 55706B 55735C 55736D 55742A 55781E 55787C 55799C 56111 56115A 56116C 56117A 5752 678670D020 678670D020 75533G 90119C0270 90119C0270 90119C0270 9026903040 9046706165C0 9046706165C0
Part # Description Qty Price
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0R020

ACA3#

 1
53866-0R020

ACA3#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0R020

ACA3#

 1
53867-0R020

ACA3#

 1
55081E - HOUSING SUB-ASSY, COWL VENTILATOR
55081-0R020

ACA3#

 1
55081-0R020

ACA3#

 1
55701 - PANEL SUB-ASSY, COWL
55700-0R020

ACA3#

 1
55700-0R020

ACA3#

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-0R020

ACA3#

 1
55701-0R020

ACA3#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0R020

ACA3#

 1
55705-0R020

ACA3#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0R020

ACA3#

 1
55706-0R020

ACA3#

 1
55735C - REINFORCEMENT, COWL BODY MOUNTING, RH
55735-0R020

ACA3#

 1
55735-0R020

ACA3#

 1
55736D - REINFORCEMENT, COWL BODY MOUNTING, LH
55736-0R020

ACA3#

 1
55736-0R020

ACA3#

 1
55742A - SHEET, COWL TOP INSULATOR
55742-0R020

ACA3#

 1
55742-0R020

ACA3#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0R020

ACA3#

 1
55708-0R020

ACA3#

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-0R020

ACA3#

 1
55787-0R020

ACA3#

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09050

ACA3#

 5
90467-09050

ACA3#

 5
90467-C0006

ACA3#

 5
56111 - GLASS, WINDSHIELD
56101-0R040

ACA3#

*LAM,T=4.76,GREEN,MARK=FY

 1
56101-0R030

ACA3#

*LAM,T=4.76,GREEN,MARK=ASAHI

 1
56101-0R030

ACA3#

*LAM,T=4.76,GREEN,MARK=ASAHI

 1
56101-0R040

ACA3#

*LAM,T=4.76,GREEN,MARK=FY

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ACA3#

 2
56115-30100

ACA3#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ACA3#

 2
56116-22050

ACA3#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0R020

ACA3#

L=2834

 1
56117-0R020

ACA3#

L=2834

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-0R020

ACA3#

GLASS MARK=FY

 1
75531-0R010

ACA3#

GLASS MARK=ASAHI

 1
75531-0R010

ACA3#

GLASS MARK=ASAHI

 1
75531-0R020

ACA3#

GLASS MARK=FY

 1
Common parts
67867-0D020
90119-C0270
90269-03040
90467-06165C0
Linked diagrams
5752
