ACA32L-ANMXKC (2011)
Toyota Rav4 (China)
Production
Aug 2011
-
Jul 2013
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0903- )

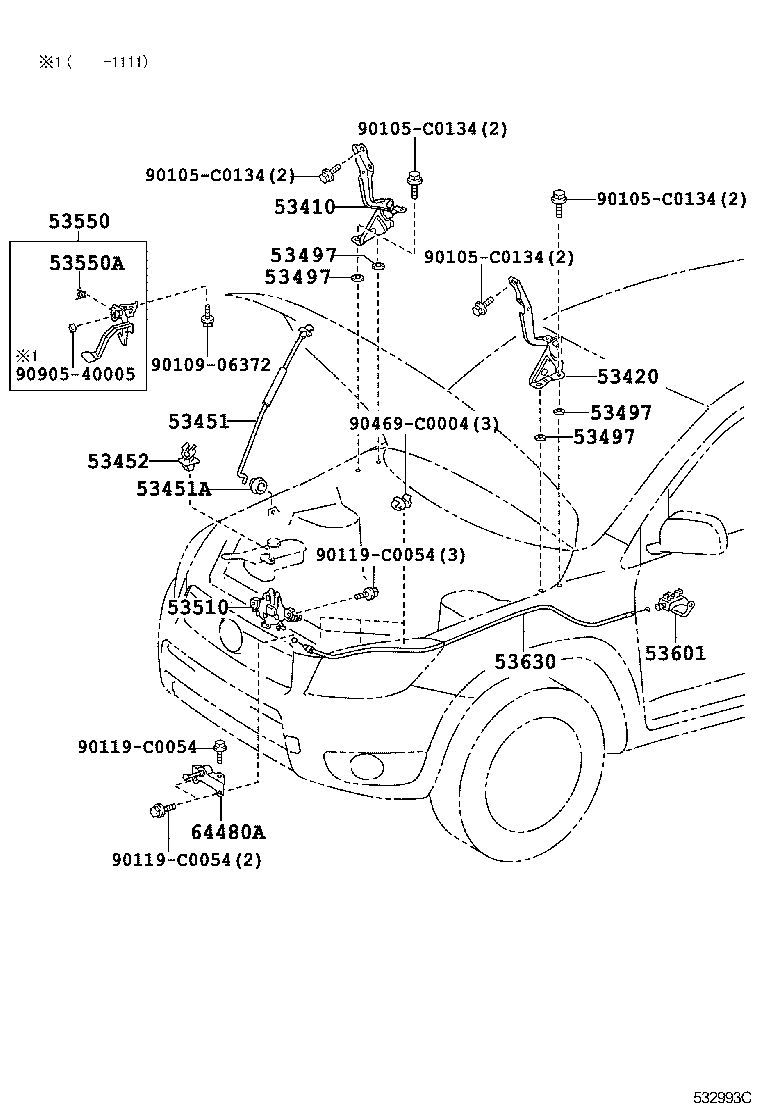

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-0R060 |
ACA3# |
1 | ||
| 53410-0R060 |
ACA3# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-0R060 |
ACA3# |
1 | ||
| 53420-0R060 |
ACA3# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-0R020 |
ACA3# |
1 | ||
| 53440-0R020 |
ACA3# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 53454-0R020 |
ACA3# |
1 | ||
| 53454-0R020 |
ACA3# |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-0R020 |
ACA3# |
1 | ||
| 53452-0R020 |
ACA3# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-42010 |
ACA3# T=0.5 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53497-20070 |
ACA3# T=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-0R020 |
ACA3# |
1 | ||
| 53510-0R020 |
ACA3# |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-0R020 |
ACA3# |
1 | ||
| 53550-0R020 |
ACA3# |
1 | ||
| 53550A - SPRING, TORSION(FOR HOOD LOCK HOOK) | ||||
| 90508-18102 |
ACA3# |
1 | ||
| 90508-18102 |
ACA3# |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D010B4 |
ACA3# GRAY,TRIM1# |
1 | ||
| 53601-0D010B2 |
ACA3# DK.GRAY,TRIM1# |
1 | ||
| 53601-0D010E4 |
ACA3# SAND BEIGE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-0R020 |
ACA3# |
1 | ||
| 53630-0R020 |
ACA3# |
1 | ||
| 64480A - STRIKER ASSY, ENGINE HOOD LOCK | ||||
| 64480-0R020 |
ACA3# |
1 | ||
| 64480-0R020 |
ACA3# |
1 | ||
| Common parts | ||||
| 90105-C0134 | ||||
| 90109-06372 | ||||
| 90119-C0054 | ||||
| 90469-C0004 | ||||
| 90905-40005 | ||||
