ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )5F

Click highlighted areas on diagram

E352,E359F

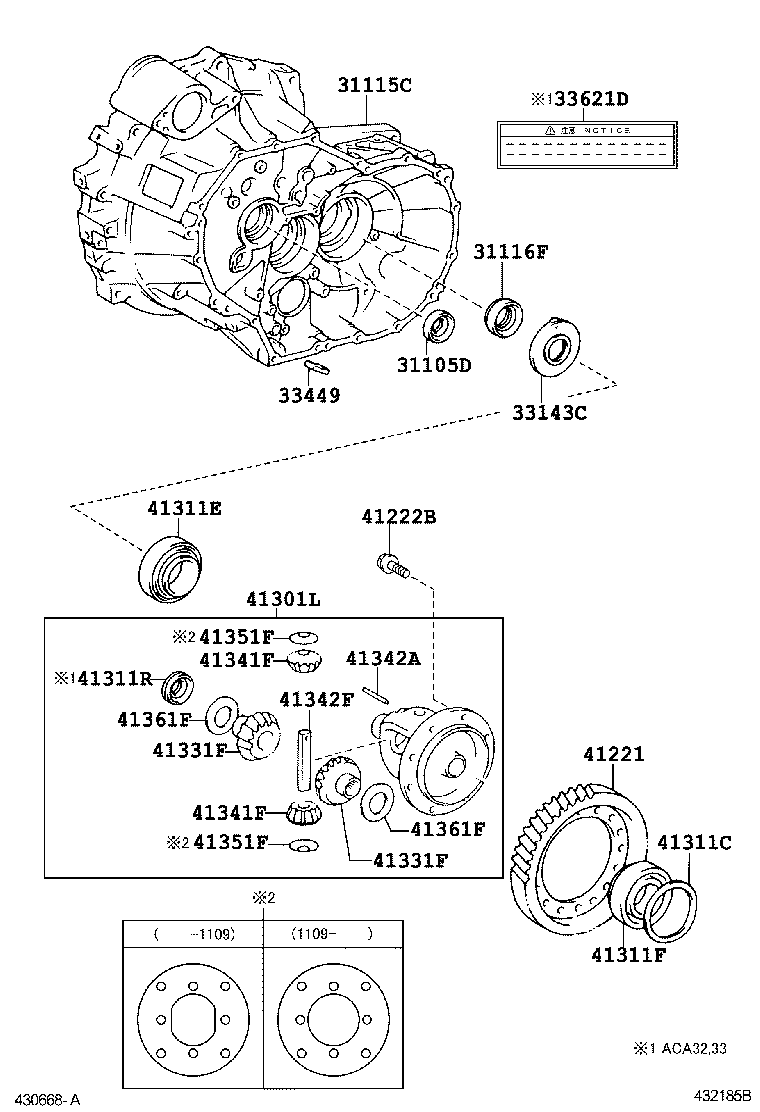

diagram 31105D 31115C 31116F 33143C 33449 33621D 41221 41222B 41301L 41311C 41311E 41311F 41311R 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30017

ACA3#..5F

 1
90311-30017

ACA3#..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-42041

ACA32,33..5F

 1
31116F - SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER)
90311-55004

ACA32,33..5F

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-28010

ACA3#..5F

 1
33143-28010

ACA3#..5F

 1
33449 - MAGNET, TRANSMISSION
33449-20010

ACA3#..5F

 1
33449-20010

ACA3#..5F

 1
33621D - LABEL, TRANSAXLE OIL INFORMATION
33621-42020

ACA32,33..5F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-42090

ACA3#..5F

 1
41221-42090

ACA3#..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319

ACA3#..5F

 16
90105-12319

ACA3#..5F

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-42100

ACA32,33..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56056

ACA3#..5F

T=2.05,MARK 1

 1
90564-56059

ACA3#..5F

T=2.20,MARK 4

 1
90564-56060

ACA3#..5F

T=2.25,MARK 5

 1
90564-56062

ACA3#..5F

T=2.35,MARK 7

 1
90564-56070

ACA3#..5F

T=2.75,MARK F

 1
90564-56067

ACA3#..5F

T=2.60,MARK C

 1
90564-56066

ACA3#..5F

T=2.55,MARK B

 1
90564-56058

ACA3#..5F

T=2.15,MARK 3

 1
90564-56069

ACA3#..5F

T=2.70,MARK E

 1
90564-56057

ACA3#..5F

T=2.10,MARK 2

 1
90564-56063

ACA3#..5F

T=2.40,MARK 8

 1
90564-56064

ACA3#..5F

T=2.45,MARK 9

 1
90564-56055

ACA3#..5F

T=2.00,MARK 0

 1
90564-56068

ACA3#..5F

T=2.65,MARK D

 1
90564-56061

ACA3#..5F

T=2.30,MARK 6

 1
90564-56071

ACA3#..5F

T=2.80,MARK G

 1
90564-56065

ACA3#..5F

T=2.50,MARK A

 1
90564-56072

ACA3#..5F

T=2.85,MARK H

 1
90564-56093

ACA3#..5F

T=2.10,MARK 2

 1
90564-56092

ACA3#..5F

T=2.05,MARK 1

 1
90564-56097

ACA3#..5F

T=2.30,MARK 6

 1
90564-56096

ACA3#..5F

T=2.25,MARK 5

 1
90564-56091

ACA3#..5F

T=2.00,MARK 0

 1
90564-56098

ACA3#..5F

T=2.35,MARK 7

 1
90564-56095

ACA3#..5F

T=2.20,MARK 4

 1
90564-56100

ACA3#..5F

T=2.45,MARK 9

 1
90564-56106

ACA3#..5F

T=2.75,MARK F

 1
90564-56108

ACA3#..5F

T=2.85,MARK H

 1
90564-56104

ACA3#..5F

T=2.65,MARK D

 1
90564-56101

ACA3#..5F

T=2.50,MARK A

 1
90564-56103

ACA3#..5F

T=2.60,MARK C

 1
90564-56099

ACA3#..5F

T=2.40,MARK 8

 1
90564-56105

ACA3#..5F

T=2.70,MARK E

 1
90564-56107

ACA3#..5F

T=2.80,MARK G

 1
90564-56102

ACA3#..5F

T=2.55,MARK B

 1
90564-56094

ACA3#..5F

T=2.15,MARK 3

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57001

ACA3#..5F

 1
90366-57001

ACA3#..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50072

ACA3#..5F

 1
90366-50072

ACA3#..5F

 1
41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
90316-34001

ACA32,33

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12140

ACA3#..5F

 2
41331-12140

ACA3#..5F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12140

ACA3#..5F

 2
41331-12140

ACA3#..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12090

ACA3#..5F

 2
41341-12090

ACA3#..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12090

ACA3#..5F

 2
41341-12090

ACA3#..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ACA3#

 1
90250-06058

ACA3#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28010

ACA3#..5F

 1
41342-28010

ACA3#..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

ACA3#..5F

 2
41351-30060

ACA3#..5F

 2
41351-28010

ACA3#..5F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

ACA3#..5F

 2
41351-30060

ACA3#..5F

 2
41351-28010

ACA3#..5F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28250

ACA3#..5F

T=1.2,MARK 3

 2
41361-28230

ACA3#..5F

T=1.0,MARK 1

 2
41361-28240

ACA3#..5F

T=1.1,MARK 2

 2
41361-28260

ACA3#..5F

T=1.3,MARK 4

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28250

ACA3#..5F

T=1.2,MARK 3

 2
41361-28230

ACA3#..5F

T=1.0,MARK 1

 2
41361-28240

ACA3#..5F

T=1.1,MARK 2

 2
41361-28260

ACA3#..5F

T=1.3,MARK 4

 2
