ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )5F

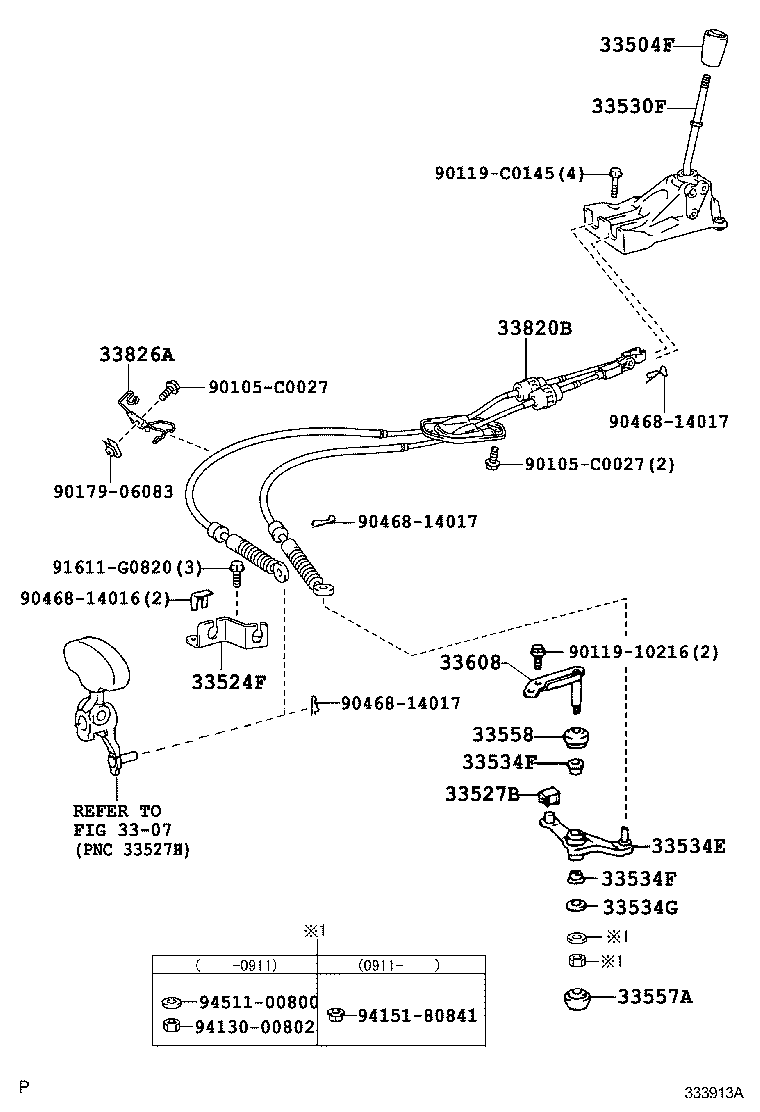

Click highlighted areas on diagram

diagram 3307 33504F 33524F 33527B 33530F 33534E 33534F 33534F 33534G 33557A 33558 33608 33820B 33826A 90105C0027 90105C0027 9011910216 90119C0145 9017906083 9046814016 9046814017 9046814017 9046814017 91611G0820 9413000802 9415180841 9451100800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-42090B0

ACA32..5F

RADIATOR GRILLE(*CR & SILVER PAINT),DK.GRAY,TRIM1#,4#

 1
33504-33050B1

ACA32,37..5F

DK.GRAY,TRIM1#,4#

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-28020

ACA3#..5F

 1
33524-28020

ACA3#..5F

 1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010

ACA3#..5F

 1
33557-33010

ACA3#..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0R010

ACA3#..5F

 1
33530-42080

ACA3#..5F

(J)

 1
33530-0R010

ACA3#..5F

(L)

 1
33534E - CRANK, SELECTING BELL, NO.2
33534-28090

ACA3#..5F

 1
33534-28090

ACA3#..5F

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

ACA3#..5F

 2
90386-12022

ACA3#..5F

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

ACA3#..5F

 2
90386-12022

ACA3#..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

ACA3#..5F

 1
90201-08028

ACA3#..5F

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

ACA3#..5F

 1
33557-32010

ACA3#..5F

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

ACA3#..5F

 1
33558-10030

ACA3#..5F

 1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-12031

ACA3#..5F

 1
33608-12031

ACA3#..5F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0R050

ACA3#..5F

 1
33820-0R050

ACA3#..5F

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-44061

ACA3#..5F

 1
33826-44061

ACA3#..5F

 1
Common parts
90105-C0027
90119-10216
90119-C0145
90179-06083
90468-14016
90468-14017
91611-G0820
94130-00802
94151-80841
94511-00800
