ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )5F

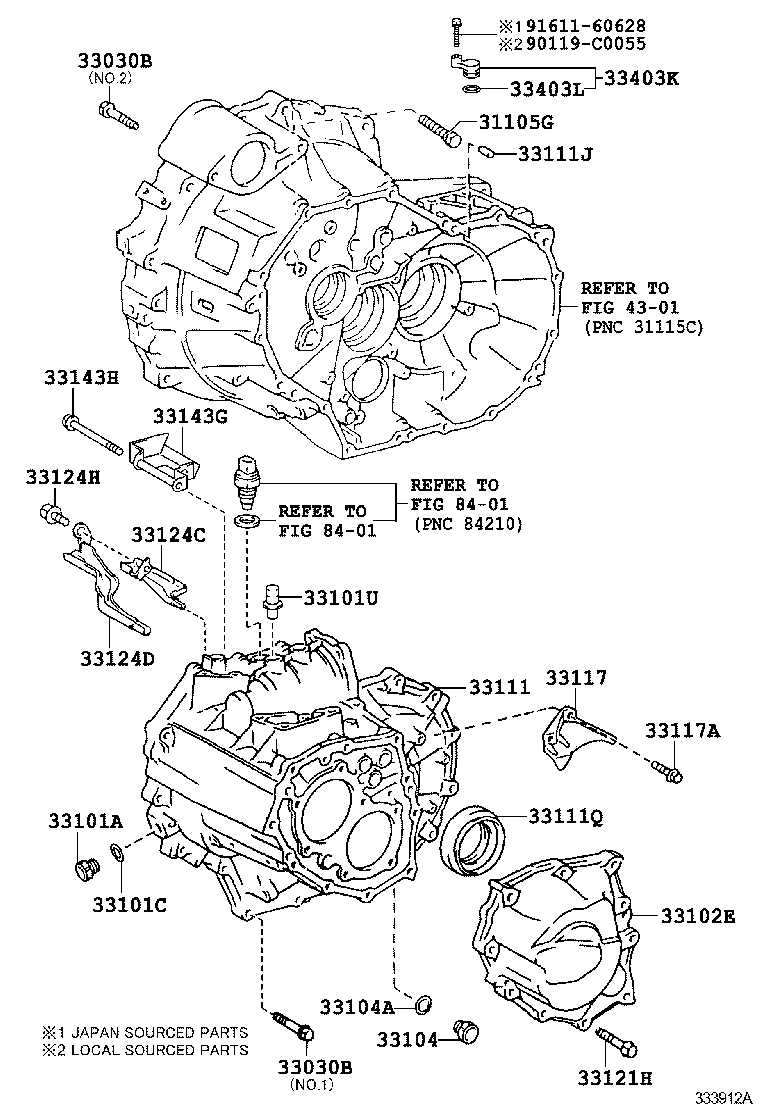

Click highlighted areas on diagram

E352,E359F

diagram 31105G 33030B 33030B 33101A 33101C 33101U 33102E 33104 33104A 33111 33111J 33111Q 33117 33117A 33121H 33124C 33124D 33124H 33143G 33143H 33403K 33403L 4301 8401 8401 90119C0055 9161160628
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91512-61065

ACA3#..5F

*10-1.25PX65-30,(J)

 1
90105-C0139

ACA3#..5F

*12-1.25PX74.5-25,(L)

 1
91512-61060

ACA3#..5F

*10-1.25PX60-30,(J)

 2
90105-C0139

ACA3#..5F

*12-1.25PX74.5-25

 1
90119-C0165

ACA3#..5F

*12-1.25PX60-30,(L)

 2
90105-C0146

ACA3#..5F

*10-1.25PX60-30

 2
90119-12252

ACA3#..5F

*12-1.25PX60-30,(J)

 2
90105-C0032

ACA3#..5F

*10-1.25PX65-30,(L)

 1
90105-12147

ACA3#..5F

*12-1.25PX74.5-25,(J)

 1
90105-C0146

ACA3#..5F

*10-1.25PX60-30,(L)

 2
90105-C0032

ACA3#..5F

*10-1.25PX65-30,(L)

 1
91512-61065

ACA3#..5F

*10-1.25PX65-30,(J)

 1
90119-C0165

ACA3#..5F

*12-1.25PX60-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

ACA3#..5F

*8-1.25PX45-27.5,NO.1 & NO.2

 17
90105-08126

ACA3#..5F

*8-1.25PX45-27.5,NO.2

 3
90105-08086

ACA3#..5F

*8-1.25PX45-27.5,NO.1

 14
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

ACA3#..5F

*8-1.25PX45-27.5,NO.1 & NO.2

 17
90105-08126

ACA3#..5F

*8-1.25PX45-27.5,NO.2

 3
90105-08086

ACA3#..5F

*8-1.25PX45-27.5,NO.1

 14
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

ACA3#..5F

 1
90341-18033

ACA3#..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ACA3#..5F

 1
90430-18008

ACA3#..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

ACA3#..5F

 1
90930-03133

ACA3#..5F

 1
33102E - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-33012

ACA3#..5F

 1
33102-33012

ACA3#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ACA3#..5F

 1
90341-18006

ACA3#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ACA3#..5F

 1
90430-18008

ACA3#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-42040

ACA3#..5F

 1
33101-42040

ACA3#..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ACA3#..5F

L=23,OD=8

 6
90250-08054

ACA3#..5F

L=23,OD=8

 6
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-50035

ACA3#..5F

 1
90311-50047

ACA3#..5F

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33107-20010

ACA3#..5F

 1
33107-20010

ACA3#..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
91641-H0820

ACA3#..5F

(J)

 2
90105-C0006

ACA3#..5F

(L)

 2
91641-H0820

ACA3#..5F

(J)

 2
90105-C0006

ACA3#..5F

(L)

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08273

ACA3#..5F

 10
90105-08273

ACA3#..5F

 10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-28050

ACA3#..5F

 1
33124-28050

ACA3#..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-28060

ACA3#..5F

 1
33124-28060

ACA3#..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08830

ACA3#..5F

 2
90119-08830

ACA3#..5F

 2
33143G - BAFFLE, TRANSMISSION OIL
33143-42010

ACA3#..5F

 1
33143-42010

ACA3#..5F

 1
33143H - BOLT(FOR TRANSMISSION OIL BAFFLE)
90119-08439

ACA3#..5F

 1
90119-08439

ACA3#..5F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-06010

ACA3#..5F

 1
33403-20230

ACA3#..5F

(J)

 1
33403-06010

ACA3#..5F

(L)

 1
33403L - RING, O
96711-24018

ACA3#..5F

 1
96711-24018

ACA3#..5F

 1
Common parts
90119-C0055
91611-60628
Linked diagrams
4301
8401
