ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0903- )5F

Click highlighted areas on diagram

diagram 31301 31301B 31301B 31301B 31301C 31301C 31301F 31301P 31321 31324A 31353 31394A 31394A 31395A 31453A 31453B 55105D 55107A 55198C 8401 8401 8401 9010110055 9011906558 9011908C42 9017810029 9017910088 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-42090

ACA32,37..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 3
90541-06036

ACA3#..5F

 3
90541-06036

ACA32,37..5F

 2
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC,W/VSC)

 3
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 3
90541-06036

ACA3#..5F

 3
90541-06036

ACA32,37..5F

 2
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC,W/VSC)

 3
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 3
90541-06036

ACA3#..5F

 3
90541-06036

ACA32,37..5F

 2
90541-06036

ACA32..5F

CRUISE CONTROL-WITH(ELECTRIC,W/VSC)

 3
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACA3#..5F

 2
90386-13015

ACA3#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACA3#..5F

 2
90386-13015

ACA3#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10039

ACA3#..5F

 1
90101-10039

ACA3#..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

ACA3#..5F

 1
90389-06055

ACA3#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

ACA3#..5F

 1
31321-42010

ACA3#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

ACA3#..5F

 1
90387-10003

ACA3#..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

ACA3#..5F

 1
31353-26010

ACA3#..5F

 1
31394A - SPRING, PEDAL W/HOOK
31394-12070

ACA32,37..5F

NO.1

 1
31394A - SPRING, PEDAL W/HOOK
31394-12070

ACA32,37..5F

NO.1

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

ACA3#..5F

L=36.5

 1
90249-08256

ACA3#..5F

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

ACA3#..5F

 1
90386-08033

ACA3#..5F

 1
55105D - BRACKET SUB-ASSY, CLUTCH PEDAL
55105-42010

ACA3#..5F

 1
55105-42010

ACA3#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-42091

ACA3#..5F

 1
55107-42091

ACA3#..5F

 1
55198C - HOLDER, BRAKE AWAY MOUNTING BOLT
55198-13010

ACA3#..5F

 1
55198-13010

ACA3#..5F

 1
Common parts
90101-10055
90119-06558
90119-08C42
90178-10029
90179-10088
90468-16142
Linked diagrams
8401

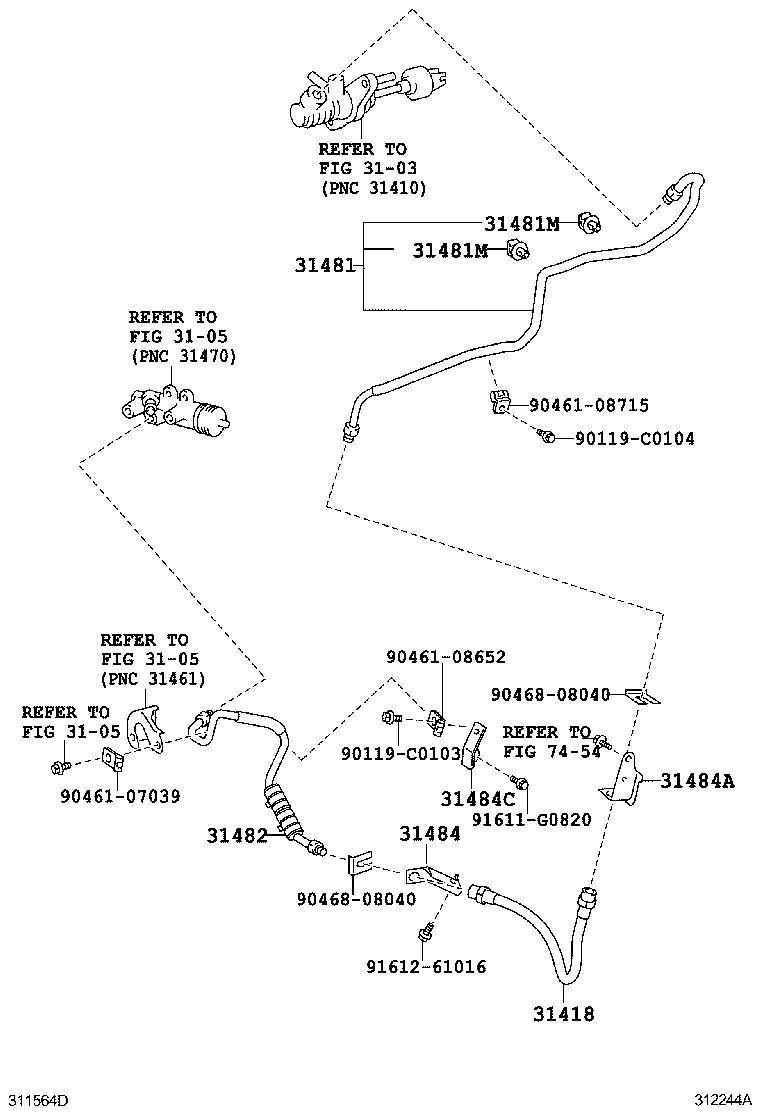

ILLUST NO. 2 OF 2(0903- )ACA32,37..5F

Click highlighted areas on diagram

diagram 3103 3105 3105 3105 31418 31481 31481M 31481M 31482 31484 31484A 31484C 7454 90119C0103 90119C0104 9046107039 9046108652 9046108715 9046808040 9046808040 91611G0820 9161261016
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-C2034

ACA3#..5F

 1
90947-C2034

ACA3#..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0R010

ACA3#..5F

 1
31481-0R010

ACA3#..5F

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C74

ACA3#..5F

 2
90949-01C74

ACA3#..5F

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C74

ACA3#..5F

 2
90949-01C74

ACA3#..5F

 2
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0R010

ACA32,37..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-0R020

ACA3#..5F

 1
31484-0R020

ACA3#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-0R010

ACA3#..5F

 1
31484-0R010

ACA3#..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320

ACA3#..5F

 1
31484-20320

ACA3#..5F

 1
Common parts
90119-C0103
90119-C0104
90461-07039
90461-08652
90461-08715
90468-08040
91611-G0820
91612-61016
Linked diagrams
3103
3105
7454
