ACA32L-ANMXKC (2011)

Toyota Rav4 (China)

Production Aug 2011 - Jul 2013
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

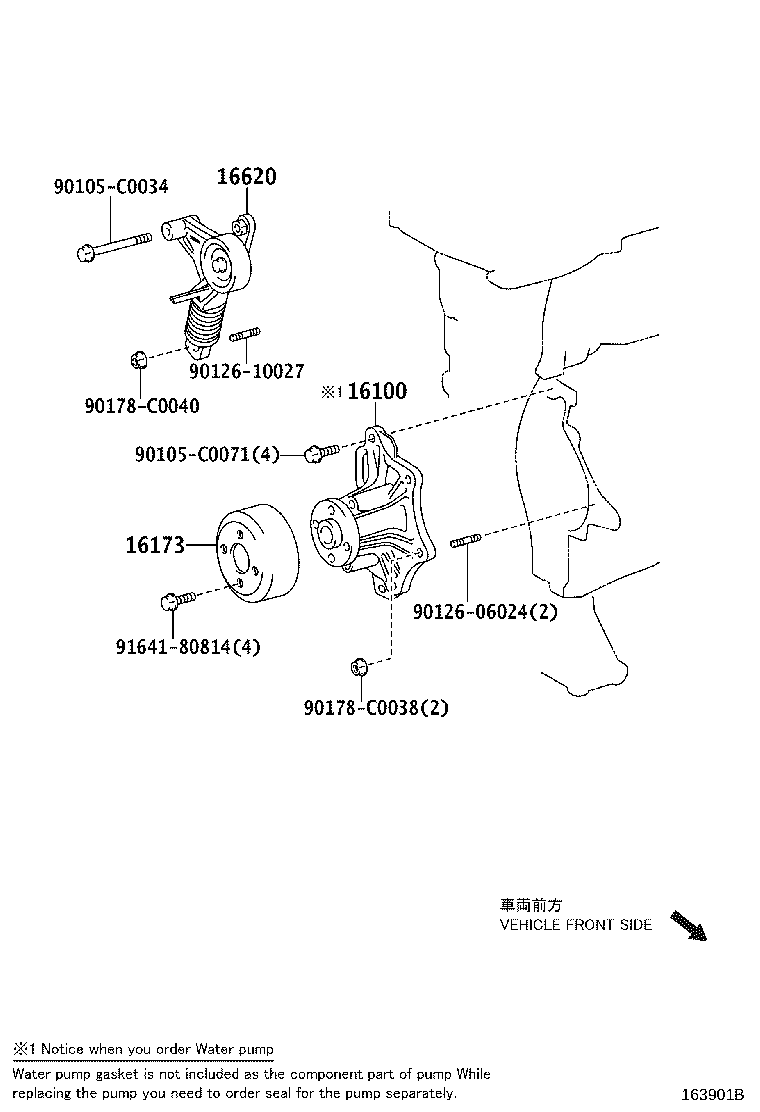

Click highlighted areas on diagram

diagram 16100 16173 16620 90105C0034 90105C0071 9012606024 9012610027 90178C0038 90178C0040 9164180814
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-0H040

1AZFE,2AZFE..ACA3#

 1
16100-0H040

1AZFE,2AZFE..ACA3#

 1
16173 - PULLEY, WATER PUMP
16173-0H040

1AZFE,2AZFE..ACA3#

 1
16173-0H040

1AZFE,2AZFE..ACA3#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0H020

1AZFE,2AZFE..ACA3#

 1
16620-0H021

1AZFE,2AZFE..ACA3#

 1
16620-0H020

1AZFE,2AZFE..ACA3#

 1
Common parts
90105-C0034
90105-C0071
90126-06024
90126-10027
90178-C0038
90178-C0040
91641-80814
