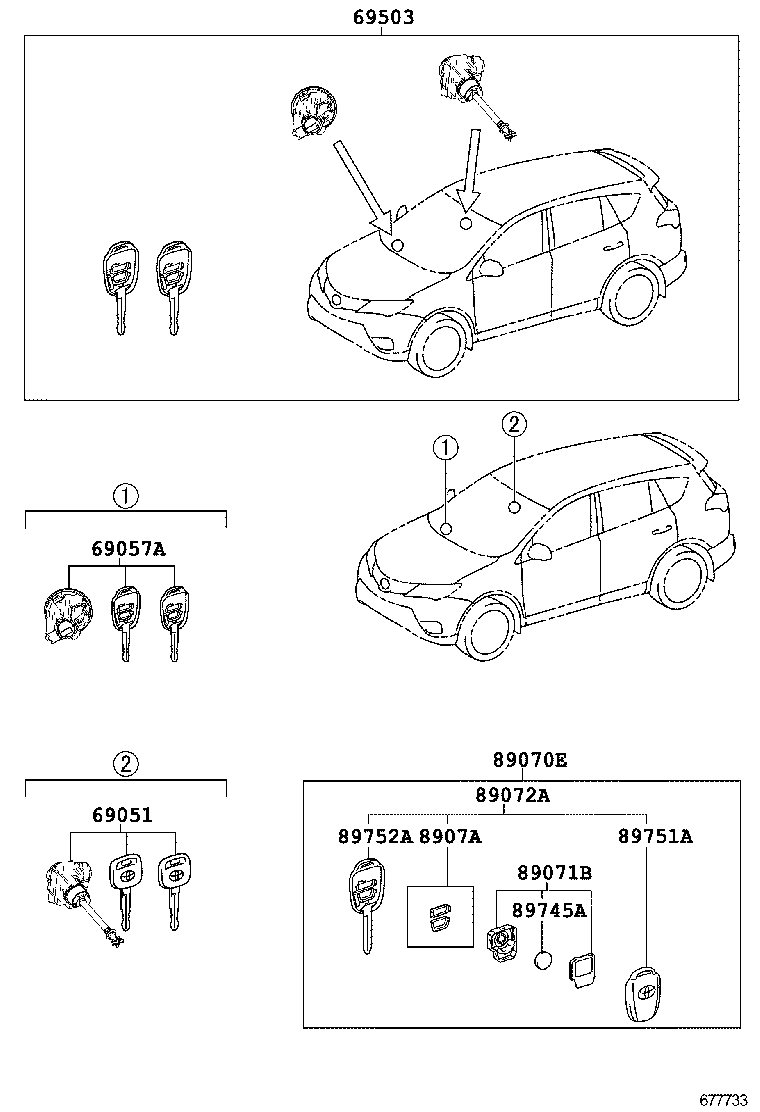

ZSA42R-ANXGKQ (2012)
Toyota Rav4
(1212-1510)ARL
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-42220 |
ASA44,ZSA42..X..ARL |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-42330 |
ASA4#,ZSA4#..X |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42650 |
ASA44,ZSA42..G..ARL |
1 | ||
| 69005-42660 |
ASA44,ZSA42..X..ARL |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-42880 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
1 | ||
| 89070-42A90 |
ASA44,ZSA42..X..ARL |
1 | ||
| 89070-42880 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
1 | ||
| 89070-42881 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
1 | ||
| 89070-42881 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
1 | ||
| 89070-42D60 |
ASA44,ZSA42..X..ARL |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-13010 |
ASA44,ZSA42..X..ARL |
2 | ||
| 89071-42170 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
2 | ||
| 89071-42170 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
2 | ||
| 89071-42340 |
ASA44,ZSA42..X..ARL |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-42400 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
1 | ||
| 89072-42400 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
1 | ||
| 89072-42470 |
ASA44,ZSA42..X..ARL |
1 | ||
| 89072-42400 |
ASA44,ZSA42..X..ARL |
1 | ||
| 89072-42520 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
1 | ||
| 89072-42520 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
ASA4#,ZSA4#..X |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
ASA4#,ZSA4#..X |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42100 |
ASA44,ZSA42..X..ARL |
2 | ||
| 89751-42090 |
ZSA42..X..ARL SOUTH AFRICA SPEC |
2 | ||
| 89751-42090 |
ASA44,ZSA42..X..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC |
2 | ||
| 89751-42090 |
ASA44,ZSA42..X..ARL |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-42050 |
ASA4#,ZSA4#..X |
1 | ||
(1212- )RHD
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42650 |
ASA44,ZSA42..G..ARL |
1 | ||
| 69005-42660 |
ASA44,ZSA42..X..ARL |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-33100 |
ASA4#,ZSA4#..G MASTER KEY,W(*68) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-33090 |
ASA4#,ZSA4#..G MASTER KEY,W(*68) |
2 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-45010 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
1 | ||
| 89745-50020 |
ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44..G..ARL;ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-45010 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
1 | ||
| 89745-50020 |
ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44..G..ARL;ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 89745-50020 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
1 | ||
| 8975B - COVER, TRANSMITTER BATTERY HOUSING | ||||
| 8975B-33010 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL BERMUDA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL JAMAICA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44..G..ARL;ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 8975B-33010 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-12350 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
2 | ||
| 89904-42250 |
ASA44,ZSA42..G..ARL L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL BERMUDA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL JAMAICA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42350 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44..G..ARL;ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-12350 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
2 | ||
| 89904-42250 |
ASA44,ZSA42..G..ARL L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL BERMUDA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL JAMAICA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&L3 PACKAGE&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42350 |
ASA44,ZSA42..G..ARL TYPE A:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
| 89904-42170 |
ASA44,ZSA42..G..ARL JAMAICA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL TRINIDAD-TOBAGO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44..G..ARL;ZSA42..A..G..ARL KENYA,ZIMBABWE,MOZAMBIQUE,MAURITIUS SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42180 |
ASA44,ZSA42..G..ARL BERMUDA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE B:REFER ILLUST. |
2 | ||
| 89904-42251 |
ASA44,ZSA42..G..ARL POWER DOOR LOCK-WITH(AUTO LOCK(SPEED) & POWER BACK DOOR),TYPE A:REFER ILLUST. |
2 | ||
