ZSA42R-ANFMKQ (2015)

Toyota Rav4

Production Oct 2015 - Dec 2018
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ZSA4#..A

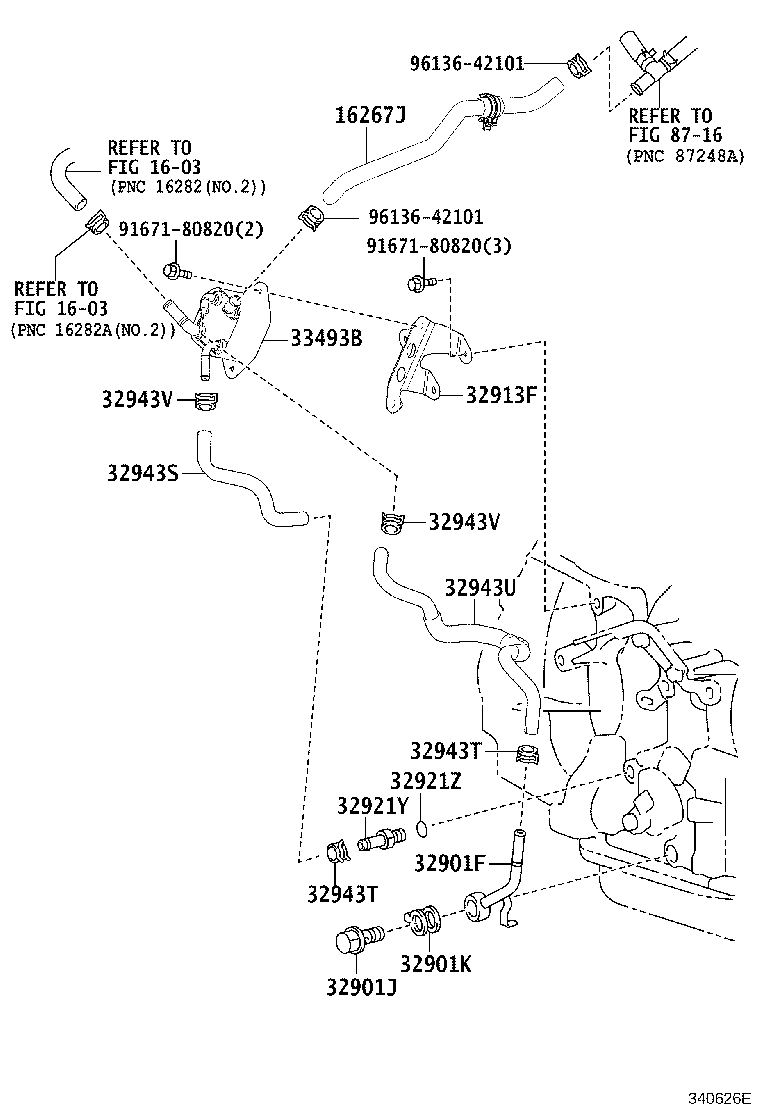

Click highlighted areas on diagram

K114,K114F

diagram 1603 1603 16267J 32901F 32901J 32901K 32913F 32921Y 32921Z 32943S 32943T 32943T 32943U 32943V 32943V 33493B 8716 9167180820 9167180820 9613642101 9613642101
Part # Description Qty Price
16267J - HOSE, WATER BY-PASS, NO.3
16267-37040

3ZRFE..ZSA4#..A

 1
16267-37080

3ZRFE..ZSA4#..A

 1
32901F - ELBOW SUB-ASSY, OIL COOLER
32901-28010

ZSA4#..A

 1
32901J - BOLT, UNION(FOR OIL COOLER)
90401-14003

ZSA4#..A

 1
32901K - GASKET(FOR OIL COOLER UNION)
90430-14012

ZSA4#..A

 1
32913F - BRACKET, TRANSMISSION OIL COOLER
32913-28060

ZSA4#..A

 1
32921Y - CONNECTOR, TUBE
90404-13009

ZSA4#..A

 1
32921Z - RING, O(FOR TUBE CONNECTOR)
90301-10018

ZSA4#..A

 1
32943S - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-78011

ZSA4#..A

 1
32943T - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSA4#..A

 3
32943T - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSA4#..A

 3
32943U - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-78020

ZSA4#..A

 1
32943V - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

ZSA4#..A

 1
32943V - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

ZSA4#..A

 1
33493B - COOLER, OIL
33493-42070

ZSA4#..A

 1
33493-78020

ZSA4#..A

 1
Common parts
91671-80820
96136-42101
