ZSA42R-ANFMK (2015)

Toyota Rav4

Production Oct 2015 - Jul 2017
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1510- )ZSA42 ; (1510- )ASA4#,ZSA44..ARL,GCC,GEN

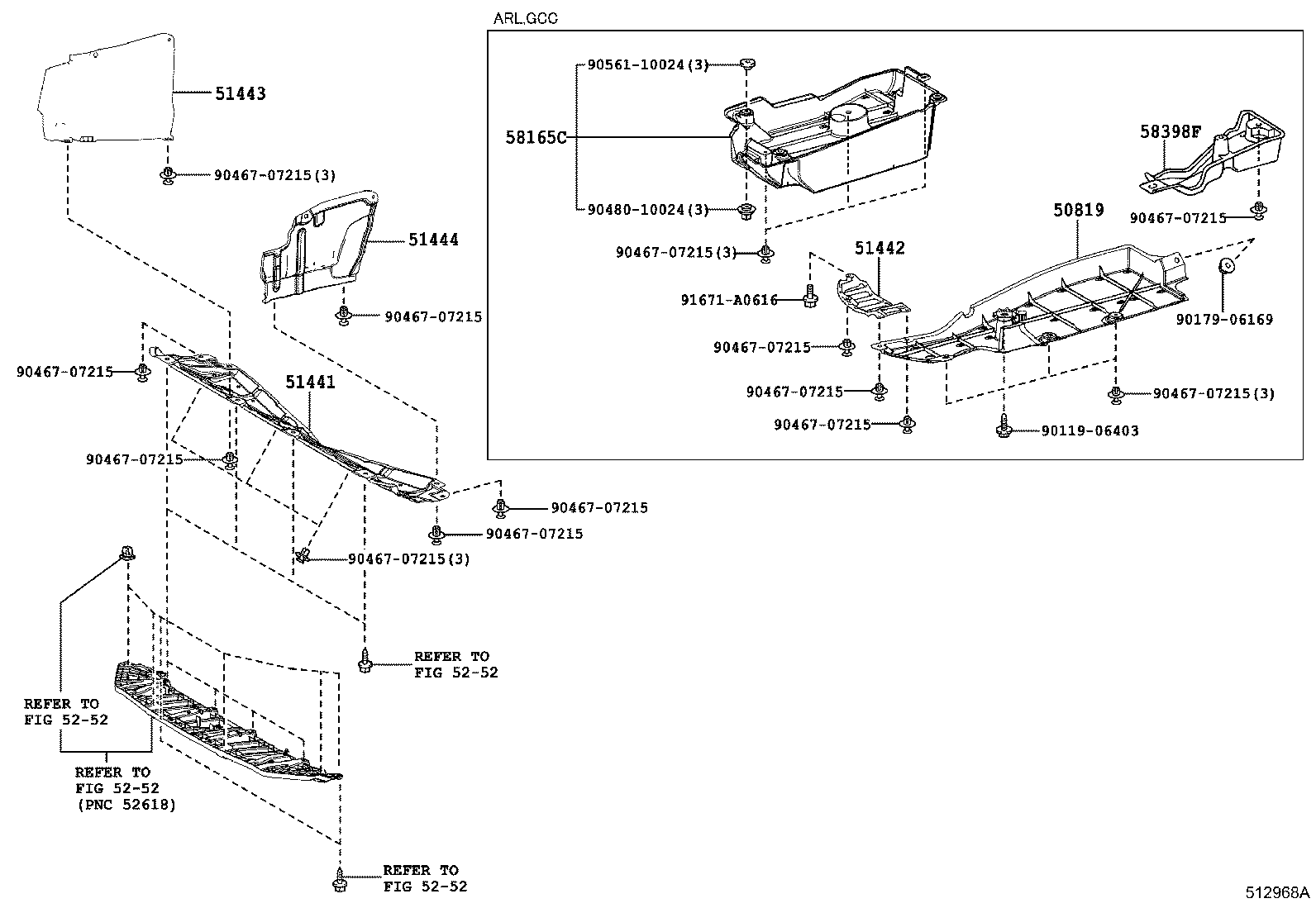

Click highlighted areas on diagram

UNDER COVER

diagram 50819 51441 51442 51443 51444 5252 5252 5252 5252 58165C 58398F 9011906403 9017906169 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9048010024 9056110024 91671A0616
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-42150

ASA4#,ZSA4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ASA4#,ZSA4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ASA4#,ZSA4#

 1
Common parts
90119-06403
90179-06169
90467-07215
90480-10024
90561-10024
91671-A0616
Linked diagrams
5252
