ZSA42L-ANXGK (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 3ZRFE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)G..GEN ; (1212-1510)ARL,GCC ; (1212-1510)ZSA4#..6F..GEN

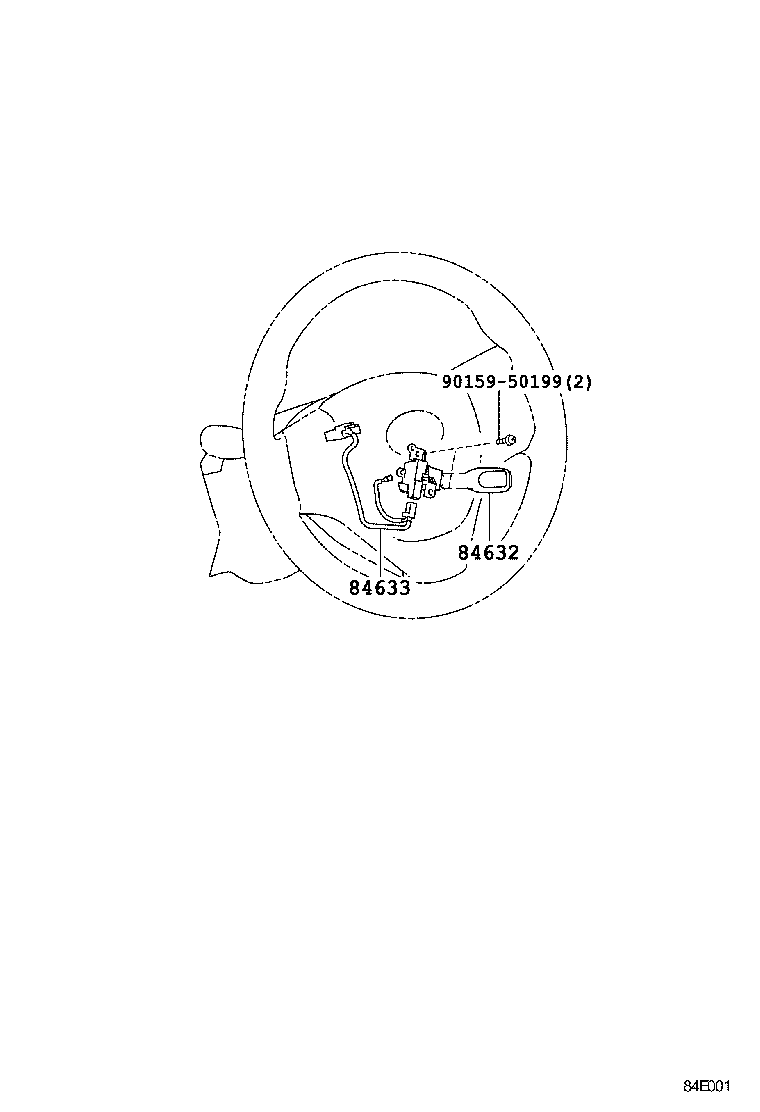

Click highlighted areas on diagram

diagram 84632 84633 9015950199
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G

 1
84632-34011

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-CD&USB&6SPEAKER(VFD)

 1
84632-34011

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-6SPEAKER(AUDIO LESS)

 1
84632-34011

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&STEERING SWITCH-W(AUDIO+DISPLAY)

 1
84632-34011

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-13MM JBL *DA(*DLX)

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-CD&USB&6SPEAKER(VFD)

 1
84633-48020

ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G

 1
84633-48020

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-13MM JBL *DA(*DLX)

 1
84633-48020

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&STEERING SWITCH-W(AUDIO+DISPLAY)

 1
84633-48020

ZSA42..G..GEN

CRUISE CONTROL-WITHOUT&AUDIO-6SPEAKER(AUDIO LESS)

 1
Common parts
90159-50199
