ZSA42L-ANXGK (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 3ZRFE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1212-1510)

Click highlighted areas on diagram

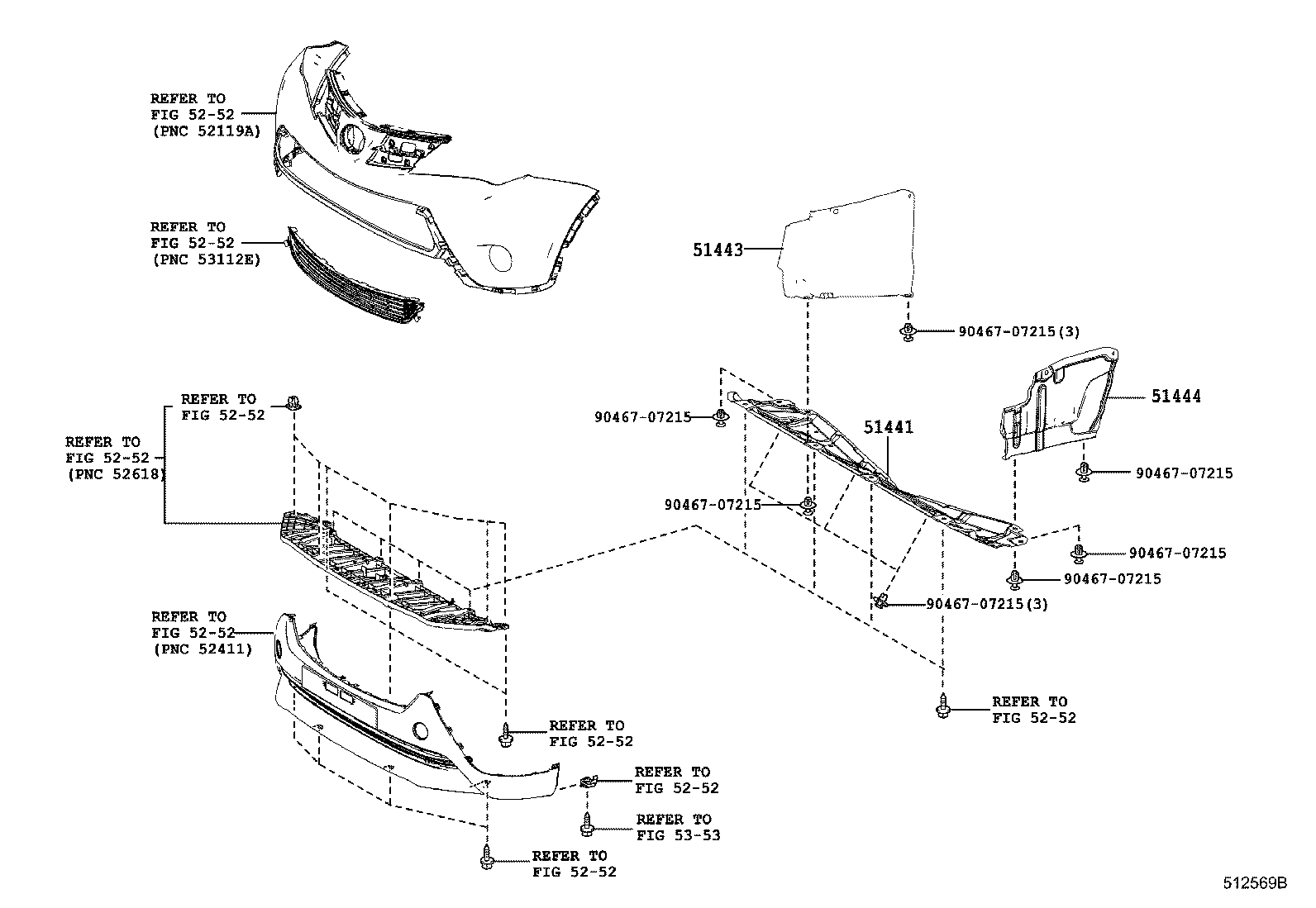

UNDER COVER

diagram 51441 51443 51444 5252 5252 5252 5252 5252 5252 5252 5252 5252 5353 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-42150

ASA4#,ZSA4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ASA4#,ZSA4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ASA4#,ZSA4#

 1
Common parts
90467-07215
Linked diagrams
5252
5353

ILLUST NO. 1 OF 2(1212-1510) ; (1510- )ALA49,ASA4#,ZSA4#

Click highlighted areas on diagram

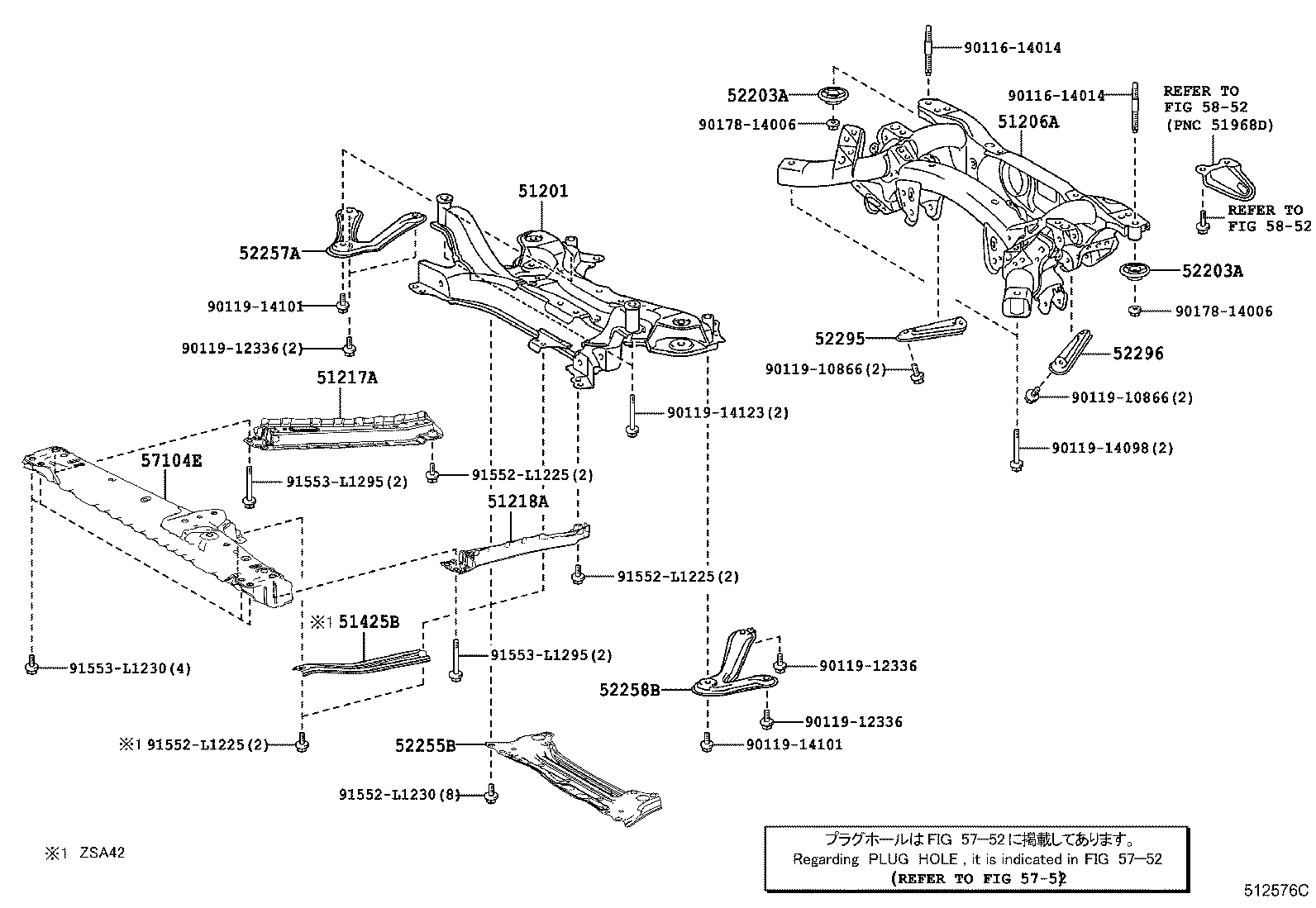

SUSPENSION CROSSMEMBER

diagram 51201 51206A 51217A 51218A 51425B 52203A 52203A 52255B 52257A 52258B 52295 52296 57104E 5752 5852 5852 9011614014 9011614014 9011910866 9011910866 9011912336 9011912336 9011912336 9011914098 9011914101 9011914101 9011914123 9017814006 9017814006 91552L1225 91552L1225 91552L1225 91552L1230 91553L1230 91553L1295 91553L1295
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12441

ASA4#,ZSA4#

 1
51201-12442

ASA4#,ZSA4#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-78010

ASA4#,ZSA4#

 1
51206-42062

ASA4#,ZSA4#

 1
51206-42063

ASA4#,ZSA4#

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-42020

ASA4#,ZSA4#

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-42020

ASA4#,ZSA4#

 1
51425B - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-42010

ZSA42

 1
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-42020

ASA4#,ZSA4#

 2
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-42020

ASA4#,ZSA4#

 2
52255B - BRACE, FRONT SUSPENSION MEMBER
52255-76010

ASA4#,ZSA4#

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-42010

ASA4#,ZSA4#

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-42010

ASA4#,ZSA4#

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-42010

ASA4#,ZSA4#

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-42010

ASA4#,ZSA4#

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-42070

ASA4#,ZSA4#

 1
Common parts
90116-14014
90119-10866
90119-12336
90119-14098
90119-14101
90119-14123
90178-14006
91552-L1225
91552-L1230
91553-L1230
91553-L1295
Linked diagrams
5752
5852
