ZSA42L-ANXGK (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 3ZRFE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )3ZRFE

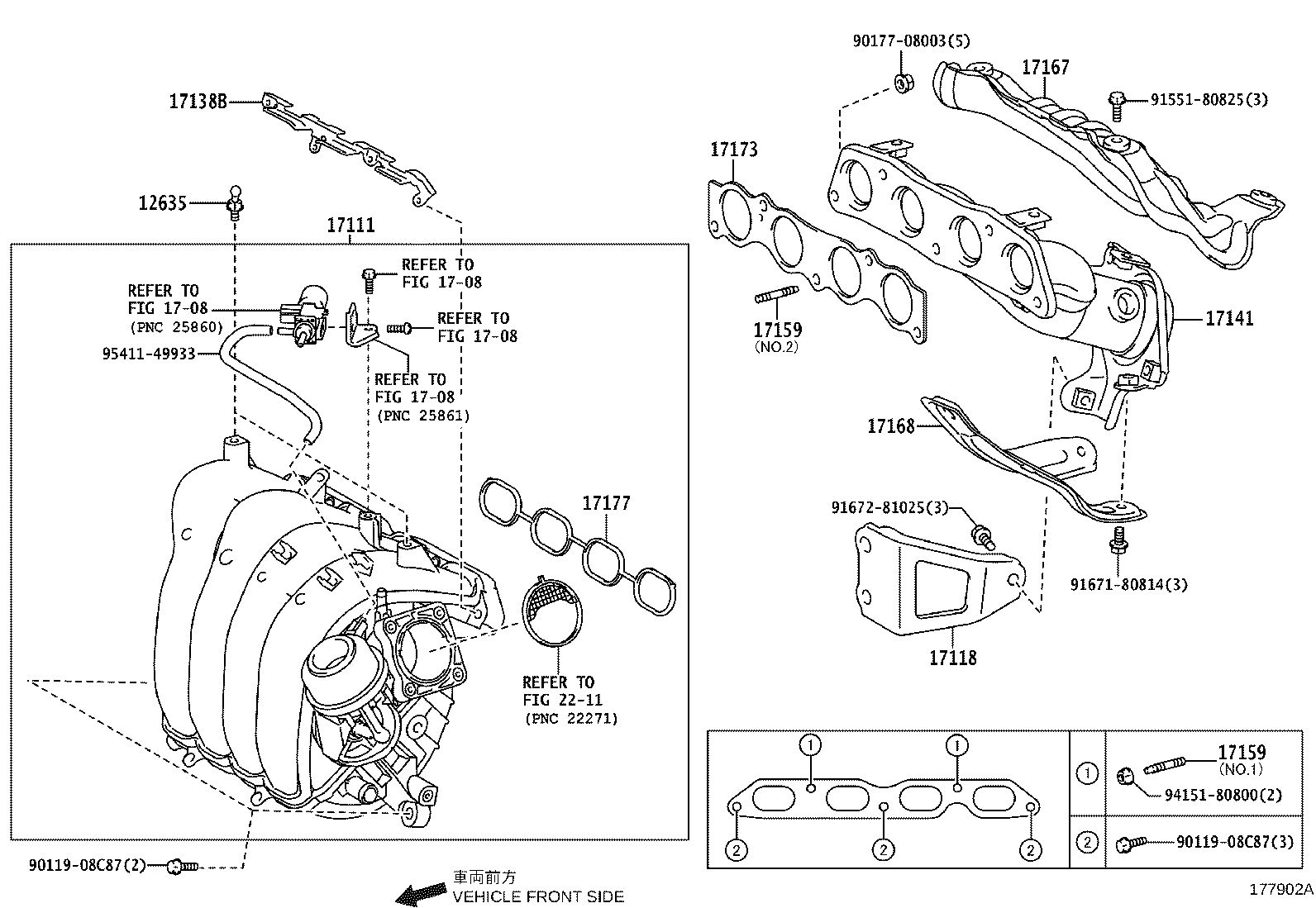

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 9017708003 9155180825 9167180814 9167281025 9415180800 9541149933
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

3ZRFE..ZSA4#

 2
17111 - MANIFOLD, INTAKE
17120-37070

3ZRFE..ZSA4#

 1
17118 - STAY, MANIFOLD
17118-37070

3ZRFE..ZSA4#

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

3ZRFE..ZSA4#

 1
17138-37011

3ZRFE..ZSA4#

 1
17141 - MANIFOLD, EXHAUST
17141-37170

3ZRFE..ZSA4#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

3ZRFE..ZSA4#

NO.1

 2
90126-08052

3ZRFE..ZSA4#

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

3ZRFE..ZSA4#

NO.1

 2
90126-08052

3ZRFE..ZSA4#

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37070

3ZRFE..ZSA4#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37090

3ZRFE..ZSA4#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

3ZRFE..ZSA4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

3ZRFE..ZSA4#

 1
Common parts
90119-08C87
90177-08003
91551-80825
91671-80814
91672-81025
94151-80800
95411-49933
