ZSA35R-AWFXPW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )EUR ; (0511- )ACA38,GSA33..ARL,GCC

Click highlighted areas on diagram

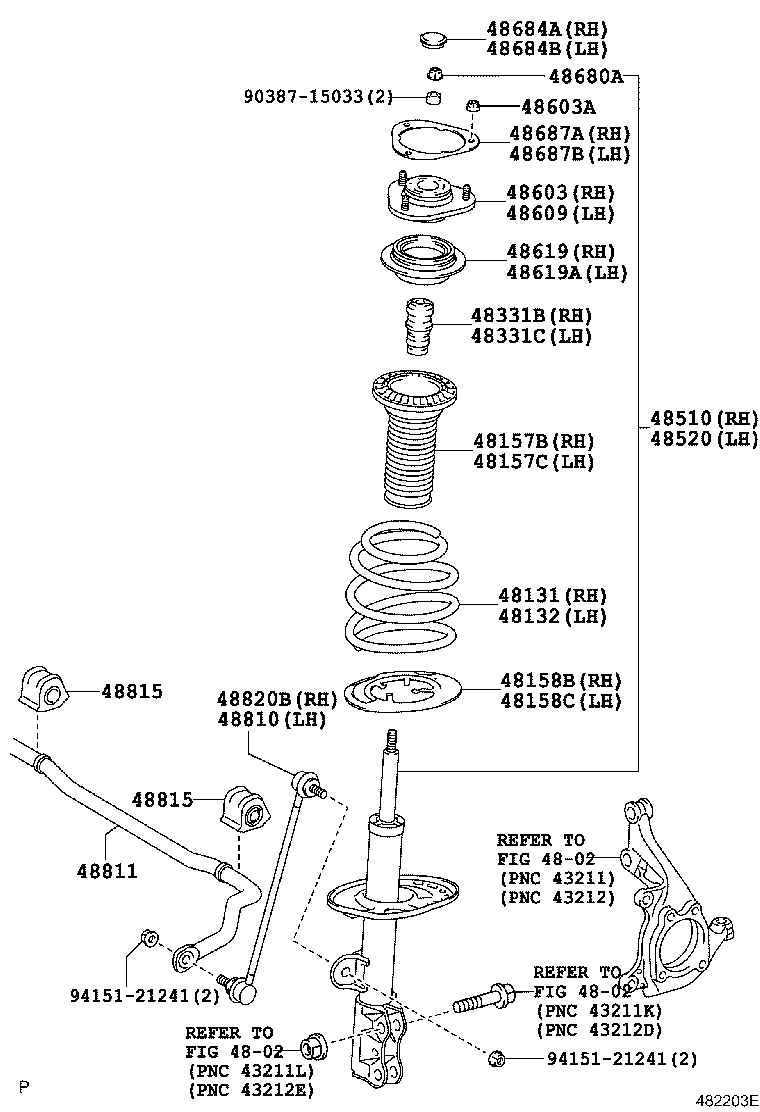

TYPE A, FOR PNC48510 OR 48520

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48520 48603 48603A 48609 48619 48619A 48680A 48684A 48684B 48687A 48687B 48810 48811 48815 48815 48820B 9038715033 9415121241 9415121241
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-42531

ZSA35..X

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

 1
48132 - SPRING, FRONT COIL, LH
48131-42531

ZSA35..X

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

 1
Common parts
90387-15033
94151-21241
Linked diagrams
4802
