ZSA35R-AWFXPW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )3ZRFAE

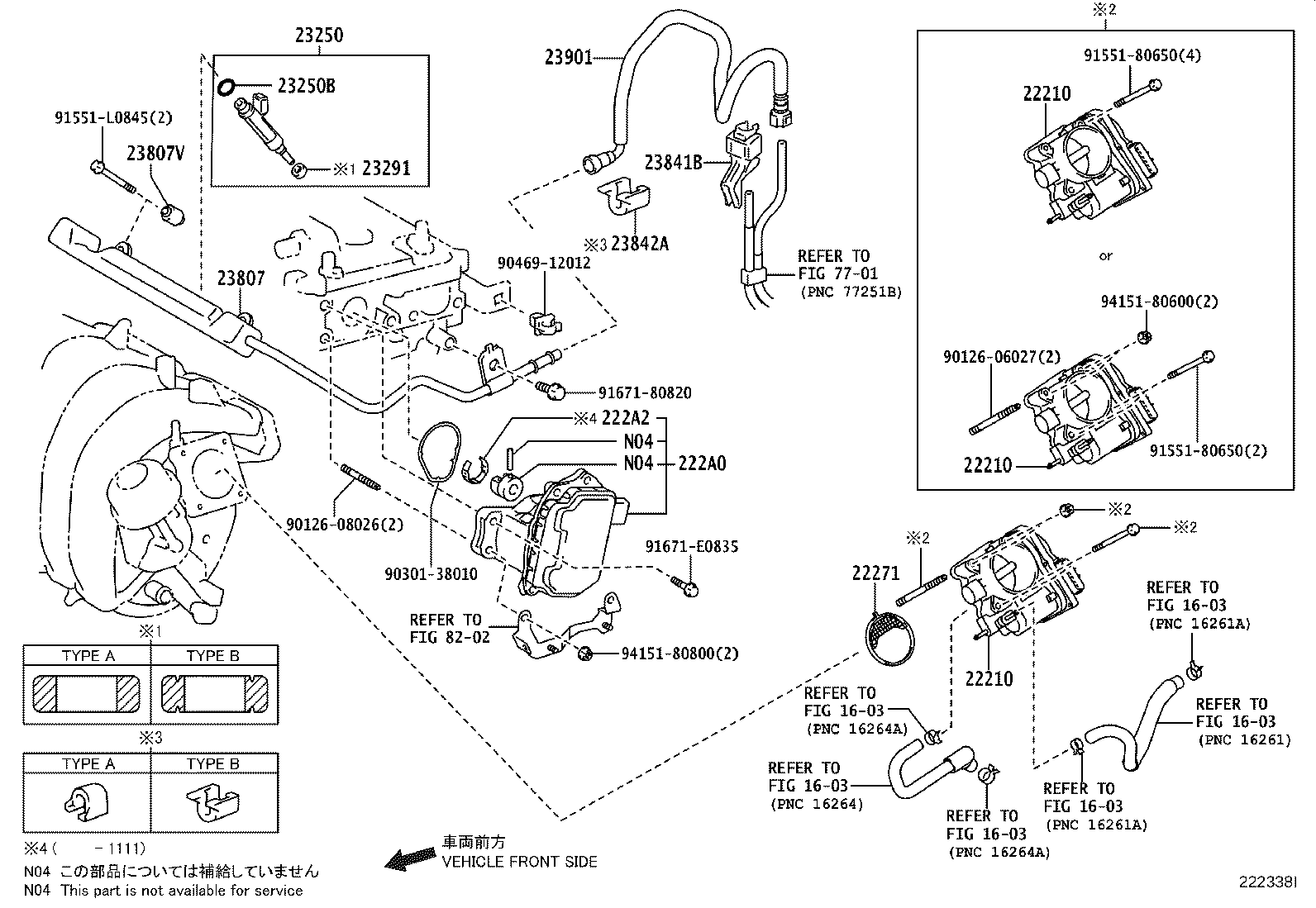

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 22210 22210 22210 22271 222A0 222A2 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 8202 9012606027 9012608026 9030138010 9046912012 9155180650 9155180650 91551L0845 9167180820 91671E0835 9415180600 9415180800
Part # Description Qty Price
222A0 - CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT
222A0-37014

3ZRFAE..ZSA3#

 1
222A0-37013

3ZRFAE..ZSA3#

 1
222A0-37013

3ZRFAE..ZSA3#

 1
23250 - INJECTOR ASSY, FUEL
23209-39145

3ZRFAE..ZSA3#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

3ZRFAE..ZSA3#

 4
23291-28020

3ZRFAE..ZSA3#

 4
Common parts
90126-06027
90126-08026
90301-38010
90469-12012
91551-80650
91551-L0845
91671-80820
91671-E0835
94151-80600
94151-80800
Linked diagrams
1603
7701
8202
