ZSA35L-BWFXPW (2010)
Toyota Rav4
(1002- )LHD..BTYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-42080D0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3 |
1 | ||
| 85044-42080B0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,SILVER ME.,1F7 |
1 | ||
| 85044-42080E1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BEIGE ME.,4T8 |
1 | ||
| 85044-42080B1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,GRAY ME.,1G3 |
1 | ||
| 85044-42080A0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,SUPER WHITE 2,040 |
1 | ||
| 85044-42080E0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3 |
1 | ||
| 85044-42080B2 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2 |
1 | ||
| 85044-42080C0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BLACK,202 |
1 | ||
| 85044-42080D1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,RED M.M.,3R3 |
1 | ||
| 85044-42080J0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-42040D0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3 |
1 | ||
| 85045-42040B1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,GRAY ME.,1G3 |
1 | ||
| 85045-42040A0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,SUPER WHITE 2,040 |
1 | ||
| 85045-42040B2 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,DK. STEEL MC.,1H2 |
1 | ||
| 85045-42040C0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BLACK,202 |
1 | ||
| 85045-42040B0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,SILVER ME.,1F7 |
1 | ||
| 85045-42040E1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BEIGE ME.,4T8 |
1 | ||
| 85045-42040E0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,BRONZE M.M.,4T3 |
1 | ||
| 85045-42040D1 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,RED M.M.,3R3 |
1 | ||
| 85045-42040J0 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-42040 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-42040 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15056 |
ALA3#,ZSA3#..LHD..BTYPE L=140,HEADLAMP CLEANER-WITH |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15069 |
ALA3#,ZSA3#..LHD..BTYPE L=280,HEADLAMP CLEANER-WITH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15073 |
ALA3#,ZSA3#..LHD..BTYPE L=1700,HEADLAMP CLEANER-WITH |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85273-20020 |
ALA3#,ZSA3#..LHD..BTYPE COLD AREA SPEC&HEADLAMP CLEANER-WITH |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17005 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
2 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
2 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85357-42070 |
ALA3#,ZSA3#..LHD..BTYPE COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17003 |
ALA3#,ZSA3#..LHD..BTYPE HEADLAMP CLEANER-WITH |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85375-16020 |
ALA3#,ZSA3#..LHD..BTYPE L=40,COLD AREA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 82711-45020 | ||||
| 85272-28030 | ||||
| 85272-42020 | ||||
| 85273-42010 | ||||
| 90075-90512 | ||||
| 90075-91002 | ||||
| 90099-32089 | ||||

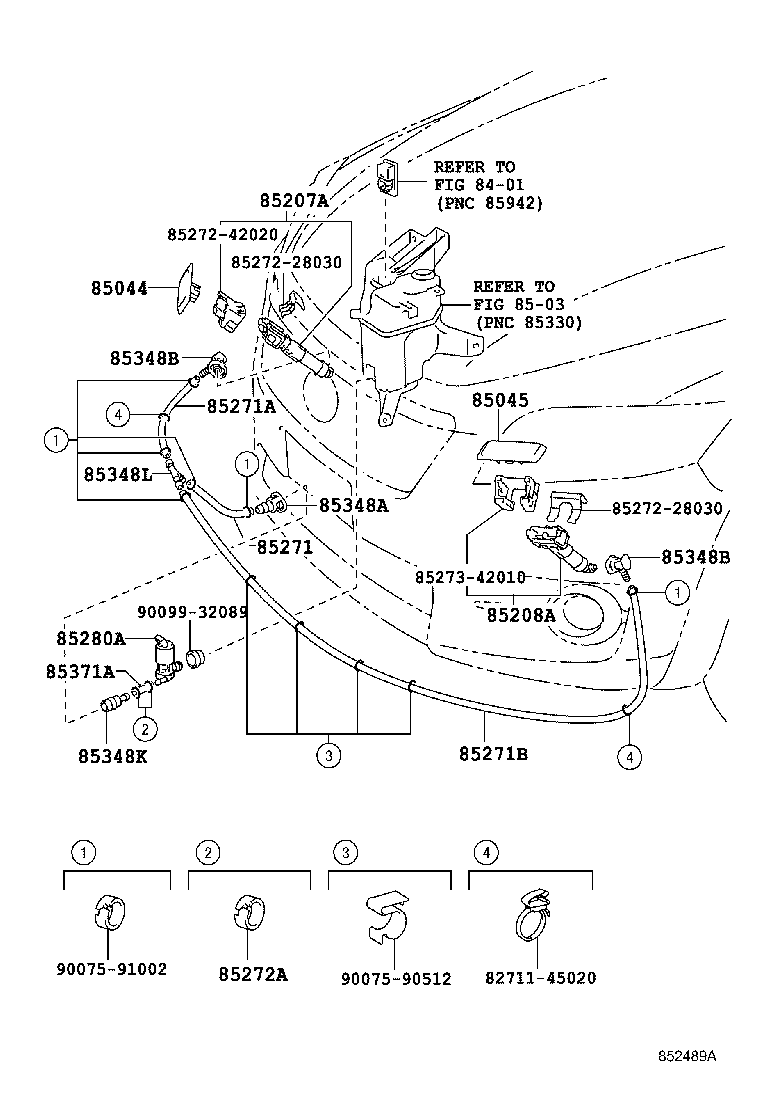

| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
