SXA11R-AWMGKQ (1995)

Toyota Rav4

Production Apr 1995 - May 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )3SFE..ARL

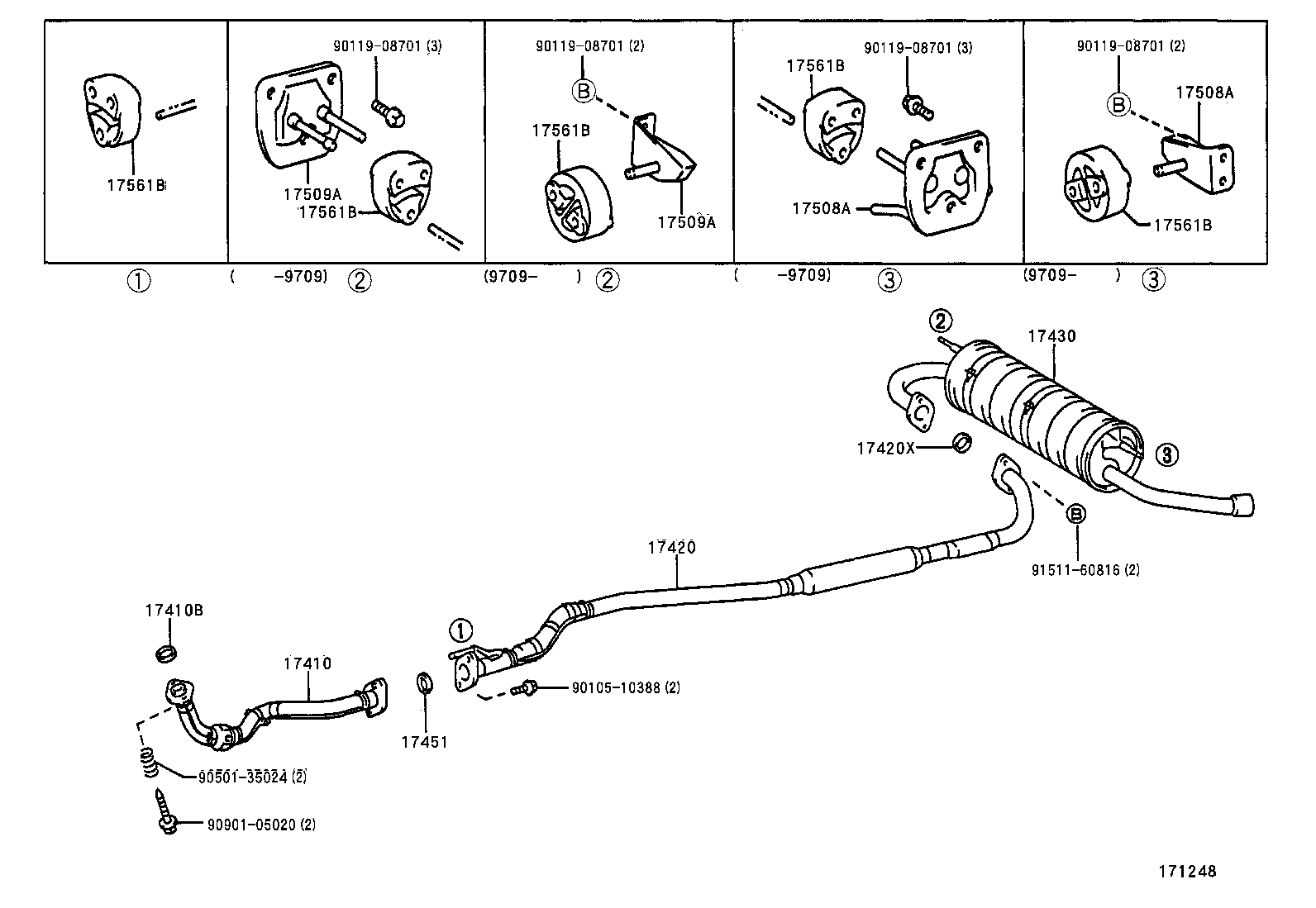

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17508A 17508A 17509A 17509A 17561B 17561B 17561B 17561B 17561B 9010510388 9011908701 9011908701 9011908701 9011908701 9050135024 9090105020 9151160816
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A331

3SFE..SXA1#..ARL

 1
17410-7A020

3SFE..SXA1#..ARL

 1
17410B - GASKET, EXHAUST PIPE
90917-06066

3SFE..SXA1#..ARL

 1
17451-74050

3SFE..SXA1#..ARL

 1
17451-74051

3SFE..SXA1#..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74870

3SFE..SXA11..ARL

 1
17420-7A130

3SFE..SXA11..ARL

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

3SFE..SXA1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B040

3SFE..SXA1#

 1
17430-7A780

3SFE..SXA1#

 1
17430-7A530

3SFE..SXA1#

 1
17451 - GASKET, EXHAUST PIPE
90917-06062

3SFE..SXA1#..ARL,GCC,GEN

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74110

3SFE..SXA1#

 1
17508-74120

3SFE..SXA1#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74110

3SFE..SXA1#

 1
17508-74120

3SFE..SXA1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74210

3SFE..SXA1#

 1
17509-74180

3SFE..SXA1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74210

3SFE..SXA1#

 1
17509-74180

3SFE..SXA1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
Common parts
90105-10388
90119-08701
90501-35024
90901-05020
91511-60816

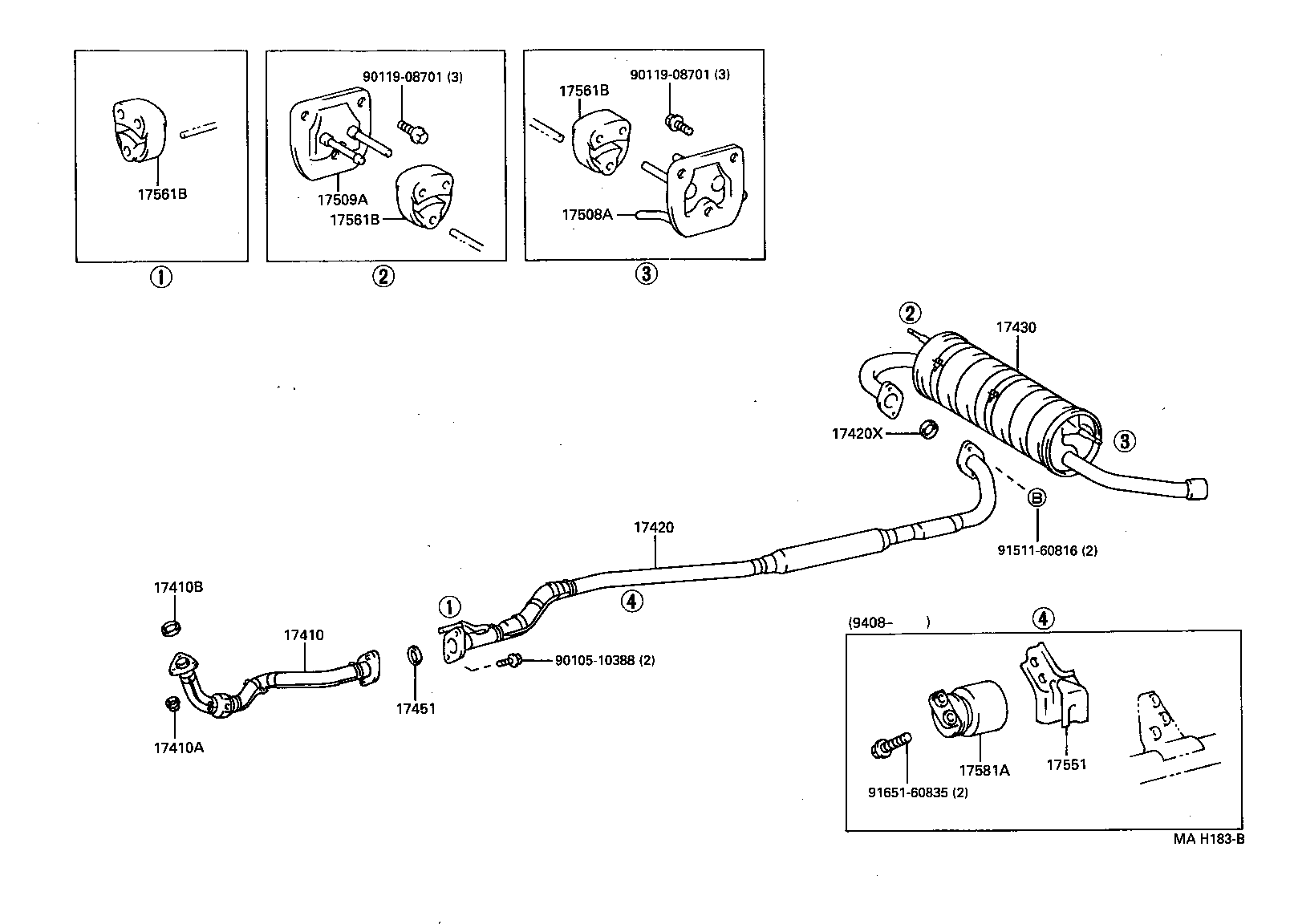

(9404-9608)3SFE..ARL

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17451 17508A 17509A 17551 17561B 17561B 17561B 17581A 9010510388 9011908701 9011908701 9151160816 9165160835
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A331

3SFE..SXA1#..ARL

 1
17410-7A020

3SFE..SXA1#..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3SFE..SXA1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

3SFE..SXA1#..ARL

 1
17451-74050

3SFE..SXA1#..ARL

 1
17451-74051

3SFE..SXA1#..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74870

3SFE..SXA11..ARL

 1
17420-7A130

3SFE..SXA11..ARL

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

3SFE..SXA1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B040

3SFE..SXA1#

 1
17430-7A780

3SFE..SXA1#

 1
17430-7A530

3SFE..SXA1#

 1
17451 - GASKET, EXHAUST PIPE
90917-06062

3SFE..SXA1#..ARL,GCC,GEN

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74110

3SFE..SXA1#

 1
17508-74120

3SFE..SXA1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74210

3SFE..SXA1#

 1
17509-74180

3SFE..SXA1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SFE..SXA1#

FRONT

 1
17565-46010

3SFE..SXA1#

REAR

 2
17565-74420

3SFE..SXA1#

REAR

 2
Common parts
90105-10388
90119-08701
91511-60816
91651-60835
