Toyota Rav4 SXA11 REAR COMBINATION LAMP

Manufacturers Home
Toyota
GR
RAV4
SXA11R-AWMGK (1995)
8111 - REAR COMBINATION LAMP

SXA11R-AWMGK (1995)

Toyota Rav4

Production Apr 1995 - Aug 2000

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9709- )

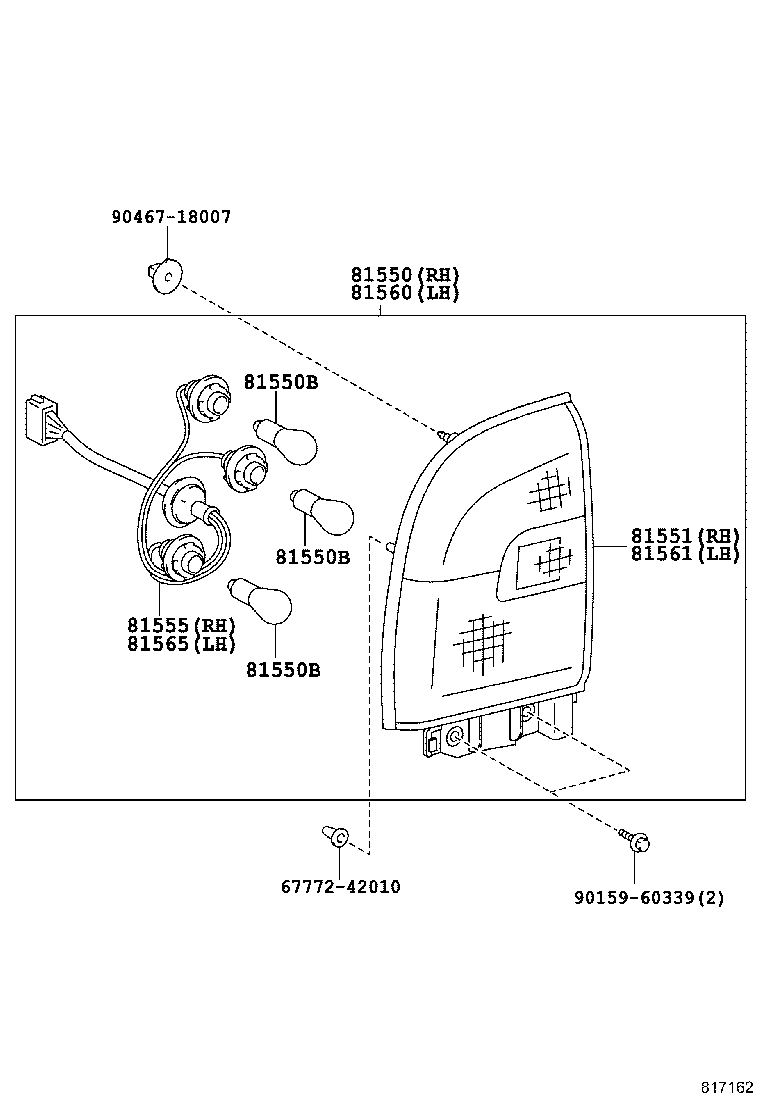

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81550-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81550-42050	SXA1#	09/1997 - 12/2999	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81550-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81550-42050	SXA1#	09/1997 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-42050	SXA1#	09/1997 - 12/2999	1
81551-42010	SXA1#	04/1994 - 09/1997	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81555-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81555-42050	SXA1#	09/1997 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81560-42050	SXA1#	09/1997 - 12/2999	1
81560-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81560-42050	SXA1#	09/1997 - 12/2999	1
81560-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-42010	SXA1#	04/1994 - 09/1997	1
81561-42050	SXA1#	09/1997 - 12/2999	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-42050	SXA1#	09/1997 - 12/2999	1
81555-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81555-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
Common parts
67772-42010
90159-60339
90467-18007

(9404-9709)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81550-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81550-42050	SXA1#	09/1997 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	SXA1# 12V 21/5W	04/1994 - 09/1997	2
99132-11210	SXA1# 12V 21W	04/1994 - 09/1997	4
90981-11043	SXA1# 12V 21/5W	09/1997 - 12/2999	2
90981-11042	SXA1# 12V 21W	09/1997 - 12/2999	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-42050	SXA1#	09/1997 - 12/2999	1
81551-42010	SXA1#	04/1994 - 09/1997	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81555-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81555-42050	SXA1#	09/1997 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81560-42050	SXA1#	09/1997 - 12/2999	1
81560-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-42010	SXA1#	04/1994 - 09/1997	1
81561-42050	SXA1#	09/1997 - 12/2999	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-42050	SXA1#	09/1997 - 12/2999	1
81555-42010	SXA1#..GCC,GEN	04/1994 - 09/1997	1
81555-42020	SXA1#..RHD..GEN SOUTH AFRICA SPEC	07/1995 - 09/1997	1
Common parts
67772-42010
90159-60339
90467-18007

SXA11R-AWMGK (1995)

(9709- )

(9404-9709)
