SXA11R-AWMGK (1995)

Toyota Rav4

Production Apr 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404-9608) ; (9608-9709)3SFE..ARL

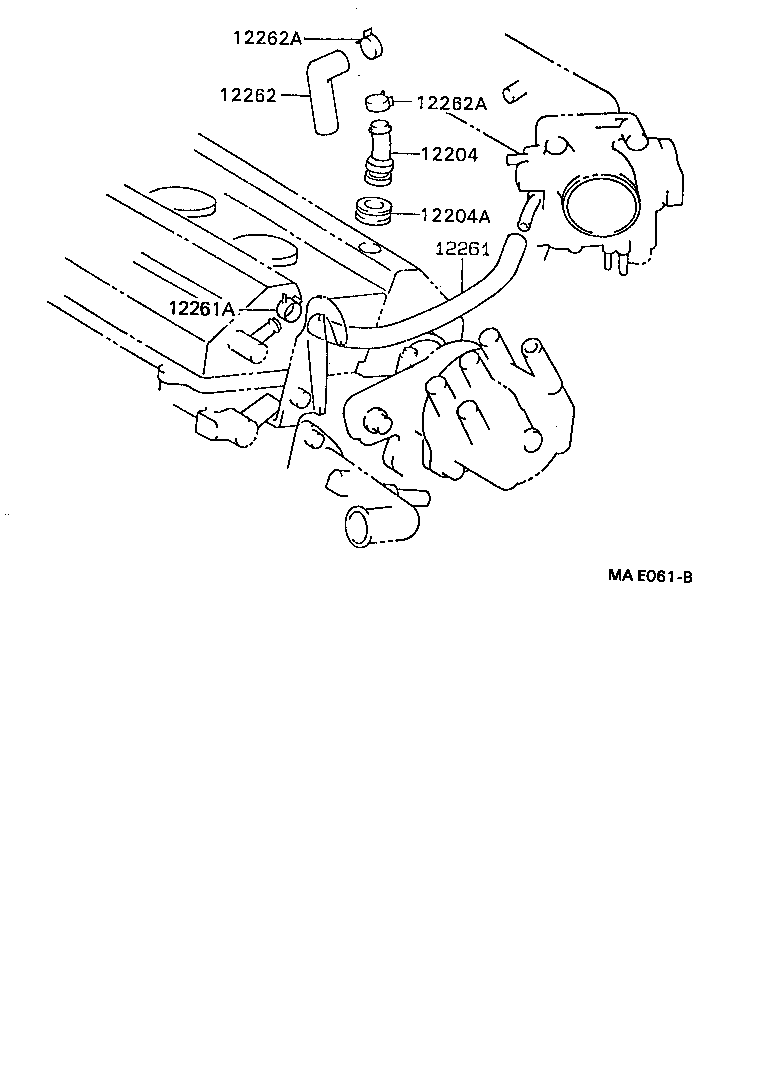

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74030

3SFE..SXA1#

 1
12204-74020

3SFE..SXA1#

 1
12204-74030

3SFE..SXA1#..EUR,GCC,GEN

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3SFE..SXA1#

 1
12261 - HOSE, VENTILATION
12261-74020

3SFE..SXA1#

 1
12260-74050

3SFE..SXA1#

 1
12261-74141

3SFE..SXA1#

 1
12261-74140

3SFE..SXA1#..EUR,GCC,GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14043

3SFE..SXA1#

 1
90467-15022

3SFE..SXA1#

 1
90467-15016

3SFE..SXA1#

 1
12262 - HOSE, VENTILATION, NO.2
12262-74100

3SFE..SXA1#..EUR,GCC,GEN

 1
12262-74050

3SFE..SXA1#

 1
12262-74100

3SFE..SXA1#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016

3SFE..SXA1#

VALVE SIDE

 1
90467-13103

3SFE..SXA1#

SURGE TANK SIDE

 1
90467-14043

3SFE..SXA1#

VALVE SIDE

 1
90467-15022

3SFE..SXA1#

VALVE SIDE

 1
90467-14043

3SFE..SXA1#..EUR,GCC,GEN

 2
90467-14043

3SFE..SXA1#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016

3SFE..SXA1#

VALVE SIDE

 1
90467-13103

3SFE..SXA1#

SURGE TANK SIDE

 1
90467-14043

3SFE..SXA1#

VALVE SIDE

 1
90467-15022

3SFE..SXA1#

VALVE SIDE

 1
90467-14043

3SFE..SXA1#..EUR,GCC,GEN

 2
90467-14043

3SFE..SXA1#

 2

(9608-9709)3SFE..EUR,GCC,GEN ; (9709- )

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74030

3SFE..SXA1#

 1
12204-74020

3SFE..SXA1#

 1
12204-74030

3SFE..SXA1#..EUR,GCC,GEN

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3SFE..SXA1#

 1
12261 - HOSE, VENTILATION
12261-74020

3SFE..SXA1#

 1
12260-74050

3SFE..SXA1#

 1
12261-74141

3SFE..SXA1#

 1
12261-74140

3SFE..SXA1#..EUR,GCC,GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14043

3SFE..SXA1#

 1
90467-15022

3SFE..SXA1#

 1
90467-15016

3SFE..SXA1#

 1
12262 - HOSE, VENTILATION, NO.2
12262-74100

3SFE..SXA1#..EUR,GCC,GEN

 1
12262-74050

3SFE..SXA1#

 1
12262-74100

3SFE..SXA1#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016

3SFE..SXA1#

VALVE SIDE

 1
90467-13103

3SFE..SXA1#

SURGE TANK SIDE

 1
90467-14043

3SFE..SXA1#

VALVE SIDE

 1
90467-15022

3SFE..SXA1#

VALVE SIDE

 1
90467-14043

3SFE..SXA1#..EUR,GCC,GEN

 2
90467-14043

3SFE..SXA1#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016

3SFE..SXA1#

VALVE SIDE

 1
90467-13103

3SFE..SXA1#

SURGE TANK SIDE

 1
90467-14043

3SFE..SXA1#

VALVE SIDE

 1
90467-15022

3SFE..SXA1#

VALVE SIDE

 1
90467-14043

3SFE..SXA1#..EUR,GCC,GEN

 2
90467-14043

3SFE..SXA1#

 2
