Toyota Rav4 SXA11 MOUNTING - JDM Part Detective

SXA11L-AWPGKW (1995)

Toyota Rav4

Production Apr 1995 - May 2000

Engine 3SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9404-9709)

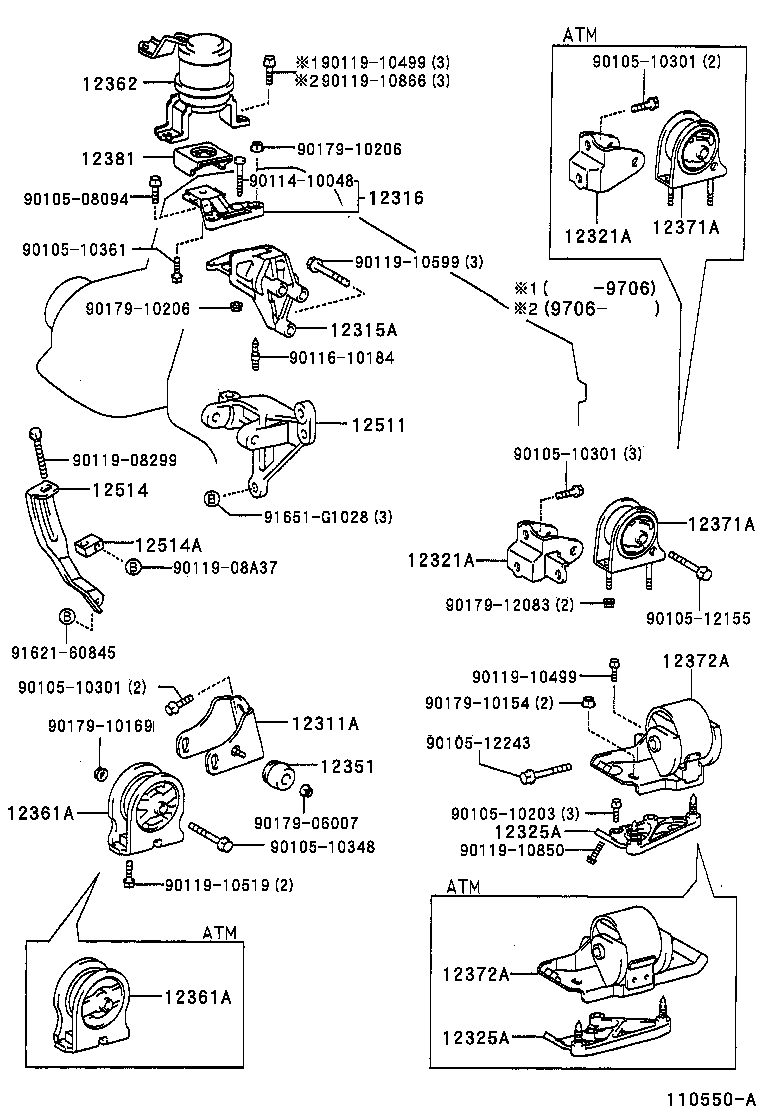

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74190	3SFE..SXA1#	04/1994 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74140	3SFE..SXA1#	08/1996 - 12/2999	1
12315-74120	3SFE..SXA1#	04/1994 - 08/1996	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-74100	3SFE..SXA1#	04/1994 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74290	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74290	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74390	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12325-74210	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74390	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12325-74210	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12351 - DAMPER, ENGINE MOUNTING
12351-63010	3SFE..SXA1#	04/1994 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74370	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74370	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74391	3SFE..SXA1#	08/1996 - 12/2999	1
12362-74390	3SFE..SXA1#	04/1994 - 08/1996	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74470	3SFE..SXA1#..ATM	04/1994 - 09/1995	1
12371-74471	3SFE..SXA1#..ATM	09/1995 - 12/2999	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74470	3SFE..SXA1#..ATM	04/1994 - 09/1995	1
12371-74471	3SFE..SXA1#..ATM	09/1995 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74520	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12372-74620	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74520	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12372-74620	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12381 - STABILIZER, ENGINE MOUNTING
12381-74050	3SFE..SXA1#	04/1994 - 12/2999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74051	3SFE..SXA1#	04/1994 - 12/2999	1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74050	3SFE..SXA1#..EUR,GCC,GEN	08/1996 - 02/1997	1
12514-74011	3SFE..SXA1#	04/1994 - 08/1996	1
12514-74051	3SFE..SXA1#	09/1997 - 12/2999	1
12514-74051	3SFE..SXA1#..EUR,GCC,GEN	02/1997 - 09/1997	1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011	3SFE..SXA1#	04/1994 - 12/2999	1
Common parts
90105-08094
90105-10203
90105-10301
90105-10348
90105-10361
90105-12155
90105-12243
90114-10048
90116-10184
90119-08299
90119-08A37
90119-10499
90119-10519
90119-10599
90119-10850
90119-10866
90179-06007
90179-10154
90179-10169
90179-10206
90179-12083
91621-60845
91651-G1028

(9709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74190	3SFE..SXA1#	04/1994 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74140	3SFE..SXA1#	08/1996 - 12/2999	1
12315-74120	3SFE..SXA1#	04/1994 - 08/1996	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-74100	3SFE..SXA1#	04/1994 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74290	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74290	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74390	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12325-74210	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74390	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12325-74210	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12351 - DAMPER, ENGINE MOUNTING
12351-63010	3SFE..SXA1#	04/1994 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74370	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74370	3SFE..SXA1#..ATM	04/1994 - 12/2999	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74391	3SFE..SXA1#	08/1996 - 12/2999	1
12362-74390	3SFE..SXA1#	04/1994 - 08/1996	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74470	3SFE..SXA1#..ATM	04/1994 - 09/1995	1
12371-74471	3SFE..SXA1#..ATM	09/1995 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74520	3SFE..SXA1#..ATM	04/1994 - 09/1997	1
12372-74620	3SFE..SXA1#..ATM	09/1997 - 12/2999	1
12381 - STABILIZER, ENGINE MOUNTING
12381-74050	3SFE..SXA1#	04/1994 - 12/2999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74051	3SFE..SXA1#	04/1994 - 12/2999	1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74050	3SFE..SXA1#..EUR,GCC,GEN	08/1996 - 02/1997	1
12514-74011	3SFE..SXA1#	04/1994 - 08/1996	1
12514-74051	3SFE..SXA1#	09/1997 - 12/2999	1
12514-74051	3SFE..SXA1#..EUR,GCC,GEN	02/1997 - 09/1997	1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011	3SFE..SXA1#	04/1994 - 12/2999	1
Common parts
90105-08094
90105-10051
90105-10301
90105-10348
90105-10361
90105-10409
90105-10494
90105-12155
90114-10048
90116-10184
90119-08299
90119-08A37
90119-10519
90119-10599
90119-10821
90119-10866
90179-06007
90179-10154
90179-10169
90179-10206
90179-12083
91621-60845
91651-G1028

SXA11L-AWPGKW (1995)

(9404-9709)

(9709- )
