Toyota Rav4 SXA11 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-12240	SXA1#..LHD..ATM	04/1994 - 09/1997	1
33521-42010	SXA1#..LHD..ATM	09/1997 - 12/2999	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-42030	SXA1#..LHD..ATM	09/1997 - 12/2999	1
33503-42020	SXA1#..LHD..ATM	04/1994 - 09/1997	1
33503G - BUSH(FOR SHIFT LEVER)
90386-09024	SXA1#..ATM	04/1994 - 09/1997	2
90386-08062	SXA1#..LHD..ATM	09/1997 - 12/2999	2
33503G - BUSH(FOR SHIFT LEVER)
90386-09024	SXA1#..ATM	04/1994 - 09/1997	2
90386-08062	SXA1#..LHD..ATM	09/1997 - 12/2999	2
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238	SXA1#..ATM	09/1997 - 12/2999	2
90159-40244	SXA1#..ATM	04/1994 - 09/1997	2
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238	SXA1#..ATM	09/1997 - 12/2999	2
90159-40244	SXA1#..ATM	04/1994 - 09/1997	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12201C0	SXA1#..LHD..ATM BLACK,TRIM1#	04/1994 - 09/1997	1
33542-12230C0	SXA1#..LHD..ATM BLACK,TRIM1#	09/1997 - 08/2000	1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-12100	SXA1#..ATM	04/1994 - 09/1997	1
33511-42010	SXA1#..LHD..ATM	09/1997 - 12/2999	1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010	SXA1#..ATM	04/1994 - 12/2999	4
33550D - BULB, POSITION INDICATOR LAMP
90981-11036	SXA1#..ATM 12V 1.7W	04/1994 - 09/1997	1
90981-11018	SXA1#..LHD..ATM 12V 1.2W W/O SOCKET	09/1997 - 12/2999	1
33550E - CAP, POSITION INDICATOR LAMP
90339-04062	SXA1#..LHD..ATM	09/1997 - 12/2999	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12120C0	SXA1#..LHD..ATM BLACK,TRIM1#	04/1994 - 09/1997	1
33623-42010C0	SXA1#..LHD..ATM BLACK,TRIM1#	09/1997 - 08/2000	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07037	SXA1#..ATM	04/1994 - 09/1997	1
90501-07037	SXA1#..LHD..ATM	09/1997 - 12/2999	1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-12030	SXA1#..ATM	09/1997 - 12/2999	1
33625-12020	SXA1#..ATM	04/1994 - 09/1997	1
33631 - ROD, DETENT
33631-33020	SXA1#..ATM	09/1997 - 12/2999	1
33631-12120	SXA1#..ATM	04/1994 - 09/1997	1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-06103	SXA1#..LHD..ATM	09/1997 - 12/2999	1
90501-07074	SXA1#..ATM	04/1994 - 09/1997	1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04008	SXA1#..ATM	04/1994 - 09/1997	1
90256-04008	SXA1#..LHD..ATM	09/1997 - 12/2999	1
35559 - SPRING, MANUAL DETENT
35559-12040	SXA1#..ATM	09/1997 - 12/2999	1
35559-33010	SXA1#..ATM	04/1994 - 09/1997	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12160	SXA1#..LHD..ATM	09/1997 - 12/2999	1
35906-42020	SXA1#..LHD..ATM	04/1994 - 09/1997	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12380	SXA1#..LHD..ATM	04/1994 - 09/1997	1
35921-12420	SXA1#..LHD..ATM	09/1997 - 12/2999	1
35952 - LENS, POSITION INDICATOR
35952-42010	SXA1#..LHD..ATM	09/1997 - 12/2999	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12360C0	SXA1#..LHD..ATM BLACK,TRIM1#	09/1997 - 08/2000	1
35971-12320C0	SXA1#..LHD..ATM BLACK,TRIM1#	04/1994 - 09/1997	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-42010	SXA1#..LHD..ATM	09/1997 - 12/2999	1
35974-12161	SXA1#..LHD..ATM	04/1994 - 09/1997	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12220C0	SXA1#..ATM BLACK,TRIM1#	09/1997 - 08/2000	1
35975-12200C0	SXA1#..ATM BLACK,TRIM1#	04/1994 - 09/1997	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-12080C0	SXA1#..ATM BLACK,TRIM1#	04/1994 - 08/2000	1
Common parts
90159-50347
93315-14010
Linked diagrams
8410

SXA11L-AWPGKV (1997)

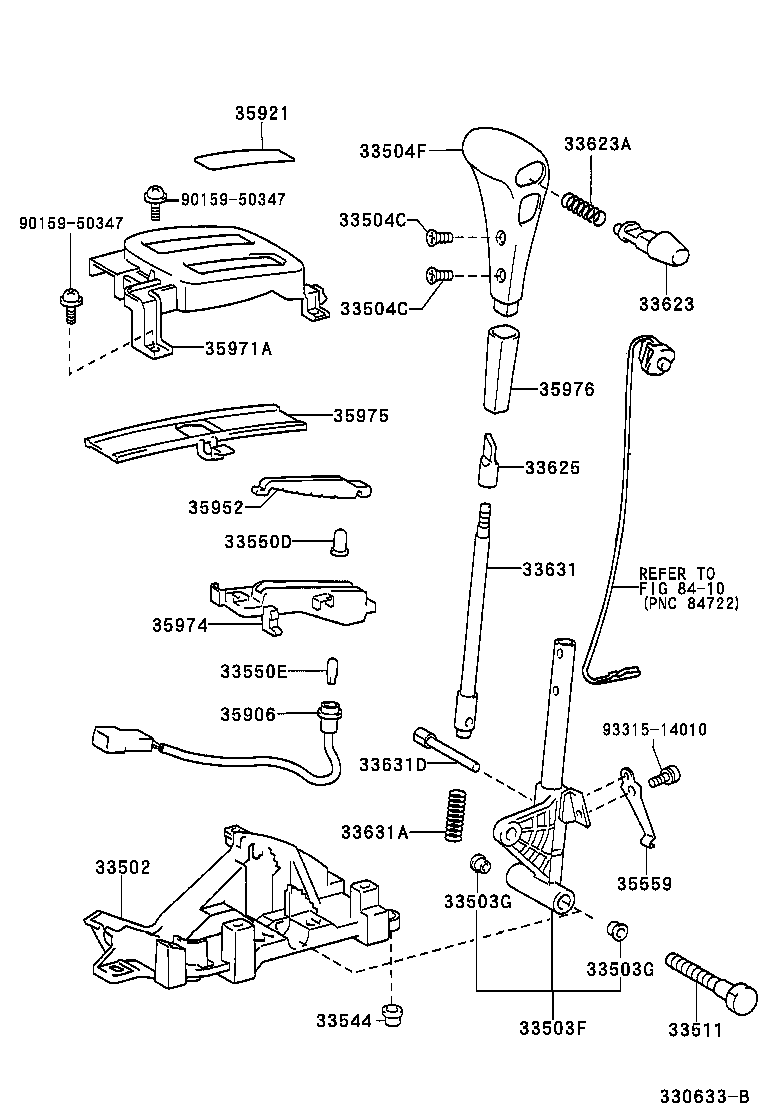

ILLUST NO. 1 OF 2(9709- )LHD..ATM
