SXA11L-AWMGKW (1995)
Toyota Rav4
Production
Apr 1995
-
May 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9504-9709)SXA11..LHD

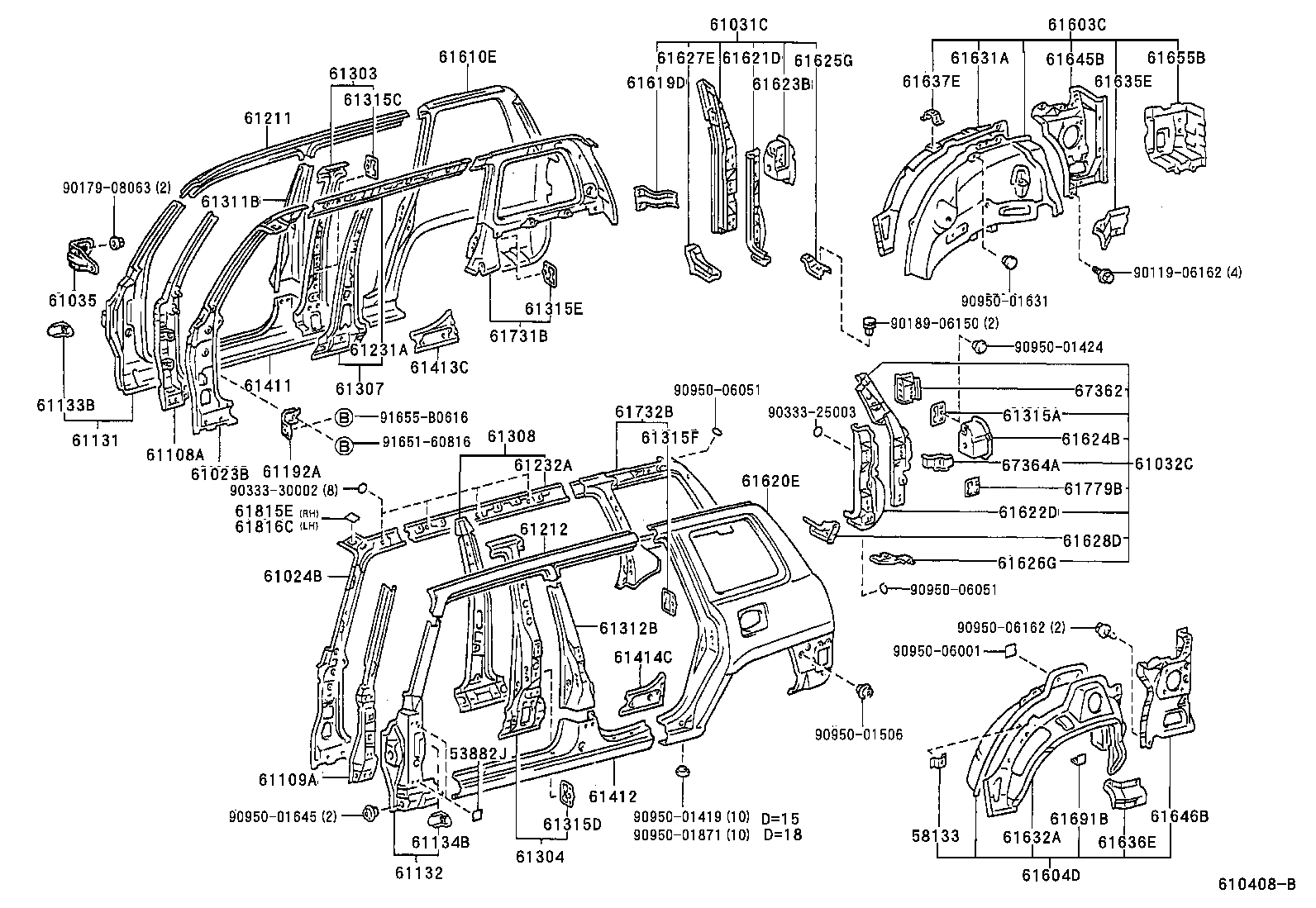

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53882J - SEAL, FRONT FENDER | ||||
| 53882-22080 |
SXA1# |
4 | ||
| 58133 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22030 |
SXA1# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-42031 |
SXA11..LHD |
1 | ||
| 61023-42031 |
SXA11 |
1 | ||
| 61023-42050 |
SXA1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-42041 |
SXA11 |
1 | ||
| 61024-42040 |
SXA11..LHD |
1 | ||
| 61031C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61031-42020 |
SXA11 |
1 | ||
| 61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61032-42020 |
SXA11 |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-42010 |
SXA1#..LHD |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-42011 |
SXA1# |
1 | ||
| 61108-42010 |
SXA1# |
1 | ||
| 61108-42030 |
SXA11 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-42010 |
SXA1# |
1 | ||
| 61109-42030 |
SXA11 |
1 | ||
| 61109-42011 |
SXA1# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61110-42040 |
SXA1# |
1 | ||
| 61110-42041 |
SXA1# |
1 | ||
| 61110-42040 |
SXA11 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61120-42040 |
SXA11 |
1 | ||
| 61120-42040 |
SXA1# |
1 | ||
| 61120-42041 |
SXA1# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
SXA1# |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61134-12190 |
SXA1# |
1 | ||
| 61133-12190 |
SXA1# |
1 | ||
| 61192A - BRACKET, COMPUTER TO COWL SIDE, NO.2 | ||||
| 61192-42010 |
SXA1# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-42020 |
SXA11..EUR,GEN |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-42020 |
SXA11 |
1 | ||
| 61212-42040 |
SXA11..LHD W(ANTENNA HOLE) |
1 | ||
| 61231A - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-42030 |
SXA11..LHD |
1 | ||
| 61232A - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-42030 |
SXA11..LHD |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-42900 |
SXA11 |
1 | ||
| 61303-42020 |
SXA11 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-42020 |
SXA11 |
1 | ||
| 61304-42900 |
SXA11 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-42900 |
SXA11 |
1 | ||
| 61307-42040 |
SXA11 W(MOON ROOF) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-42900 |
SXA11 |
1 | ||
| 61308-42040 |
SXA11 W(MOON ROOF) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-42011 |
SXA11 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-42011 |
SXA11 |
1 | ||
| 61315A - RETAINER, DOOR LOCK STRIKER | ||||
| 61315-22020 |
SXA1# |
1 | ||
| 61315-16020 |
SXA1# |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-16020 |
SXA1# |
1 | ||
| 61315-22020 |
SXA1# |
1 | ||
| 61315D - RETAINER, DOOR LOCK STRIKER, LH | ||||
| 61315-16020 |
SXA1# |
1 | ||
| 61315-22020 |
SXA1# |
1 | ||
| 61315E - RETAINER, REAR DOOR LOCK STRIKER, RH | ||||
| 61315-16020 |
SXA11 |
1 | ||
| 61315-22020 |
SXA11 |
1 | ||
| 61315F - RETAINER, REAR DOOR LOCK STRIKER, LH | ||||
| 61315-22020 |
SXA11 |
1 | ||
| 61315-16020 |
SXA11 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-42021 |
SXA11 |
1 | ||
| 61411-42023 |
SXA11 |
1 | ||
| 61411-42060 |
SXA11 |
1 | ||
| 61411-42022 |
SXA11 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-42021 |
SXA11 |
1 | ||
| 61412-42023 |
SXA11 |
1 | ||
| 61412-42022 |
SXA11 |
1 | ||
| 61412-42060 |
SXA11 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-42020 |
SXA11 |
1 | ||
| 61413-42040 |
SXA11 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-42040 |
SXA11 |
1 | ||
| 61414-42020 |
SXA11 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-42904 |
SXA11 |
1 | ||
| 61603-42901 |
SXA11 |
1 | ||
| 61603-42040 |
SXA11 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-42050 |
SXA11 |
1 | ||
| 61604-42901 |
SXA11 |
1 | ||
| 61604-42903 |
SXA11 |
1 | ||
| 61610E - FENDER ASSY, REAR RH | ||||
| 61610-42020 |
SXA11 |
1 | ||
| 61610-42021 |
SXA11 |
1 | ||
| 61610-42041 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61610-42040 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-42010 |
SXA1# |
1 | ||
| 61620E - FENDER ASSY, REAR LH | ||||
| 61620-42020 |
SXA11 |
1 | ||
| 61620-42050 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61620-42051 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61620-42021 |
SXA11 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-42010 |
SXA1#..HT |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-42010 |
SXA1#..HT |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-42010 |
SXA1# |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-42010 |
SXA1# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-42010 |
SXA1# |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-42010 |
SXA1# |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-42020 |
SXA11 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-42020 |
SXA11 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-42020 |
SXA11 |
1 | ||
| 61631-42021 |
SXA11 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-42020 |
SXA11 |
1 | ||
| 61632-42021 |
SXA11 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-42010 |
SXA11 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-42010 |
SXA11 |
1 | ||
| 61637E - BRACKET, QUARTER WHEEL HOUSE | ||||
| 61637-42010 |
SXA11 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-42020 |
SXA11 |
1 | ||
| 61645-42021 |
SXA11 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-42020 |
SXA11 |
1 | ||
| 61646-42021 |
SXA11 |
1 | ||
| 61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61655-42011 |
SXA11 |
1 | ||
| 61655-42010 |
SXA11 |
1 | ||
| 61691B - BRACKET, FUEL TANK PROTECTOR | ||||
| 61691-42010 |
SXA1# |
2 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61705-42020 |
SXA11 |
1 | ||
| 61705-42060 |
SXA11 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61706-42070 |
SXA11 |
1 | ||
| 61706-42020 |
SXA11 |
1 | ||
| 61779B - PLATE, BACK DOOR OPENING, LOWER LH | ||||
| 61779-42010 |
SXA1# |
1 | ||
| 61815E - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61825-12010 |
SXA1# |
1 | ||
| 63161-22010 |
SXA1# |
1 | ||
| 61816C - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 63161-22010 |
SXA1# |
1 | ||
| 61825-12010 |
SXA1# |
1 | ||
| 67362 - REINFORCEMENT, BACK DOOR UPPER HINGE, LH | ||||
| 67362-42010 |
SXA1# |
1 | ||
| 67364A - REINFORCEMENT, BACK DOOR LOWER HINGE, LH | ||||
| 67364-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90179-08063 | ||||
| 90189-06150 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90950-01419 | ||||
| 90950-01424 | ||||
| 90950-01506 | ||||
| 90950-01631 | ||||
| 90950-01645 | ||||
| 90950-01871 | ||||
| 90950-06001 | ||||
| 90950-06051 | ||||
| 90950-06162 | ||||
| 91651-60816 | ||||
| 91655-B0616 | ||||
(9709- )SXA11..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53882J - SEAL, FRONT FENDER | ||||
| 53882-22080 |
SXA1# |
4 | ||
| 58133 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-22030 |
SXA1# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-42031 |
SXA11..LHD |
1 | ||
| 61023-42031 |
SXA11 |
1 | ||
| 61023-42050 |
SXA1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-42041 |
SXA11 |
1 | ||
| 61024-42040 |
SXA11..LHD |
1 | ||
| 61031C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61031-42020 |
SXA11 |
1 | ||
| 61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61032-42020 |
SXA11 |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-42010 |
SXA1#..LHD |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-42010 |
SXA1# |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-42010 |
SXA1# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-42011 |
SXA1# |
1 | ||
| 61108-42010 |
SXA1# |
1 | ||
| 61108-42030 |
SXA11 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-42010 |
SXA1# |
1 | ||
| 61109-42030 |
SXA11 |
1 | ||
| 61109-42011 |
SXA1# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61110-42040 |
SXA1# |
1 | ||
| 61110-42041 |
SXA1# |
1 | ||
| 61110-42040 |
SXA11 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61120-42040 |
SXA11 |
1 | ||
| 61120-42040 |
SXA1# |
1 | ||
| 61120-42041 |
SXA1# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
SXA1# |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61134-12190 |
SXA1# |
1 | ||
| 61133-12190 |
SXA1# |
1 | ||
| 61192A - BRACKET, COMPUTER TO COWL SIDE, NO.2 | ||||
| 61192-42010 |
SXA1# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-42020 |
SXA11..EUR,GEN |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-42020 |
SXA11 |
1 | ||
| 61212-42040 |
SXA11..LHD W(ANTENNA HOLE) |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-42900 |
SXA11 |
1 | ||
| 61303-42020 |
SXA11 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-42020 |
SXA11 |
1 | ||
| 61304-42900 |
SXA11 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-42900 |
SXA11 |
1 | ||
| 61307-42040 |
SXA11 W(MOON ROOF) |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-42900 |
SXA11 |
1 | ||
| 61308-42040 |
SXA11 W(MOON ROOF) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-42011 |
SXA11 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-42011 |
SXA11 |
1 | ||
| 61315A - RETAINER, DOOR LOCK STRIKER | ||||
| 61315-22020 |
SXA1# |
1 | ||
| 61315-16020 |
SXA1# |
1 | ||
| 61387E - EXTENSION, CENTER BODY PILLAR, LOWER RH | ||||
| 61387-42010 |
SXA11 |
1 | ||
| 61388B - EXTENSION, CENTER BODY PILLAR, LOWER LH | ||||
| 61387-42010 |
SXA11 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-42020 |
SXA11 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-42020 |
SXA11 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-42021 |
SXA11 |
1 | ||
| 61411-42023 |
SXA11 |
1 | ||
| 61411-42060 |
SXA11 |
1 | ||
| 61411-42022 |
SXA11 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-42021 |
SXA11 |
1 | ||
| 61412-42023 |
SXA11 |
1 | ||
| 61412-42022 |
SXA11 |
1 | ||
| 61412-42060 |
SXA11 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-42020 |
SXA11 |
1 | ||
| 61413-42040 |
SXA11 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-42040 |
SXA11 |
1 | ||
| 61414-42020 |
SXA11 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-42904 |
SXA11 |
1 | ||
| 61603-42901 |
SXA11 |
1 | ||
| 61603-42040 |
SXA11 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-42050 |
SXA11 |
1 | ||
| 61604-42901 |
SXA11 |
1 | ||
| 61604-42903 |
SXA11 |
1 | ||
| 61610E - FENDER ASSY, REAR RH | ||||
| 61610-42020 |
SXA11 |
1 | ||
| 61610-42021 |
SXA11 |
1 | ||
| 61610-42041 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61610-42040 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-42010 |
SXA1# |
1 | ||
| 61620E - FENDER ASSY, REAR LH | ||||
| 61620-42020 |
SXA11 |
1 | ||
| 61620-42050 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61620-42051 |
SXA11..EUR W(OVER FENDER) |
1 | ||
| 61620-42021 |
SXA11 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-42010 |
SXA1#..HT |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-42010 |
SXA1#..HT |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-42010 |
SXA1# |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-42010 |
SXA1# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-42010 |
SXA1# |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-42010 |
SXA1# |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-42020 |
SXA11 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-42020 |
SXA11 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-42020 |
SXA11 |
1 | ||
| 61631-42021 |
SXA11 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-42020 |
SXA11 |
1 | ||
| 61632-42021 |
SXA11 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-42010 |
SXA11 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-42010 |
SXA11 |
1 | ||
| 61637E - BRACKET, QUARTER WHEEL HOUSE | ||||
| 61637-42010 |
SXA11 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-42020 |
SXA11 |
1 | ||
| 61645-42021 |
SXA11 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-42020 |
SXA11 |
1 | ||
| 61646-42021 |
SXA11 |
1 | ||
| 61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61655-42011 |
SXA11 |
1 | ||
| 61655-42010 |
SXA11 |
1 | ||
| 61691B - BRACKET, FUEL TANK PROTECTOR | ||||
| 61691-42010 |
SXA1# |
2 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61705-42020 |
SXA11 |
1 | ||
| 61705-42060 |
SXA11 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61706-42070 |
SXA11 |
1 | ||
| 61706-42020 |
SXA11 |
1 | ||
| 61779B - PLATE, BACK DOOR OPENING, LOWER LH | ||||
| 61779-42010 |
SXA1# |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
SXA1# |
2 | ||
| 67362 - REINFORCEMENT, BACK DOOR UPPER HINGE, LH | ||||
| 67362-42010 |
SXA1# |
1 | ||
| 67364A - REINFORCEMENT, BACK DOOR LOWER HINGE, LH | ||||
| 67364-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90119-06384 | ||||
| 90179-08063 | ||||
| 90189-06150 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90950-01424 | ||||
| 90950-01506 | ||||
| 90950-01631 | ||||
| 90950-01646 | ||||
| 90950-01871 | ||||
| 90950-06001 | ||||
| 90950-06051 | ||||
| 90950-06089 | ||||
| 91626-60820 | ||||
| 91626-B0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
