SXA11L-AWMGKW (1995)

Toyota Rav4

Production Apr 1995 - May 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

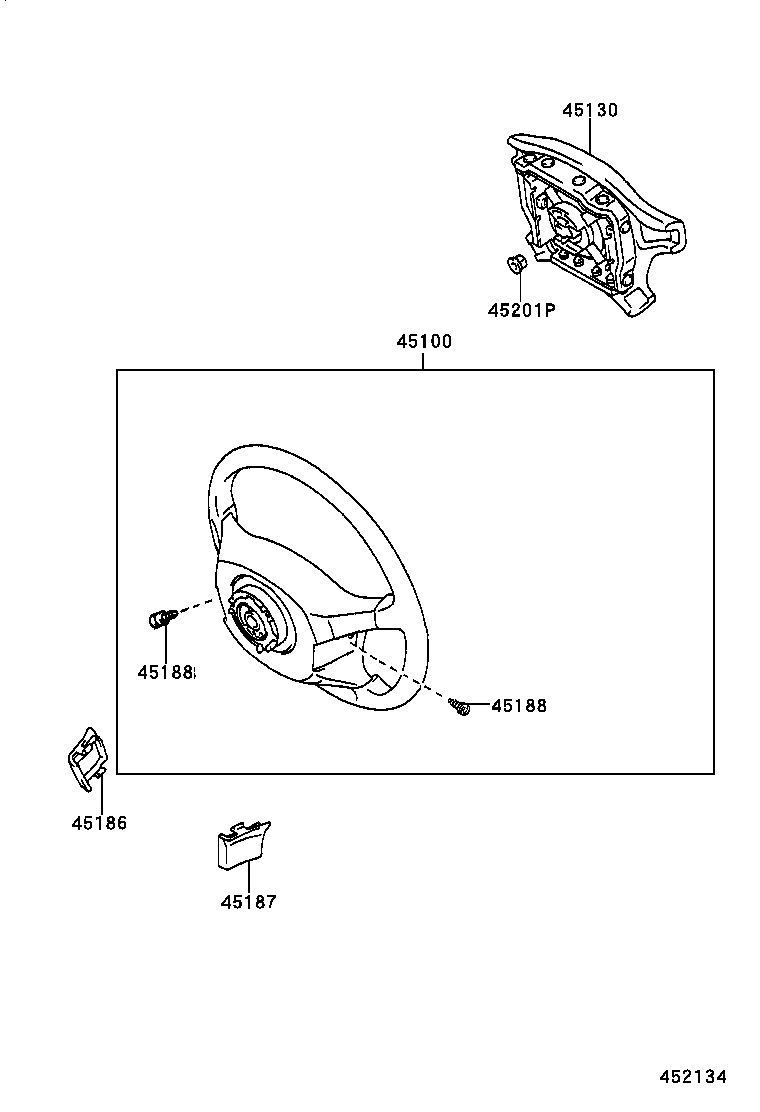

Click highlighted areas on diagram

3-SPOKE, W(*80)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B290C0

SXA1#..ARL,EUR,GEN

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B460C0

SXA1#

4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45100-42010C0

SXA1#..ARL,EUR,GCC

4-SPOKE,W(*80),BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-42020C0

SXA1#..ARL,EUR,GCC

W(*80),BLACK,TRIM1#

 1
45130-42040C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1

(9404-9608)

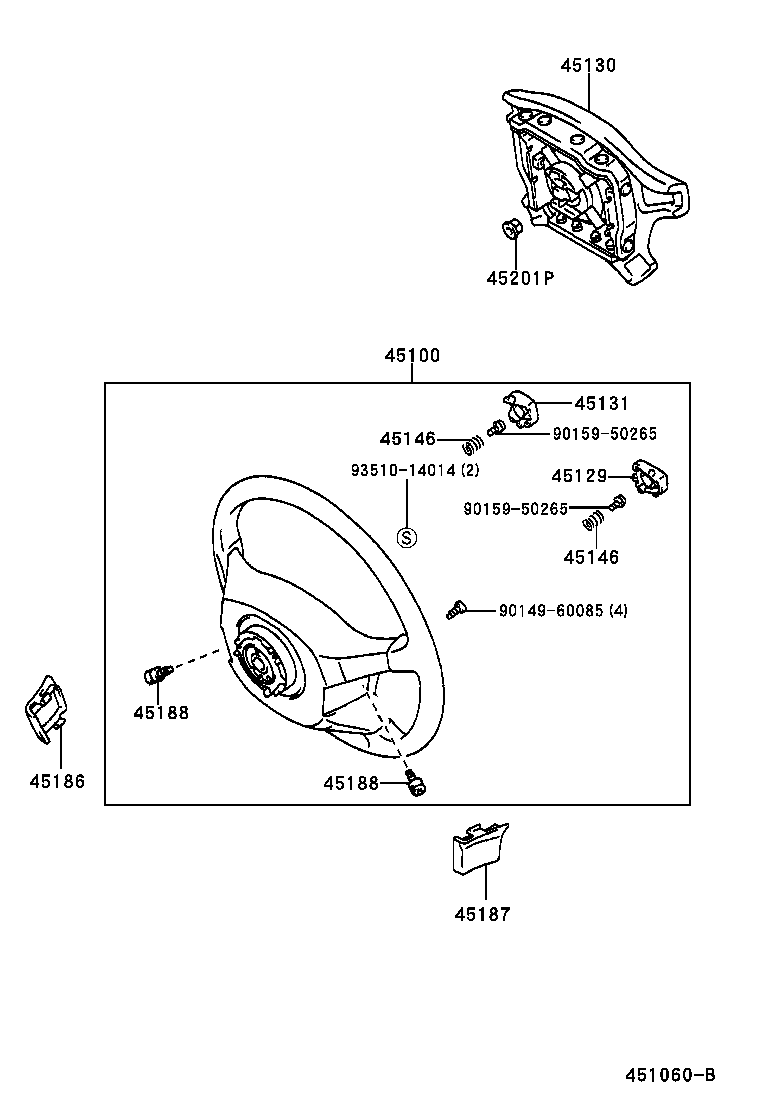

Click highlighted areas on diagram

4-SPOKE, W(*80)

diagram 45100 45129 45130 45131 45146 45146 45186 45187 45188 45188 45201P 9014960085 9015950265 9015950265 9351014014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B290C0

SXA1#..ARL,EUR,GEN

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B460C0

SXA1#

4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45100-42010C0

SXA1#..ARL,EUR,GCC

4-SPOKE,W(*80),BLACK,TRIM1#

 1
45129 - BUTTON, HORN, NO.2
45129-20130C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-42020C0

SXA1#..ARL,EUR,GCC

W(*80),BLACK,TRIM1#

 1
45130-42040C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45131 - BUTTON, HORN, NO.1
45131-20250C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-20260

SXA1#..ARL,EUR,GCC

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20260

SXA1#..ARL,EUR,GCC

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45186-20050C0

SXA1#

BLACK,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20040C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45187-20050C0

SXA1#

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1
Common parts
90149-60085
90159-50265
93510-14014

(9608-9709)

Click highlighted areas on diagram

4-SPOKE, W(*80)

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B290C0

SXA1#..ARL,EUR,GEN

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-2B460C0

SXA1#

4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45100-42010C0

SXA1#..ARL,EUR,GCC

4-SPOKE,W(*80),BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-42020C0

SXA1#..ARL,EUR,GCC

W(*80),BLACK,TRIM1#

 1
45130-42040C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45186-20050C0

SXA1#

BLACK,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20040C0

SXA1#..ARL,EUR,GCC

BLACK,TRIM1#

 1
45187-20050C0

SXA1#

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60036

SXA1#

L=18.0

 2
90148-60007

SXA1#

L=18

 2
90148-60007

SXA1#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1
