SXA11L-AWMGK (1995)

Toyota Rav4

Production Apr 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

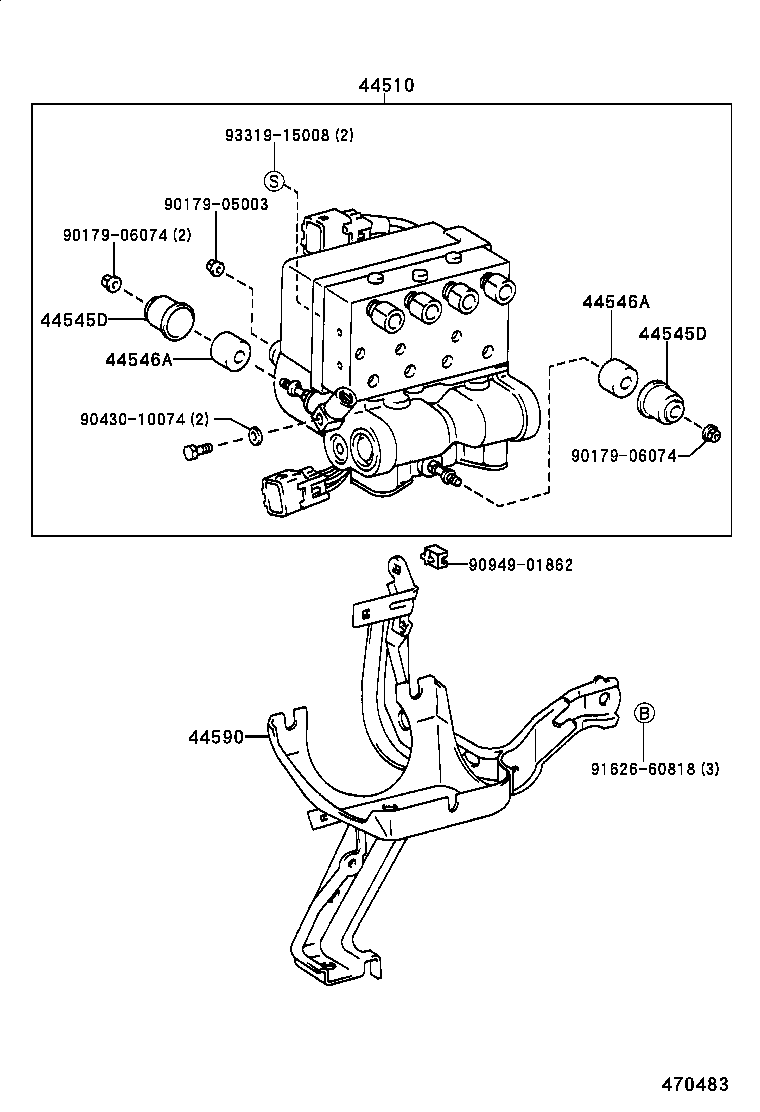

ILLUST NO. 2 OF 2(9404-9608)

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44590 9017905003 9017906074 9017906074 9043010074 9094901862 9162660818 9331915008
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-42010

SXA1#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

SXA1#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

SXA1#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

SXA1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

SXA1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-42030

SXA1#

 1
Common parts
90179-05003
90179-06074
90430-10074
90949-01862
91626-60818
93319-15008

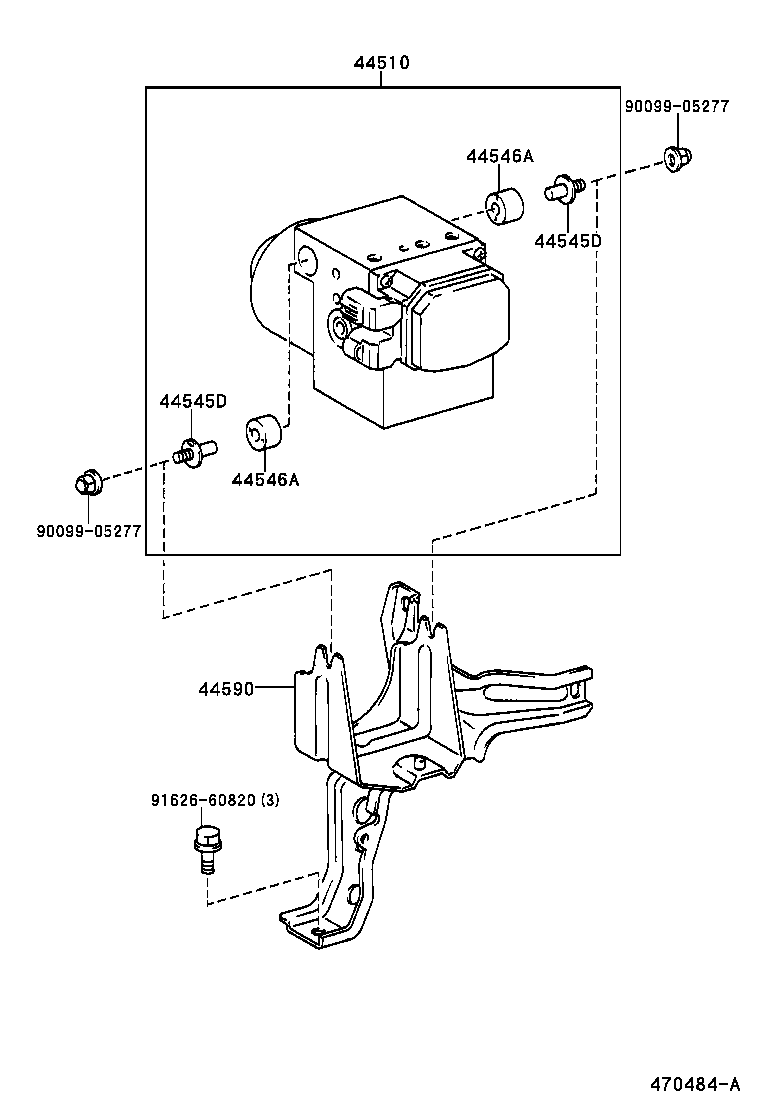

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44590 9009905277 9009905277 9162660820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-42010

SXA1#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

SXA1#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

SXA1#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

SXA1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

SXA1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-42030

SXA1#

 1
Common parts
90099-05277
91626-60820

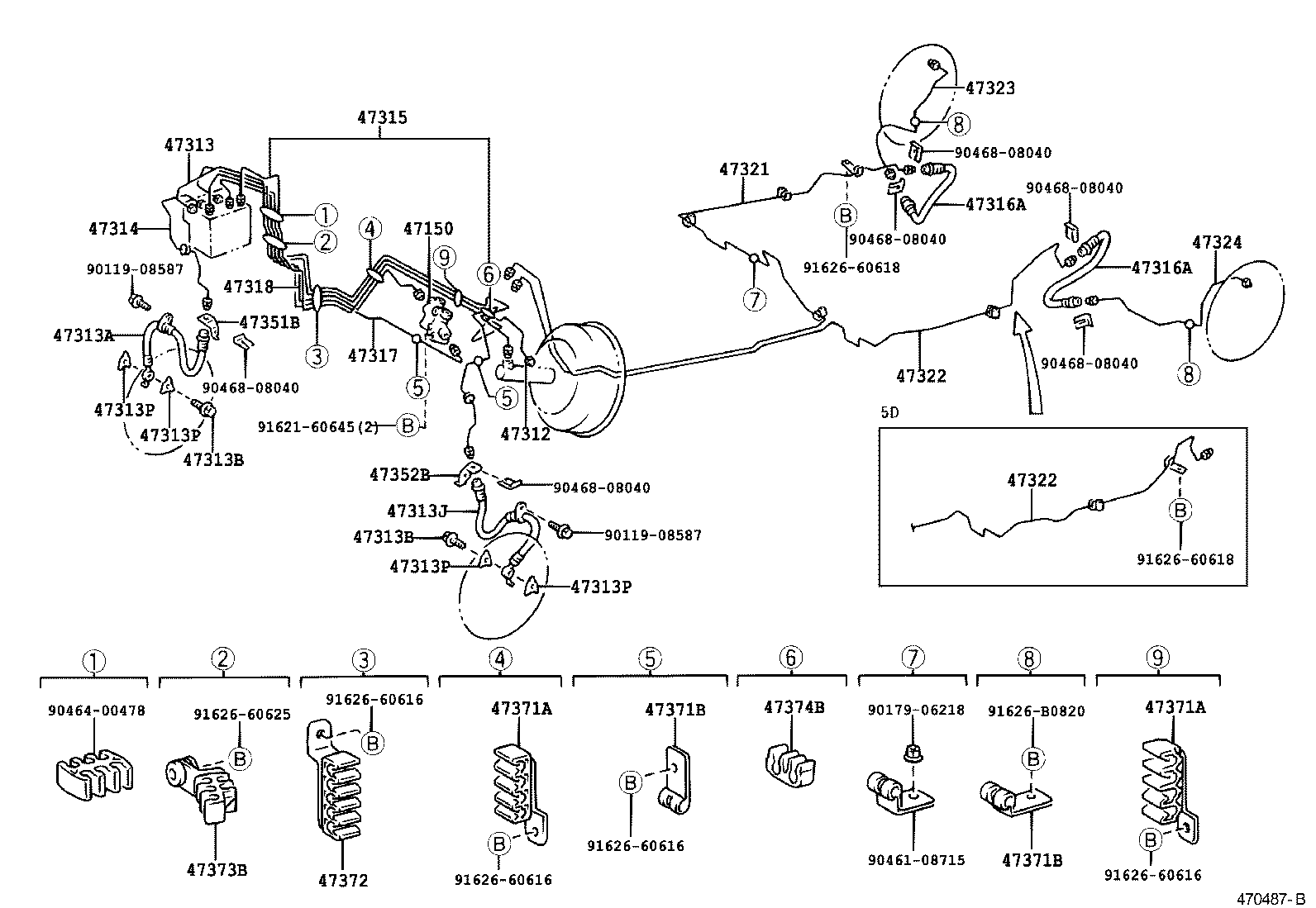

ILLUST NO. 1 OF 2(9404-9608)LHD

Click highlighted areas on diagram

W(ABS)

diagram 47150 47311 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47317 47318 47321 47322 47322 47323 47324 47351B 47352B 47371A 47371B 47372 47373B 47374B 47375 9011908587 9011908587 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9048001555 9162660618 9165560650 9165660616 9165660616 9165660616 91656B0820 9166660625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

SXA11

W(ABS)

 1
47150-42030

SXA11

W(ABS)

 1
47150-42020

SXA11

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-42040

SXA1#..LHD

 1
47311-42020

SXA1#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-42070

SXA1#..LHD

 1
47312-42030

SXA1#..LHD

 1
47312-42060

SXA1#..LHD

W(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-42030

SXA1#..LHD

 1
47313-42070

SXA1#..LHD

 1
47313-42060

SXA1#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02781

SXA1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02782

SXA1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-42020

SXA1#..LHD

 1
47314-42040

SXA1#

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-42030

SXA1#..LHD

 1
47315-42060

SXA1#..LHD

W(ABS)

 1
47315-42070

SXA1#..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-42030

SXA1#..LHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-42030

SXA1#..LHD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-42030

SXA11

 1
47321-42031

SXA11..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-42030

SXA11

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-42030

SXA11

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-42010

SXA1#

 1
47323-42010

SXA1#..EUR,GCC,GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-42010

SXA1#..EUR,GCC,GEN

 1
47324-42010

SXA1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-42020

SXA1#

 1
47351-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-42020

SXA1#

 1
47352-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20250

SXA1#..LHD

 1
47371-42070

SXA1#

W(ABS)

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06112

SXA1#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06119

SXA1#..LHD

 1
47371-20070

SXA1#..LHD

W(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-42060

SXA1#..LHD

W(ABS)

 1
90461-06957

SXA1#..LHD

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90461-06957

SXA1#..LHD..HT

W(ABS)

 2
Common parts
90119-08587
90468-08040
90480-01555
91626-60618
91655-60650
91656-60616
91656-B0820
91666-60625

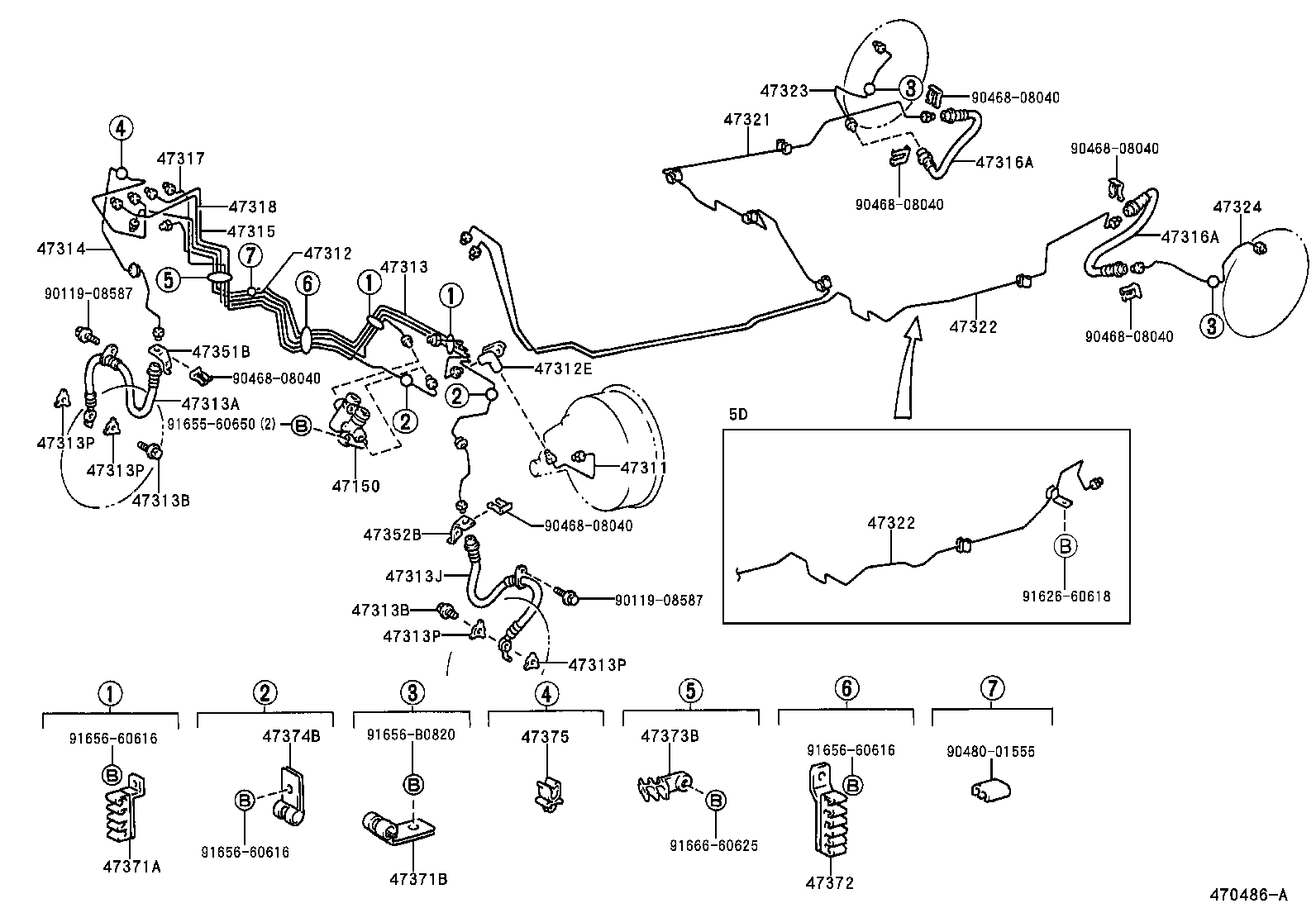

ILLUST NO. 1 OF 2(9608- )LHD

Click highlighted areas on diagram

W(ABS)

diagram 47150 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47317 47318 47321 47322 47322 47323 47324 47351B 47352B 47371A 47371A 47371B 47371B 47372 47373B 47374B 9011908587 9011908587 9017906218 9046108715 9046400478 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9162160645 9162660616 9162660616 9162660616 9162660616 9162660618 9162660618 9162660625 91626B0820
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

SXA11

W(ABS)

 1
47150-42030

SXA11

W(ABS)

 1
47150-42020

SXA11

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-42070

SXA1#..LHD

 1
47312-42030

SXA1#..LHD

 1
47312-42060

SXA1#..LHD

W(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-42030

SXA1#..LHD

 1
47313-42070

SXA1#..LHD

 1
47313-42060

SXA1#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02781

SXA1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02782

SXA1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-42020

SXA1#..LHD

 1
47314-42040

SXA1#

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-42030

SXA1#..LHD

 1
47315-42060

SXA1#..LHD

W(ABS)

 1
47315-42070

SXA1#..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-42030

SXA1#..LHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-42030

SXA1#..LHD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-42030

SXA11

 1
47321-42031

SXA11..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-42030

SXA11

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-42030

SXA11

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-42010

SXA1#

 1
47323-42010

SXA1#..EUR,GCC,GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-42010

SXA1#..EUR,GCC,GEN

 1
47324-42010

SXA1#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-42020

SXA1#

 1
47351-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-42020

SXA1#

 1
47352-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20250

SXA1#..LHD

 1
47371-42070

SXA1#

W(ABS)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20250

SXA1#..LHD

 1
47371-42070

SXA1#

W(ABS)

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06112

SXA1#

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06112

SXA1#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06119

SXA1#..LHD

 1
47371-20070

SXA1#..LHD

W(ABS)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-42060

SXA1#..LHD

W(ABS)

 1
90461-06957

SXA1#..LHD

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90461-06957

SXA1#..LHD..HT

W(ABS)

 2
Common parts
90119-08587
90179-06218
90461-08715
90464-00478
90468-08040
91621-60645
91626-60616
91626-60618
91626-60625
91626-B0820
