SXA10R-AZPGKW (1994)

Toyota Rav4

Production Apr 1994 - May 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

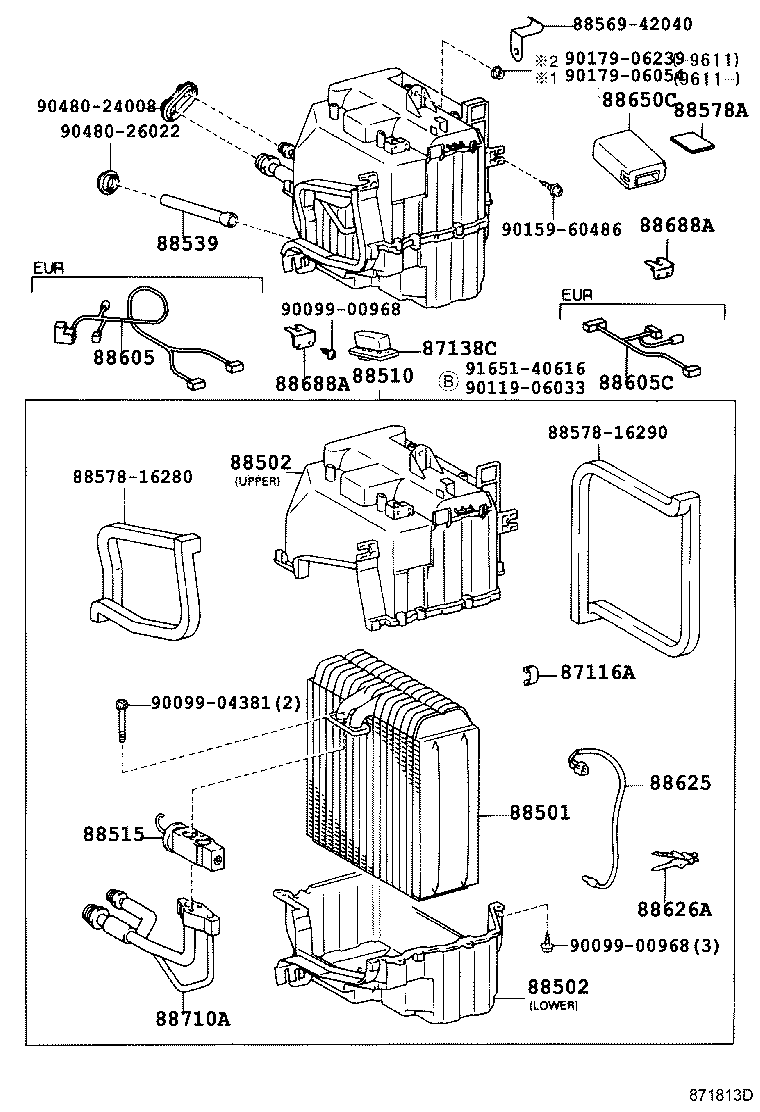

ILLUST NO. 1 OF 2(9404- )RHD

Click highlighted areas on diagram

diagram 87116A 87138C 88501 88502 88502 88510 88515 88539 8856942040 8857816280 8857816290 88578A 88605 88605C 88625 88626A 88650C 88688A 88688A 88710A 9009900968 9009900968 9009904381 9011906033 9015960486 9017906054 9017906239 9048024008 9048026022 9165140616
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

SXA1#..ARL,EUR,GEN

 3
87138C - RESISTOR, BLOWER
87138-42010

SXA1#..EUR,GCC,GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-42011

SXA1#..RHD

 1
88501-42010

SXA10..RHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-42020

SXA1#..RHD

LOWER

 1
88502-42010

SXA1#..RHD

UPPER

 1
88502-42011

SXA1#..RHD

UPPER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-42020

SXA1#..RHD

LOWER

 1
88502-42010

SXA1#..RHD

UPPER

 1
88502-42011

SXA1#..RHD

UPPER

 1
88510 - UNIT ASSY, COOLER
88510-42031

SXA1#..RHD

 1
88510-42030

SXA1#..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

SXA1#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42010

SXA1#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-42010

SXA1#..RHD..(EUR,GEN)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-42010

SXA1#..EUR

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-42020

SXA1#..EUR

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20340

SXA1#

 1
88626A - HOLDER, THERMISTOR
88626-28010

SXA1#

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-42010

SXA1#

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-42050

SXA1#

 1
88688-42050

SXA1#..RHD..(ARL,EUR)

 1
88688-42050

SXA1#..RHD

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-42050

SXA1#

 1
88688-42050

SXA1#..RHD..(ARL,EUR)

 1
88688-42050

SXA1#..RHD

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-42010

SXA1#..RHD

 1
Common parts
88569-42040
88578-16280
88578-16290
90099-00968
90099-04381
90119-06033
90159-60486
90179-06054
90179-06239
90480-24008
90480-26022
91651-40616
