SXA10R-AZMGKW (1994)

Toyota Rav4

Production Apr 1994 - May 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )SXA10..HT ; (9404- )SXA11..ARL,EUR; (9404- )SXA11..MTM..GEN

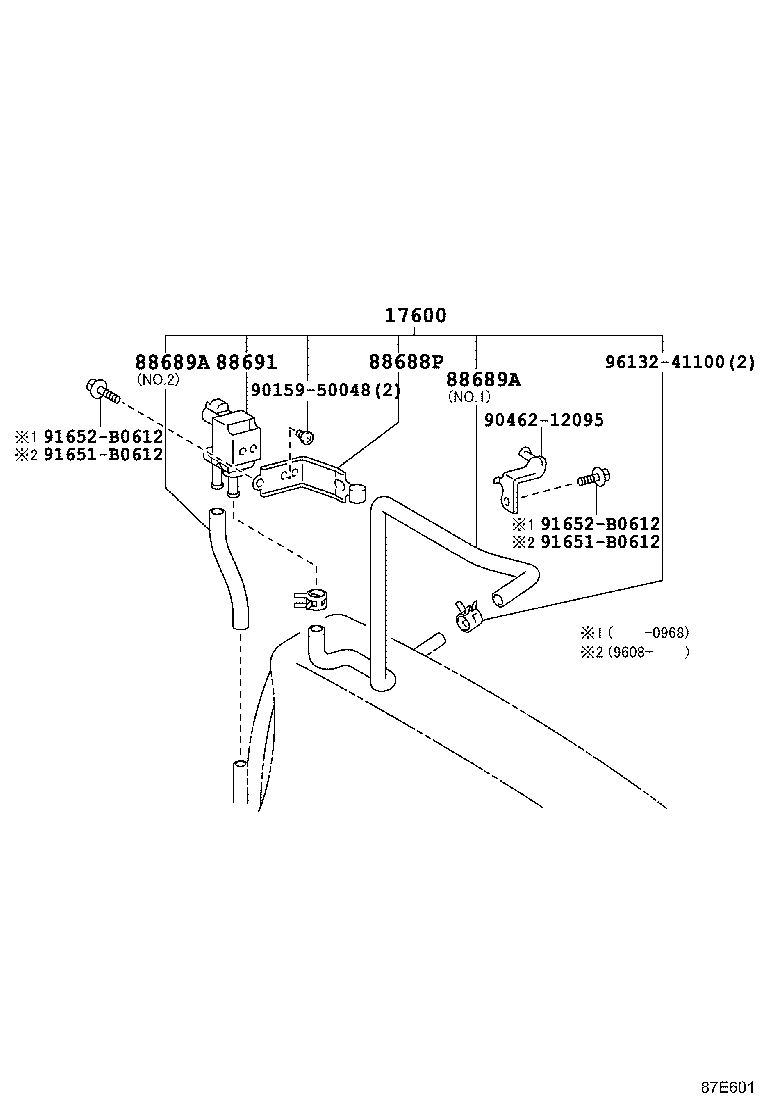

Click highlighted areas on diagram

diagram 17600 88688P 88689A 88689A 88691 9015950048 9046212095 91651B0612 91651B0612 91652B0612 91652B0612 9613241100
Part # Description Qty Price
17600 - VALVE ASSY, AIR BY-PASS W/HOSE
17600-74220

3SFE..SXA1#

 1
88688P - BRACKET (FOR MAGNET VALVE)
88688-2D580

SXA1#

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20390

SXA1#

L=100,NO.2

 1
17347-74060

SXA1#

NO.1

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20390

SXA1#

L=100,NO.2

 1
17347-74060

SXA1#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
90910-13004

SXA1#

 1
Common parts
90159-50048
90462-12095
91651-B0612
91652-B0612
96132-41100
