SXA10R-AZMGKQ (1994)
Toyota Rav4

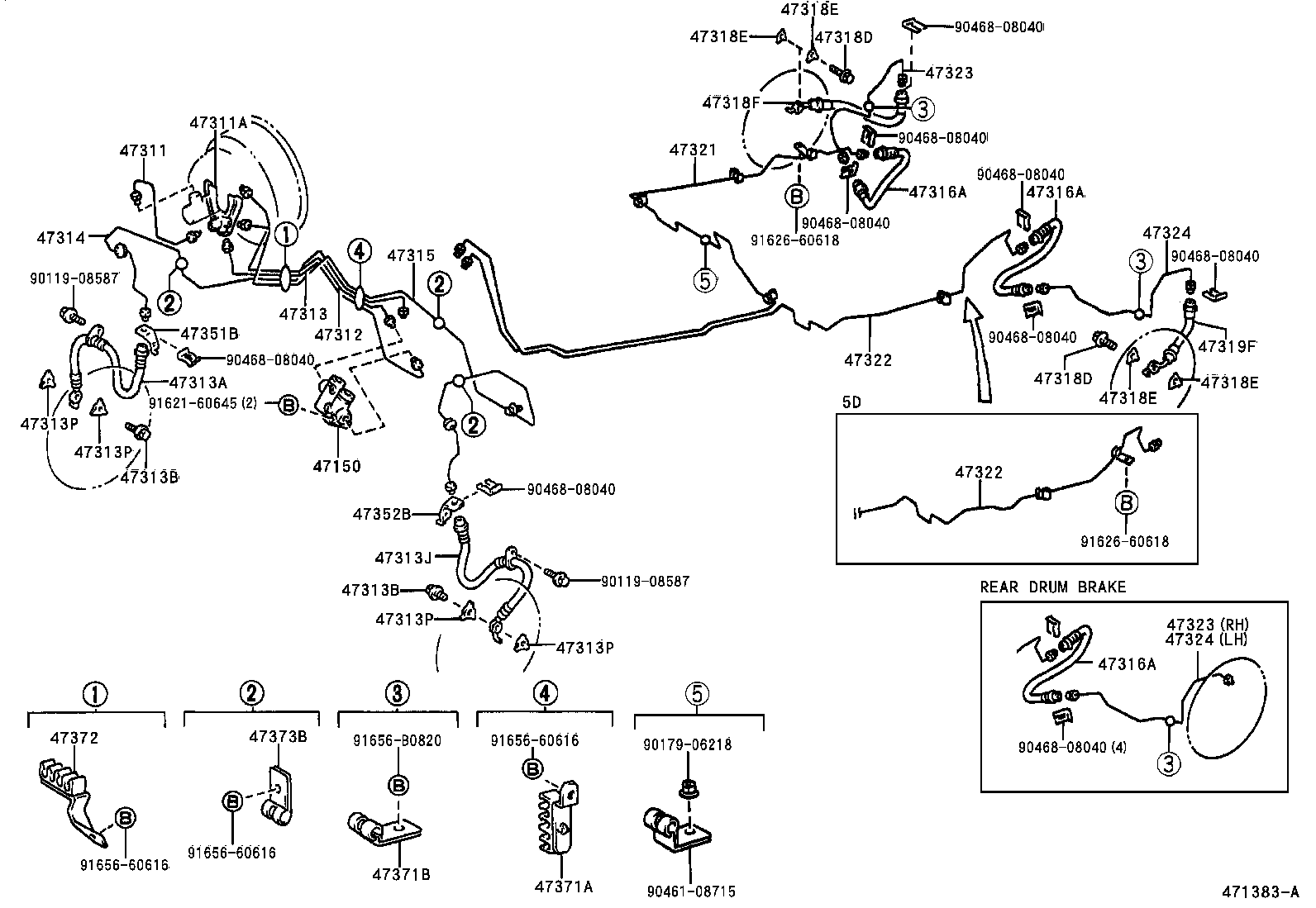

ILLUST NO. 1 OF 2(9404-9608)RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-42010 |
SXA10..ARL,EUR,GCC W(ABS) |
1 | ||
| 47150-12050 |
SXA10 |
1 | ||
| 47150-42010 |
SXA10 W(ABS) |
1 | ||
| 47150-20280 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-12230 |
SXA10 |
1 | ||
| 47150-20360 |
SXA10 |
1 | ||
| 47150-20370 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-20280 |
SXA10 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42040 |
SXA1#..RHD |
1 | ||
| 47312-42041 |
SXA1#..RHD |
1 | ||
| 47312-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47312-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42041 |
SXA1#..RHD |
1 | ||
| 47313-42040 |
SXA1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02781 |
SXA1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02782 |
SXA1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42040 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42010 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42030 |
SXA1#..RHD |
1 | ||
| 47314-42040 |
SXA1# W(ABS) |
1 | ||
| 47314-42031 |
SXA1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47315-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42041 |
SXA1#..RHD |
1 | ||
| 47315-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42040 |
SXA1#..RHD |
1 | ||
| 47315-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42020 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47317-42041 |
SXA1#..RHD W(ABS) |
1 | ||
| 47317-42040 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47317-42040 |
SXA1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42040 |
SXA1#..RHD |
1 | ||
| 47318-42040 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47318-42020 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47318-42041 |
SXA1#..RHD W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42010 |
SXA10 |
1 | ||
| 47321-42050 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47321-42070 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-42010 |
SXA1# |
1 | ||
| 47323-42030 |
SXA1#..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-42010 |
SXA1# |
1 | ||
| 47324-42030 |
SXA1#..ARL |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42020 |
SXA1# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42020 |
SXA1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20250 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42070 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47371-20070 |
SXA1#..RHD |
1 | ||
| 47371-20270 |
SXA1#..RHD |
1 | ||
| 47371-42070 |
SXA1# W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-06112 |
SXA1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
2 | ||
| 47371-42080 |
SXA1#..RHD |
1 | ||
| 47371-42020 |
SXA1#..RHD W(ABS) |
2 | ||
| 47371-42090 |
SXA1#..RHD W(ABS) |
1 | ||
| 47371-42050 |
SXA1#..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06957 |
SXA1#..RHD |
3 | ||
| 47371-42030 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42030 |
SXA1#..RHD W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90461-06957 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 90461-06957 |
SXA1#..RHD;SXA10..LHD..CVT |
2 | ||
| 90461-06957 |
SXA1#..RHD..(ARL,EUR) |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01862 |
SXA1#..ARL,EUR,GCC |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90468-08040 | ||||
| 91626-60618 | ||||
| 91655-60650 | ||||
| 91656-60616 | ||||
| 91656-B0820 | ||||
| 91666-60625 | ||||
ILLUST NO. 2 OF 2(9404-9608)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-42010 |
SXA1# |
1 | ||
| 44510-42020 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44510-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44050-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545-42020 |
SXA1# |
2 | ||
| 44545-42020 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545-42020 |
SXA1# |
2 | ||
| 44545-42020 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44546-42020 |
SXA1#..ARL,EUR,GCC |
3 | ||
| 44546-42020 |
SXA1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44546-42020 |
SXA1#..ARL,EUR,GCC |
3 | ||
| 44546-42020 |
SXA1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-42030 |
SXA1# |
1 | ||
| 44590-42030 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44590-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| Common parts | ||||
| 90179-05003 | ||||
| 90179-06074 | ||||
| 90430-10074 | ||||
| 90949-01862 | ||||
| 91626-60818 | ||||
| 93319-15008 | ||||
ILLUST NO. 2 OF 2(9608- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-42010 |
SXA1# |
1 | ||
| 44510-42020 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44510-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44050-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545-42020 |
SXA1# |
2 | ||
| 44545-42020 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44545-42020 |
SXA1# |
2 | ||
| 44545-42020 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44546-42020 |
SXA1#..ARL,EUR,GCC |
3 | ||
| 44546-42020 |
SXA1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44546-42020 |
SXA1#..ARL,EUR,GCC |
3 | ||
| 44546-42020 |
SXA1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-42030 |
SXA1# |
1 | ||
| 44590-42030 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 44590-42010 |
SXA1#..ARL,EUR,GCC |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60820 | ||||

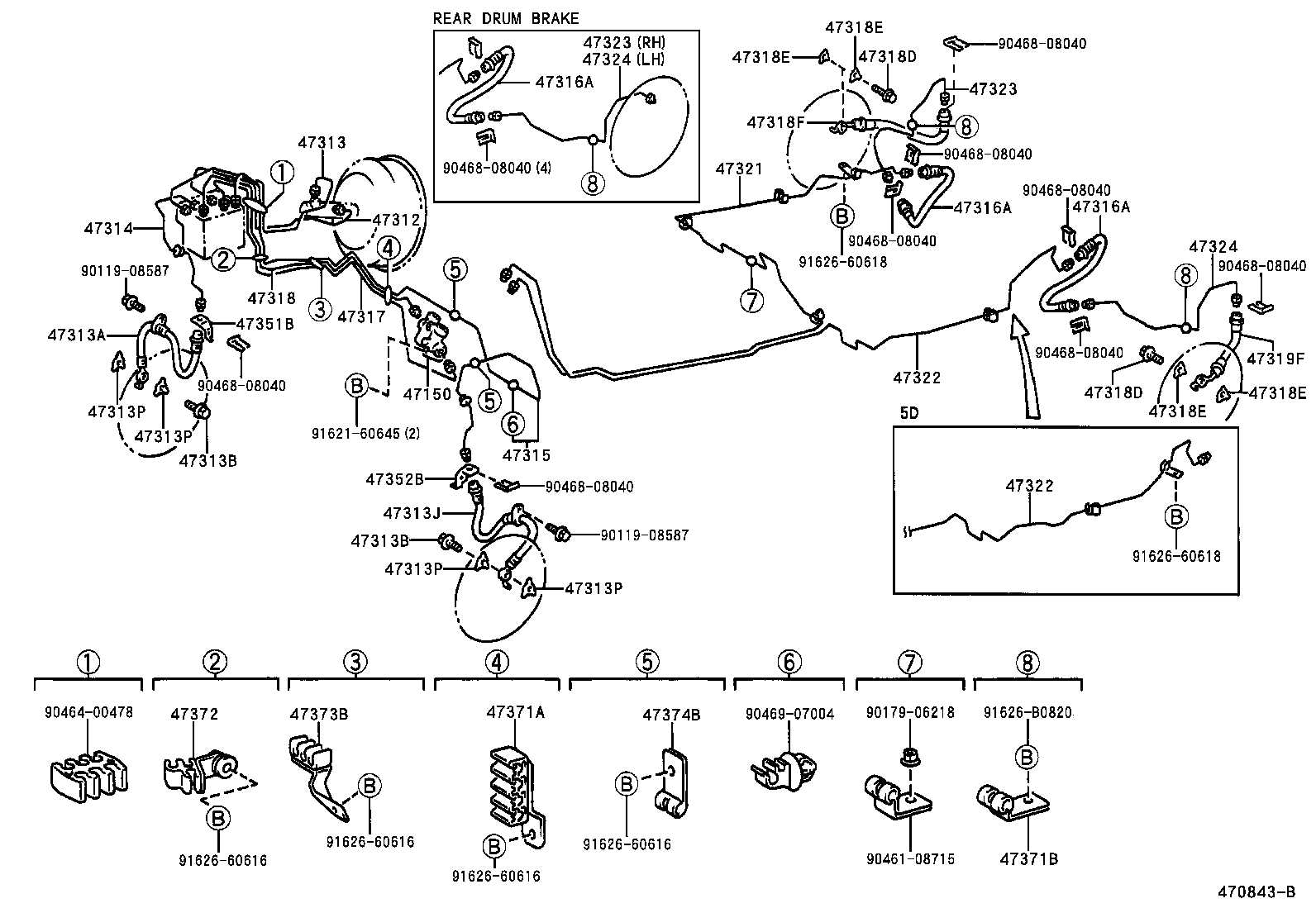

ILLUST NO. 1 OF 2(9608- )ARL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-42010 |
SXA10..ARL,EUR,GCC W(ABS) |
1 | ||
| 47150-12050 |
SXA10 |
1 | ||
| 47150-42010 |
SXA10 W(ABS) |
1 | ||
| 47150-20280 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-12230 |
SXA10 |
1 | ||
| 47150-20360 |
SXA10 |
1 | ||
| 47150-20370 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-20280 |
SXA10 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42040 |
SXA1#..RHD |
1 | ||
| 47312-42041 |
SXA1#..RHD |
1 | ||
| 47312-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47312-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42041 |
SXA1#..RHD |
1 | ||
| 47313-42040 |
SXA1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02781 |
SXA1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02782 |
SXA1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42040 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42010 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42030 |
SXA1#..RHD |
1 | ||
| 47314-42040 |
SXA1# W(ABS) |
1 | ||
| 47314-42031 |
SXA1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47315-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42041 |
SXA1#..RHD |
1 | ||
| 47315-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42040 |
SXA1#..RHD |
1 | ||
| 47315-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42020 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47317-42041 |
SXA1#..RHD W(ABS) |
1 | ||
| 47317-42040 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47317-42040 |
SXA1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42040 |
SXA1#..RHD |
1 | ||
| 47318-42040 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47318-42020 |
SXA1#..RHD..(ARL,EUR) |
1 | ||
| 47318-42041 |
SXA1#..RHD W(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1#..ARL |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02980 |
SXA1#..ARL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02981 |
SXA1#..ARL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42010 |
SXA10 |
1 | ||
| 47321-42050 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47321-42070 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-42010 |
SXA1# |
1 | ||
| 47323-42030 |
SXA1#..ARL |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-42010 |
SXA1# |
1 | ||
| 47323-42030 |
SXA1#..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-42010 |
SXA1# |
1 | ||
| 47324-42030 |
SXA1#..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-42010 |
SXA1# |
1 | ||
| 47324-42030 |
SXA1#..ARL |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42020 |
SXA1# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42020 |
SXA1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20250 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42070 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47371-20070 |
SXA1#..RHD |
1 | ||
| 47371-20270 |
SXA1#..RHD |
1 | ||
| 47371-42070 |
SXA1# W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-06112 |
SXA1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
2 | ||
| 47371-42080 |
SXA1#..RHD |
1 | ||
| 47371-42020 |
SXA1#..RHD W(ABS) |
2 | ||
| 47371-42090 |
SXA1#..RHD W(ABS) |
1 | ||
| 47371-42050 |
SXA1#..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06957 |
SXA1#..RHD |
3 | ||
| 47371-42030 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42030 |
SXA1#..RHD W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90461-06957 |
SXA1#..ARL,EUR,GCC |
2 | ||
| 90461-06957 |
SXA1#..RHD;SXA10..LHD..CVT |
2 | ||
| 90461-06957 |
SXA1#..RHD..(ARL,EUR) |
2 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90179-06218 | ||||
| 90461-08715 | ||||
| 90464-00478 | ||||
| 90468-08040 | ||||
| 90469-07004 | ||||
| 91621-60645 | ||||
| 91626-60616 | ||||
| 91626-60618 | ||||
| 91626-B0820 | ||||
(9404- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-42010 |
SXA10..ARL,EUR,GCC W(ABS) |
1 | ||
| 47150-12050 |
SXA10 |
1 | ||
| 47150-42010 |
SXA10 W(ABS) |
1 | ||
| 47150-20280 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-12230 |
SXA10 |
1 | ||
| 47150-20360 |
SXA10 |
1 | ||
| 47150-20370 |
SXA10..ARL,EUR W(ABS) |
1 | ||
| 47150-20280 |
SXA10 W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42010 |
SXA1#..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10171 |
SXA1#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42040 |
SXA1#..RHD |
1 | ||
| 47312-42041 |
SXA1#..RHD |
1 | ||
| 47312-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47312-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47312-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47313-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47313-42041 |
SXA1#..RHD |
1 | ||
| 47313-42040 |
SXA1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02781 |
SXA1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02782 |
SXA1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42040 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42010 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47314-42030 |
SXA1#..RHD |
1 | ||
| 47314-42040 |
SXA1# W(ABS) |
1 | ||
| 47314-42031 |
SXA1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47315-42080 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42041 |
SXA1#..RHD |
1 | ||
| 47315-42081 |
SXA1#..RHD W(ABS) |
1 | ||
| 47315-42040 |
SXA1#..RHD |
1 | ||
| 47315-42080 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02780 |
SXA1# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1#..ARL |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SXA1#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
SXA1#..ARL |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02980 |
SXA1#..ARL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02981 |
SXA1#..ARL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42010 |
SXA10 |
1 | ||
| 47321-42050 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47321-42070 |
SXA10..ARL,EUR,GCC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42010 |
SXA10 |
1 | ||
| 47322-42050 |
SXA10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-42010 |
SXA1# |
1 | ||
| 47323-42030 |
SXA1#..ARL |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-42010 |
SXA1# |
1 | ||
| 47323-42030 |
SXA1#..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-42010 |
SXA1# |
1 | ||
| 47324-42030 |
SXA1#..ARL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-42010 |
SXA1# |
1 | ||
| 47324-42030 |
SXA1#..ARL |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42020 |
SXA1# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42020 |
SXA1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20250 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42070 |
SXA1#..ARL,EUR,GCC W(ABS) |
1 | ||
| 47371-20070 |
SXA1#..RHD |
1 | ||
| 47371-20270 |
SXA1#..RHD |
1 | ||
| 47371-42070 |
SXA1# W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-06112 |
SXA1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-42020 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
2 | ||
| 47371-42080 |
SXA1#..RHD |
1 | ||
| 47371-42020 |
SXA1#..RHD W(ABS) |
2 | ||
| 47371-42090 |
SXA1#..RHD W(ABS) |
1 | ||
| 47371-42050 |
SXA1#..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06957 |
SXA1#..RHD |
3 | ||
| 47371-42030 |
SXA1#..RHD..(ARL,EUR) W(ABS) |
1 | ||
| 47371-42030 |
SXA1#..RHD W(ABS) |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90179-06218 | ||||
| 90461-08715 | ||||
| 90468-08040 | ||||
| 91621-60645 | ||||
| 91626-60618 | ||||
| 91656-60616 | ||||
| 91656-B0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
