SXA10L-AZMGKV (1996)
Toyota Rav4

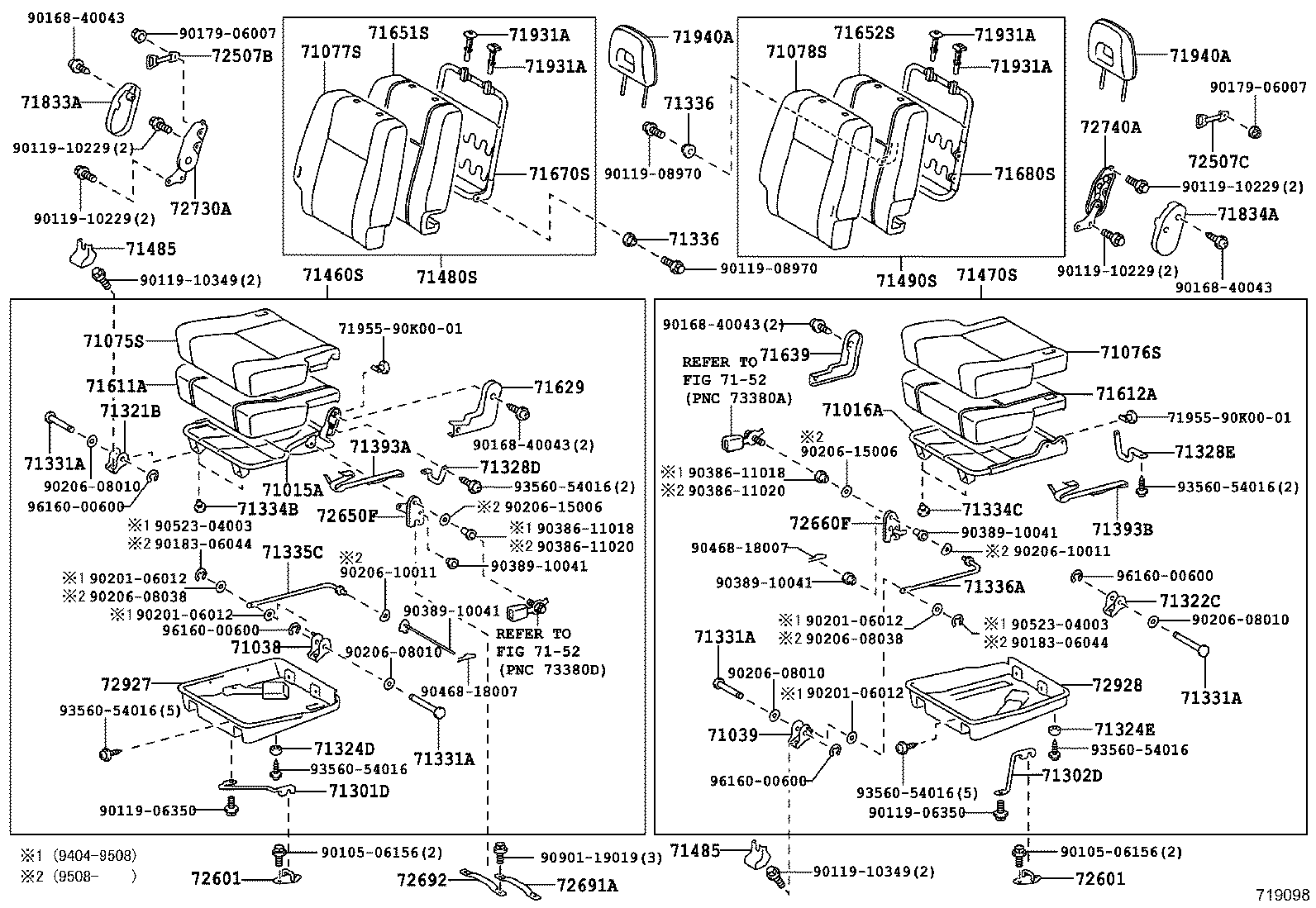

ILLUST NO. 3 OF 3(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71015-42040 |
SXA10 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-42040 |
SXA10 |
1 | ||
| 71016-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-42020 |
SXA10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-42020 |
SXA10 |
1 | ||
| 71038 - HINGE SUB-ASSY, CENTER SEAT BACK, LH | ||||
| 71038-42010 |
SXA10 |
1 | ||
| 71039 - HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH | ||||
| 71039-42010 |
SXA10 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71075-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71075-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71075-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71075-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71075-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71076-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71076-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71076-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71076-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71076-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71077-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71077-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71077-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71078-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71078-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71078-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71078-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71078-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-42011B0 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71301-42010 |
SXA10 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-42010 |
SXA10 |
1 | ||
| 71302-42011B0 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71321B - HINGE, REAR SEAT CUSHION, RH | ||||
| 71311-42010 |
SXA10 |
2 | ||
| 71311-42010 |
SXA10..HT |
2 | ||
| 71311-42010 |
SXA10 |
2 | ||
| 71322C - HINGE, REAR SEAT CUSHION, LH | ||||
| 71311-42010 |
SXA10..HT |
1 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-42010 |
SXA10 |
1 | ||
| 71324-42010 |
SXA10 |
2 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-42010 |
SXA10 |
1 | ||
| 71328D - WIRE, REAR SEAT CUSHION SUPPORT | ||||
| 71328-42020 |
SXA10 |
1 | ||
| 71328-42010 |
SXA10 |
1 | ||
| 71328E - WIRE, REAR SEAT CUSHION SUPPORT | ||||
| 71328-42020 |
SXA10 |
1 | ||
| 71328-42010 |
SXA10 |
1 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71334B - STOPPER, REAR SEAT LEG, RH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71334-42020 |
SXA10..HT |
4 | ||
| 71334-42020 |
SXA10 |
4 | ||
| 71334B - STOPPER, REAR SEAT LEG, RH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71334-42020 |
SXA10..HT |
4 | ||
| 71334-42020 |
SXA10 |
4 | ||
| 71334C - STOPPER, REAR SEAT LEG, LH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71334C - STOPPER, REAR SEAT LEG, LH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71335C - STAY, REAR SEAT CUSHION LINK, RH | ||||
| 71335-42010 |
SXA10 |
1 | ||
| 71336A - STAY, REAR SEAT CUSHION LINK, LH | ||||
| 71336-42010 |
SXA10 |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 71393-42010B2 |
SXA10 SHADOW GRAY,TRIM10,11 |
2 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 71393-42010B2 |
SXA10..HT SHADOW GRAY,TRIM10,11 |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-42012B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71460-42012B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71460-42013B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71460-42012B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71460-42013B7 |
SXA10 SHADOW GRRAY,TRIM11 |
1 | ||
| 71460-42013B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-42012B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71470-42012B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71470-42012B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71470-42013B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71470-42013B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-42051B2 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71480-42010B0 |
SXA10..EUR,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71480-42051B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71480-42051B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71480-42052B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71480-42052B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
4 | ||
| 71485-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
4 | ||
| 71485-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
4 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-42010B0 |
SXA10..EUR,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71490-42051B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71490-42051B2 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71490-42051B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71490-42052B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71490-42052B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-42030 |
SXA10 |
1 | ||
| 71611-42010 |
SXA10 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-42010 |
SXA10 |
1 | ||
| 71612-42030 |
SXA10 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-42020B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71629-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71629-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71639-42020B6 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71639-42020B5 |
SXA10..GCC BLUISH GRAY,TRIM1# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-42010 |
SXA10 |
1 | ||
| 71651-42030 |
SXA10 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-42030 |
SXA10 |
1 | ||
| 71652-42010 |
SXA10 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71834-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71833-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71834-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71833-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71834-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71833-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71834-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71833-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71833-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71834-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71834-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71833-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71834-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71834-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42011B5 |
SXA1# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA10 BLUISH GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42011B5 |
SXA1# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA10 BLUISH GRAY,TRIM10,11 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72345-42010 |
SXA1# |
1 | ||
| 72345-42010 |
SXA1# |
2 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72345-42010 |
SXA1# |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
2 | ||
| 72507-42030B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42011B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 72507-42030B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42011B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-42010 |
SXA10 |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-42010 |
SXA10 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-42010 |
SXA10 |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-42010 |
SXA10 |
1 | ||
| 72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1 | ||||
| 72691-42010 |
SXA10 |
1 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-42010 |
SXA10 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-42040 |
SXA1# NO.1 |
1 | ||
| 72730-42010 |
SXA10 |
1 | ||
| 72730-42050 |
SXA1# NO.2 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-42040 |
SXA1# NO.1 |
1 | ||
| 72730-42010 |
SXA10 |
1 | ||
| 72730-42050 |
SXA1# NO.2 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-42010 |
SXA10 |
1 | ||
| 72740-42040 |
SXA1# NO.1 |
1 | ||
| 72740-42050 |
SXA1# NO.2 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-42010 |
SXA10 |
1 | ||
| 72740-42040 |
SXA1# NO.1 |
1 | ||
| 72740-42050 |
SXA1# NO.2 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 72927-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-42010B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928-42010B6 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| Common parts | ||||
| 71955-90K0001 | ||||
| 90105-06156 | ||||
| 90119-06350 | ||||
| 90119-10229 | ||||
| 90119-10299 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90179-06007 | ||||
| 90183-06044 | ||||
| 90206-08010 | ||||
| 90206-08038 | ||||
| 90206-10011 | ||||
| 90206-15006 | ||||
| 90386-11020 | ||||
| 90389-10041 | ||||
| 90468-18007 | ||||
| 90468-18071 | ||||
| 90901-19019 | ||||
| 93560-54016 | ||||
| 93568-54516 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(9404-9608)SXA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71015-42040 |
SXA10 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-42040 |
SXA10 |
1 | ||
| 71016-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71038 - HINGE SUB-ASSY, CENTER SEAT BACK, LH | ||||
| 71038-42010 |
SXA10 |
1 | ||
| 71039 - HINGE SUB-ASSY, REAR SEAT CUSHION LEG, LH | ||||
| 71039-42010 |
SXA10 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71075-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71075-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71075-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71075-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71075-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71076-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71076-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71076-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71076-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71076-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71077-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71077-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71077-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71077-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71078-42011B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71078-42011B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71078-42012B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71078-42011B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71078-42012B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-42011B0 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71301-42010 |
SXA10 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-42010 |
SXA10 |
1 | ||
| 71302-42011B0 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71321B - HINGE, REAR SEAT CUSHION, RH | ||||
| 71311-42010 |
SXA10 |
2 | ||
| 71311-42010 |
SXA10..HT |
2 | ||
| 71311-42010 |
SXA10 |
2 | ||
| 71322C - HINGE, REAR SEAT CUSHION, LH | ||||
| 71311-42010 |
SXA10..HT |
1 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-42010 |
SXA10 |
1 | ||
| 71324-42010 |
SXA10 |
2 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-42010 |
SXA10 |
1 | ||
| 71328D - WIRE, REAR SEAT CUSHION SUPPORT | ||||
| 71328-42020 |
SXA10 |
1 | ||
| 71328-42010 |
SXA10 |
1 | ||
| 71328E - WIRE, REAR SEAT CUSHION SUPPORT | ||||
| 71328-42020 |
SXA10 |
1 | ||
| 71328-42010 |
SXA10 |
1 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71334B - STOPPER, REAR SEAT LEG, RH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71334-42020 |
SXA10..HT |
4 | ||
| 71334-42020 |
SXA10 |
4 | ||
| 71334C - STOPPER, REAR SEAT LEG, LH | ||||
| 71334-60010 |
SXA10 |
2 | ||
| 71335C - STAY, REAR SEAT CUSHION LINK, RH | ||||
| 71335-42010 |
SXA10 |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 90386-12046 |
SXA10 |
2 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 90386-12046 |
SXA10 |
2 | ||
| 71336A - STAY, REAR SEAT CUSHION LINK, LH | ||||
| 71336-42010 |
SXA10 |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 71393-42010B2 |
SXA10 SHADOW GRAY,TRIM10,11 |
2 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 71393-42010B2 |
SXA10..HT SHADOW GRAY,TRIM10,11 |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-42012B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71460-42012B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71460-42013B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71460-42012B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71460-42013B7 |
SXA10 SHADOW GRRAY,TRIM11 |
1 | ||
| 71460-42013B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-42012B1 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71470-42012B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71470-42012B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71470-42013B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71470-42013B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-42051B2 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71480-42010B0 |
SXA10..EUR,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71480-42051B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71480-42051B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71480-42052B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71480-42052B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
4 | ||
| 71485-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
4 | ||
| 71485-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
4 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-42010B0 |
SXA10..EUR,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 71490-42051B0 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71490-42051B2 |
SXA10 BLUISH GRAY,TRIM13 |
1 | ||
| 71490-42051B4 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71490-42052B7 |
SXA10 SHADOW GRAY,TRIM11 |
1 | ||
| 71490-42052B6 |
SXA10 SHADOW GRAY,TRIM10 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-42030 |
SXA10 |
1 | ||
| 71611-42010 |
SXA10 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-42010 |
SXA10 |
1 | ||
| 71612-42030 |
SXA10 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-42020B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71629-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71629-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71639-42020B6 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 71639-42020B5 |
SXA10..GCC BLUISH GRAY,TRIM1# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-42010 |
SXA10 |
1 | ||
| 71651-42030 |
SXA10 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-42030 |
SXA10 |
1 | ||
| 71652-42010 |
SXA10 |
1 | ||
| 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) | ||||
| 71670-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) | ||||
| 71680-42010 |
SXA10..EUR,GCC,GEN |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71834-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71833-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71834-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71833-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 71833-42030B0 |
SXA10 BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 71834-42020B0 |
SXA1# BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 71834-42020B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.2 |
1 | ||
| 71833-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11,NO.1 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-10020P0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA10 W/O(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-10070P0 |
SXA10 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040B0 |
SXA1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
SXA10 W(LOCK),SHADOW GRAY,TRIM10,11 |
2 | ||
| 71930-44010B1 |
SXA1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42011B5 |
SXA1# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA10 BLUISH GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42011B5 |
SXA1# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA10 BLUISH GRAY,TRIM10,11 |
2 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-42030B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
2 | ||
| 72507-42030B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42011B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-42010B1 |
SXA10 GRAY,TRIM1# |
1 | ||
| 72507-42030B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72507-42011B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-42010 |
SXA10 |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-42010 |
SXA10 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-42010 |
SXA10 |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-42010 |
SXA10 |
1 | ||
| 72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1 | ||||
| 72691-42010 |
SXA10 |
1 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-42010 |
SXA10 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-42040 |
SXA1# NO.1 |
1 | ||
| 72730-42010 |
SXA10 |
1 | ||
| 72730-42050 |
SXA1# NO.2 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-42010 |
SXA10 |
1 | ||
| 72740-42040 |
SXA1# NO.1 |
1 | ||
| 72740-42050 |
SXA1# NO.2 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-42010B1 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| 72927-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-42010B1 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928-42010B0 |
SXA10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928-42010B6 |
SXA10 SHADOW GRAY,TRIM10,11 |
1 | ||
| Common parts | ||||
| 71955-90K0001 | ||||
| 90105-06156 | ||||
| 90119-06350 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90179-06007 | ||||
| 90183-06044 | ||||
| 90201-06012 | ||||
| 90206-08010 | ||||
| 90206-08038 | ||||
| 90206-10011 | ||||
| 90206-15006 | ||||
| 90386-11018 | ||||
| 90386-11020 | ||||
| 90389-10041 | ||||
| 90468-18007 | ||||
| 90523-04003 | ||||
| 90901-19019 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
