GSA33R-ANAXKQ (2007)

Toyota Rav4

Production Aug 2007 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF10(0511-0808)ARL ; (0511-0812)ACA30,ALA30..RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82666A 82666C 82666D 82666N 82671K 82671L 82671M 82671N 82824D 82824D 82824E 82824E 82824E 82824E 82824F 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9011906915 9015960610 9015960613 9015970004 9015970004 9015970004
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-42S01

ACA33,GSA33..ATM..G..ARL

 1
82141-42R91

ACA33,GSA33..ATM..X..ARL

 1
82141-42R91

ACA33,GSA33..ATM..X..ARL

PART NUMBER LABEL=82141-42M31 OR 82141-42R91

 1
82141-42S01

ACA33,GSA33..ATM..G..ARL

PART NUMBER LABEL=82141-42M41 OR 82141-42S01

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-42060

ACA33,GSA33..G..ARL

 1
82666A - HOLDER, CONNECTOR NO.2
82666-42180

ACA30,33,ALA30,GSA33..RHD

 1
82666C - HOLDER, CONNECTOR NO.4
82666-42230

ACA3#,ALA30,GSA33

 1
82666D - HOLDER, CONNECTOR NO.5
82666-42240

ACA3#,ALA30,GSA33

 1
82666N - HOLDER, CONNECTOR NO.10
82666-42190

ACA30,33,ALA30,GSA33..RHD

 1
82671K - BLOCK, JUNCTION, NO.3
82671-30370

ACA3#,ALA30,GSA33..G

 1
82671M - BLOCK, JUNCTION, NO.5
82671-42090

ACA33,GSA33..ARL

 1
82671N - BLOCK, JUNCTION, NO.6
82671-42100

ACA33,GSA33..ARL

 1
82824D - CONNECTOR, WIRING HARNESS
82824-47210

ACA3#,ALA30,GSA33

 1
82824D - CONNECTOR, WIRING HARNESS
82824-47210

ACA3#,ALA30,GSA33

 1
82824E - CONNECTOR, WIRING HARNESS
82824-42180

ACA3#,ALA30,GSA33

NO.1

 4
82824-42190

ACA3#,ALA30,GSA33

NO.4

 4
82824E - CONNECTOR, WIRING HARNESS
82824-42180

ACA3#,ALA30,GSA33

NO.1

 4
82824-42190

ACA3#,ALA30,GSA33

NO.4

 4
82824E - CONNECTOR, WIRING HARNESS
82824-42180

ACA3#,ALA30,GSA33

NO.1

 4
82824-42190

ACA3#,ALA30,GSA33

NO.4

 4
82824E - CONNECTOR, WIRING HARNESS
82824-42180

ACA3#,ALA30,GSA33

NO.1

 4
82824-42190

ACA3#,ALA30,GSA33

NO.4

 4
82824F - CONNECTOR, WIRING HARNESS
82824-28180

ACA33,GSA33..ARL

 3
Common parts
90119-06915
90159-60610
90159-60613
90159-70004
Linked diagrams
8401

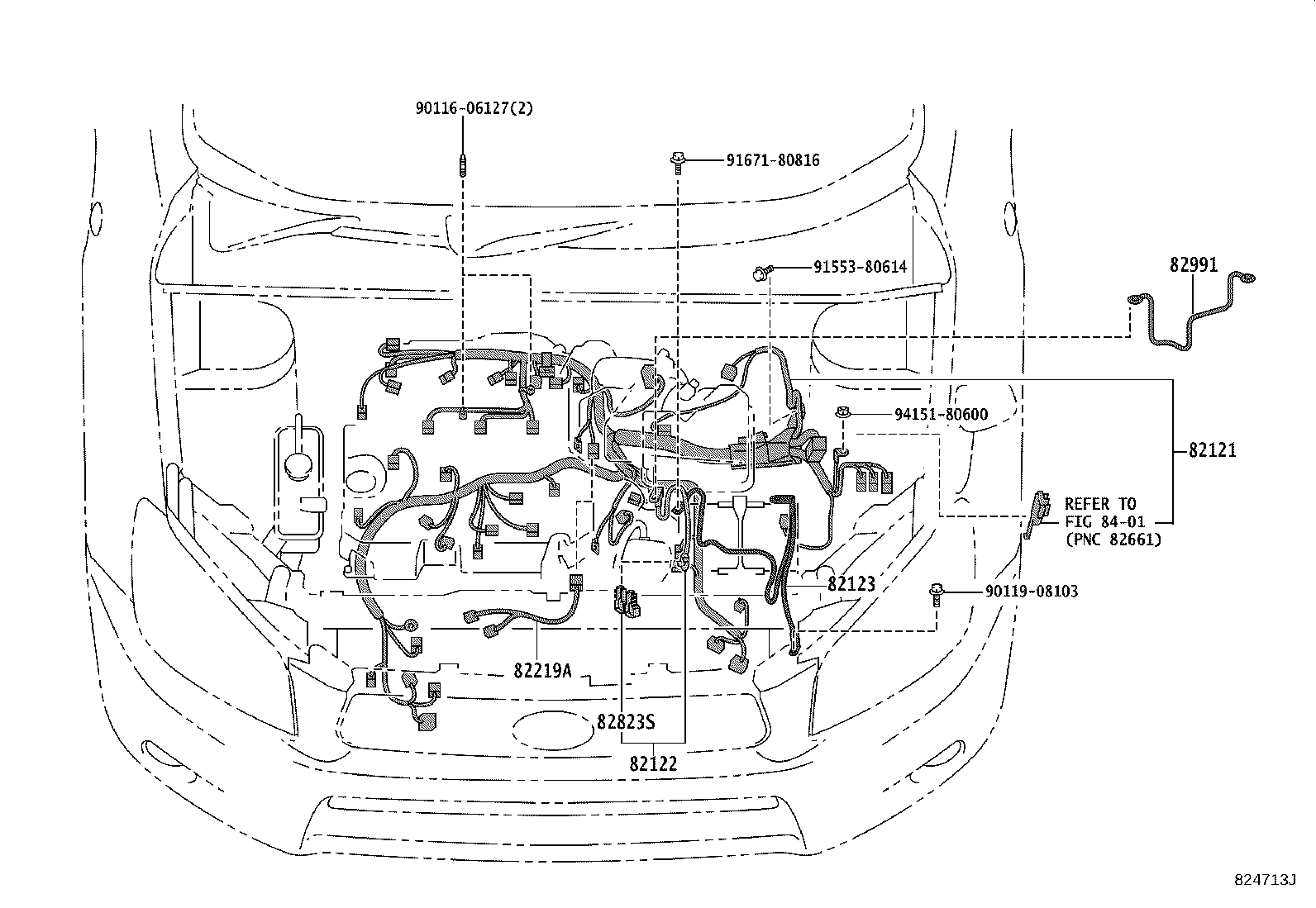

ILLUST NO. 2 OF10(0708- )GSA33

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82123 82219A 82823S 82991 8401 9011606127 9011908103 9155380614 9167180816 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-42A71

GSA33

 1
82122 - WIRE, ENGINE, NO.2
82122-42060

GSA33

 1
82123 - WIRE, ENGINE, NO.3
82123-42140

GSA33

 1
82219A - WIRE, SENSOR
82219-41010

GSA33

 1
82823S - CAP, STARTER TERMINAL
82823-20080

ACA3#,GSA33

 1
Common parts
90116-06127
90119-08103
91553-80614
91671-80816
94151-80600
Linked diagrams
8401

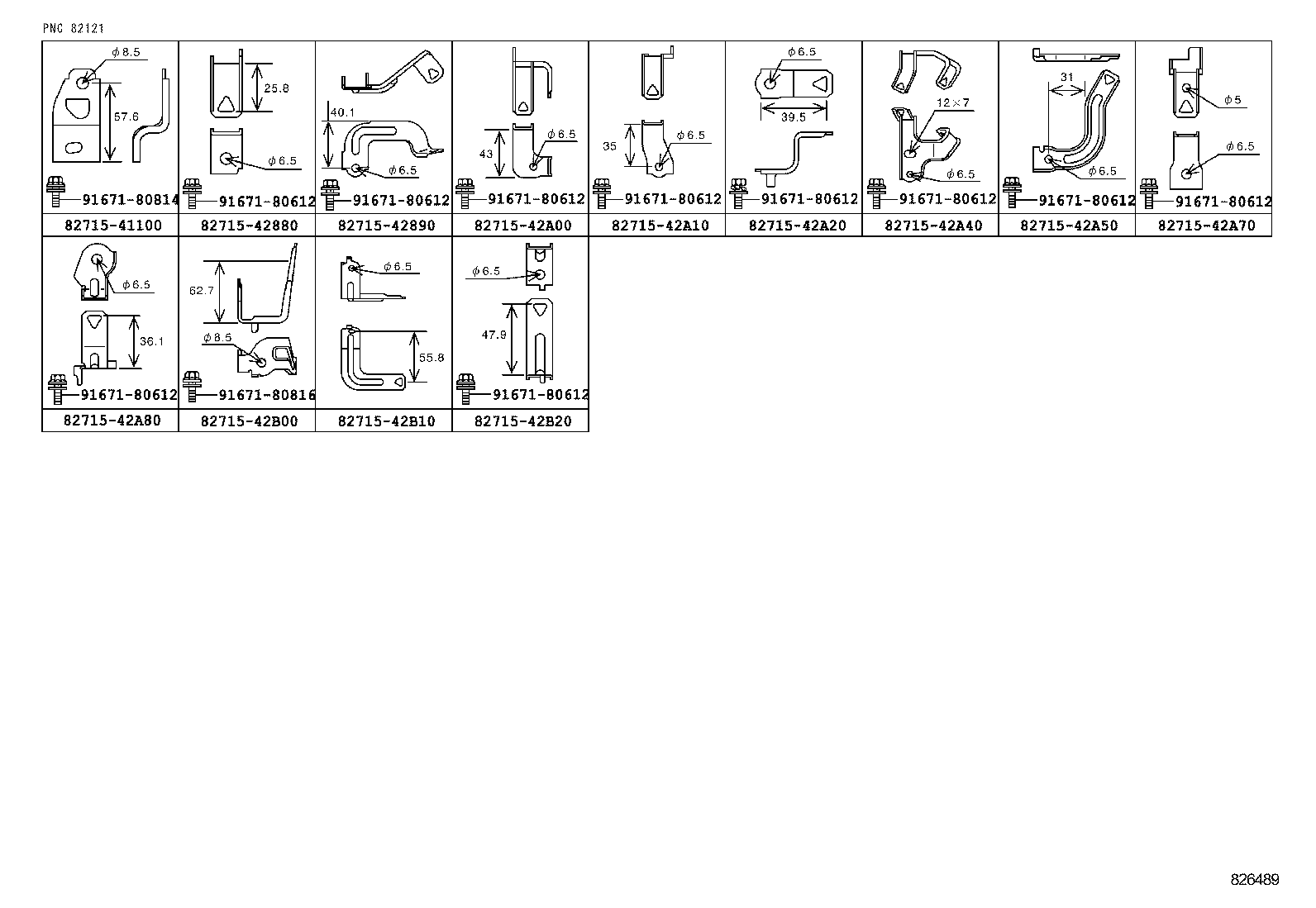

ILLUST NO. 7 OF10(0708- )GSA33

Click highlighted areas on diagram

CLAMP & BRACKET 1/2

diagram 8271541100 8271542880 8271542890 8271542A00 8271542A10 8271542A20 8271542A40 8271542A50 8271542A70 8271542A80 8271542B00 8271542B10 8271542B20 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180814 9167180816
Part # Description Qty Price
Common parts
82715-41100
82715-42880
82715-42890
82715-42A00
82715-42A10
82715-42A20
82715-42A40
82715-42A50
82715-42A70
82715-42A80
82715-42B00
82715-42B10
82715-42B20
91671-80612
91671-80814
91671-80816
