GSA33R-ANAGKQ (2007)
Toyota Rav4
(0708- )2GRFE

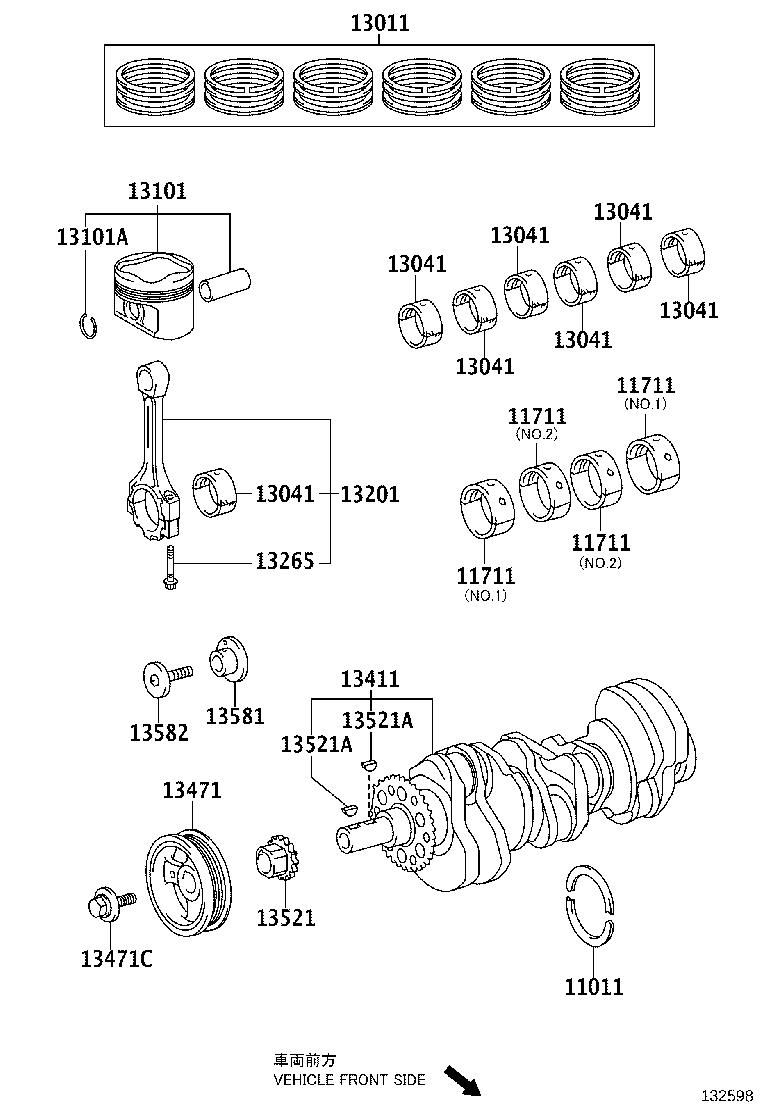

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31060 |
2GRFE..GSA33 STD,(J) |
1 | ||
| 11011-0P030 |
2GRFE..GSA33 STD,(L) |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-0P03003 |
2GRFE..GSA33 MARK3,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03005 |
2GRFE..GSA33 MARK5,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03001 |
2GRFE..GSA33 MARK1,NO.2,(L):REFER R/M |
2 | ||
| 11071-3103102 |
2GRFE..GSA33 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103105 |
2GRFE..GSA33 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03005 |
2GRFE..GSA33 MARK5,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103103 |
2GRFE..GSA33 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03001 |
2GRFE..GSA33 MARK1,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103101 |
2GRFE..GSA33 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03003 |
2GRFE..GSA33 MARK3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P03002 |
2GRFE..GSA33 MARK2,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106102 |
2GRFE..GSA33 MARK2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GRFE..GSA33 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P03004 |
2GRFE..GSA33 MARK4,NO.2,(L):REFER R/M |
2 | ||
| 11701-0P03004 |
2GRFE..GSA33 MARK4,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106103 |
2GRFE..GSA33 MARK3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106101 |
2GRFE..GSA33 MARK1,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P03002 |
2GRFE..GSA33 MARK2,NO.2,(L):REFER R/M |
2 | ||
| 11701-3106105 |
2GRFE..GSA33 MARK5,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106104 |
2GRFE..GSA33 MARK4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-0P03003 |
2GRFE..GSA33 MARK3,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03005 |
2GRFE..GSA33 MARK5,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03001 |
2GRFE..GSA33 MARK1,NO.2,(L):REFER R/M |
2 | ||
| 11071-3103102 |
2GRFE..GSA33 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103105 |
2GRFE..GSA33 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03005 |
2GRFE..GSA33 MARK5,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103103 |
2GRFE..GSA33 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03001 |
2GRFE..GSA33 MARK1,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103101 |
2GRFE..GSA33 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03003 |
2GRFE..GSA33 MARK3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P03002 |
2GRFE..GSA33 MARK2,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106102 |
2GRFE..GSA33 MARK2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GRFE..GSA33 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P03004 |
2GRFE..GSA33 MARK4,NO.2,(L):REFER R/M |
2 | ||
| 11701-0P03004 |
2GRFE..GSA33 MARK4,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106103 |
2GRFE..GSA33 MARK3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106101 |
2GRFE..GSA33 MARK1,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P03002 |
2GRFE..GSA33 MARK2,NO.2,(L):REFER R/M |
2 | ||
| 11701-3106105 |
2GRFE..GSA33 MARK5,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106104 |
2GRFE..GSA33 MARK4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-0P03003 |
2GRFE..GSA33 MARK3,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03005 |
2GRFE..GSA33 MARK5,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03001 |
2GRFE..GSA33 MARK1,NO.2,(L):REFER R/M |
2 | ||
| 11071-3103102 |
2GRFE..GSA33 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103105 |
2GRFE..GSA33 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03005 |
2GRFE..GSA33 MARK5,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103103 |
2GRFE..GSA33 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03001 |
2GRFE..GSA33 MARK1,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103101 |
2GRFE..GSA33 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03003 |
2GRFE..GSA33 MARK3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P03002 |
2GRFE..GSA33 MARK2,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106102 |
2GRFE..GSA33 MARK2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GRFE..GSA33 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P03004 |
2GRFE..GSA33 MARK4,NO.2,(L):REFER R/M |
2 | ||
| 11701-0P03004 |
2GRFE..GSA33 MARK4,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106103 |
2GRFE..GSA33 MARK3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106101 |
2GRFE..GSA33 MARK1,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P03002 |
2GRFE..GSA33 MARK2,NO.2,(L):REFER R/M |
2 | ||
| 11701-3106105 |
2GRFE..GSA33 MARK5,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106104 |
2GRFE..GSA33 MARK4,NO.1,(J):REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-0P03003 |
2GRFE..GSA33 MARK3,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03005 |
2GRFE..GSA33 MARK5,NO.2,(L):REFER R/M |
2 | ||
| 11071-0P03001 |
2GRFE..GSA33 MARK1,NO.2,(L):REFER R/M |
2 | ||
| 11071-3103102 |
2GRFE..GSA33 MARK2,NO.2,(J):REFER R/M |
2 | ||
| 11071-3103105 |
2GRFE..GSA33 MARK5,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03005 |
2GRFE..GSA33 MARK5,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103103 |
2GRFE..GSA33 MARK3,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03001 |
2GRFE..GSA33 MARK1,NO.1,(L):REFER R/M |
2 | ||
| 11071-3103101 |
2GRFE..GSA33 MARK1,NO.2,(J):REFER R/M |
2 | ||
| 11701-0P03003 |
2GRFE..GSA33 MARK3,NO.1,(L):REFER R/M |
2 | ||
| 11701-0P03002 |
2GRFE..GSA33 MARK2,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106102 |
2GRFE..GSA33 MARK2,NO.1,(J):REFER R/M |
2 | ||
| 11071-3103104 |
2GRFE..GSA33 MARK4,NO.2,(J):REFER R/M |
2 | ||
| 11071-0P03004 |
2GRFE..GSA33 MARK4,NO.2,(L):REFER R/M |
2 | ||
| 11701-0P03004 |
2GRFE..GSA33 MARK4,NO.1,(L):REFER R/M |
2 | ||
| 11701-3106103 |
2GRFE..GSA33 MARK3,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106101 |
2GRFE..GSA33 MARK1,NO.1,(J):REFER R/M |
2 | ||
| 11071-0P03002 |
2GRFE..GSA33 MARK2,NO.2,(L):REFER R/M |
2 | ||
| 11701-3106105 |
2GRFE..GSA33 MARK5,NO.1,(J):REFER R/M |
2 | ||
| 11701-3106104 |
2GRFE..GSA33 MARK4,NO.1,(J):REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-31130 |
2GRFE..GSA33 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0P04001 |
2GRFE..GSA33 MARK1,(L):REFER R/M |
6 | ||
| 13041-0P04002 |
2GRFE..GSA33 MARK2,(L):REFER R/M |
6 | ||
| 13041-0P04004 |
2GRFE..GSA33 MARK4,(L):REFER R/M |
6 | ||
| 13041-3107003 |
2GRFE..GSA33 MARK3,(J):REFER R/M |
6 | ||
| 13041-3107004 |
2GRFE..GSA33 MARK4,(J):REFER R/M |
6 | ||
| 13041-3107002 |
2GRFE..GSA33 MARK2,(J):REFER R/M |
6 | ||
| 13041-0P04003 |
2GRFE..GSA33 MARK3,(L):REFER R/M |
6 | ||
| 13041-3107001 |
2GRFE..GSA33 MARK1,(J):REFER R/M |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-31091 |
2GRFE..GSA33 STD |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2GRFE..GSA33 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39135 |
2GRFE..GSA33 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2GRFE..GSA33 |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31040 |
2GRFE..GSA33 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31030 |
2GRFE..GSA33 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16004 |
2GRFE..GSA33 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31041 |
2GRFE..GSA33 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GRFE..GSA33 |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
2GRFE..GSA33 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-31030 |
2GRFE..GSA33 |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31031 |
2GRFE..GSA33 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
