CLA21R-AWMNYW (2001)

Toyota Rav4

Production May 2001 - Nov 2005
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

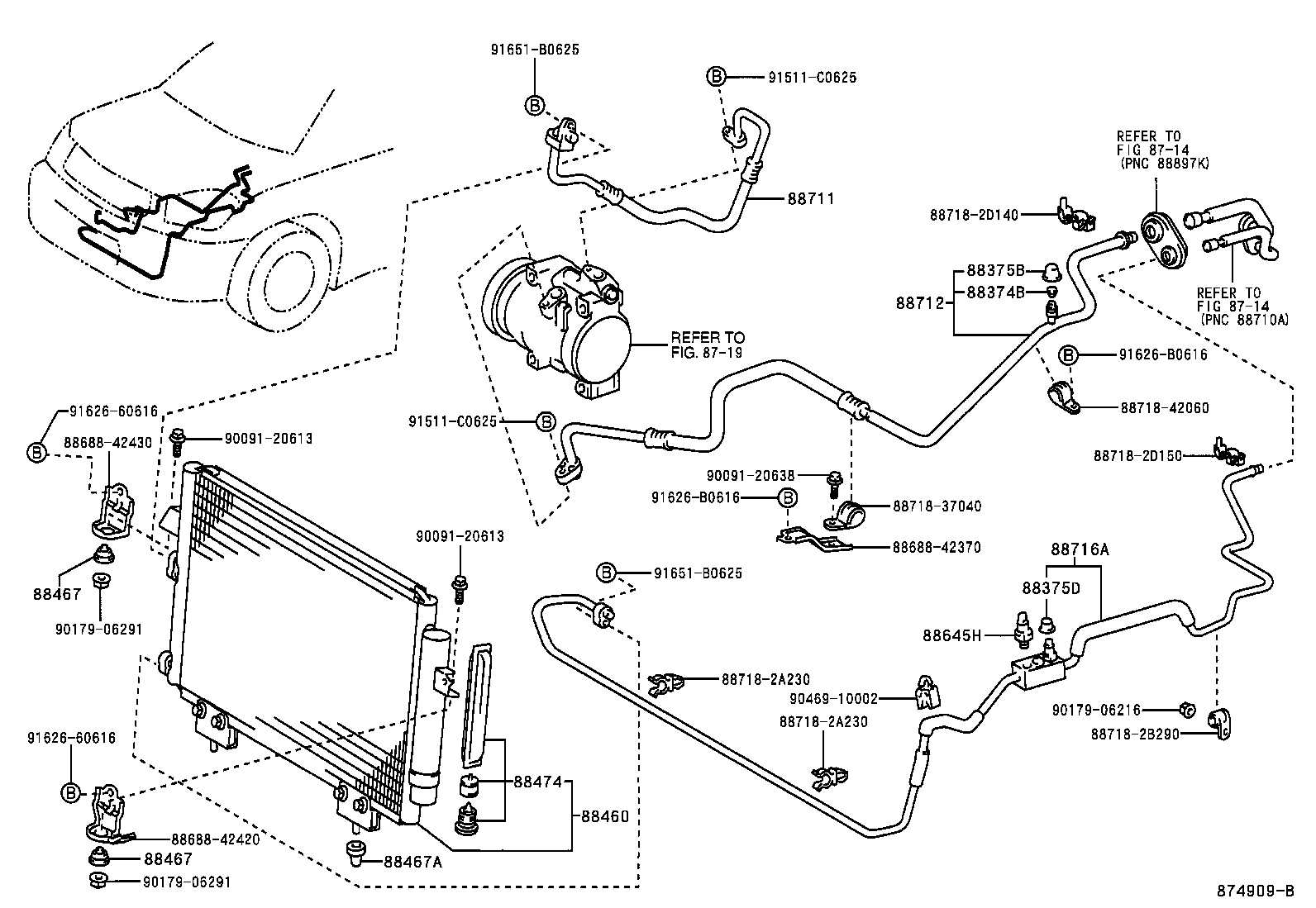

ILLUST NO. 1 OF 2(0105-0307)CLA2#..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88374B 88375B 88375D 88460 88467 88467 88467A 88474 88645H 8868842370 8868842420 8868842430 88711 88712 88716A 887182A230 887182A230 887182B290 887182D140 887182D150 8871837040 8871842060 9009120613 9009120613 9009120638 9017906216 9017906291 9017906291 9046910002 91511C0625 91511C0625 9162660616 9162660616 91626B0616 91626B0616 91651B0625 91651B0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACA2#,CLA2#,ZCA2#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ACA2#,CLA2#,ZCA2#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ACA2#,CLA2#,ZCA2#

 1
88460 - CONDENSER ASSY, COOLER
88460-42070

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 1
88460-42090

ACA2#,CLA2#,ZCA2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88474 - DRYER, COOLER
88474-17010

ACA2#,CLA2#,ZCA2#

 1
88474-47010

ACA2#,CLA2#,ZCA2#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ACA2#,CLA2#,ZCA2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-42060

CLA2#

 1
88703-42060

CLA2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-42110

CLA2#..RHD

 1
88704-42160

CLA2#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-42260

CLA2#..RHD

MAKER OPTION

 1
88716-42220

ACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)

DEALER OPTION

 1
88706-42280

CLA2#..RHD

MAKER OPTION

 1
88706-42260

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
Common parts
88688-42370
88688-42420
88688-42430
88718-2A230
88718-2B290
88718-2D140
88718-2D150
88718-37040
88718-42060
90091-20613
90091-20638
90179-06216
90179-06291
90469-10002
91511-C0625
91626-60616
91626-B0616
91651-B0625
Linked diagrams
8714
8719

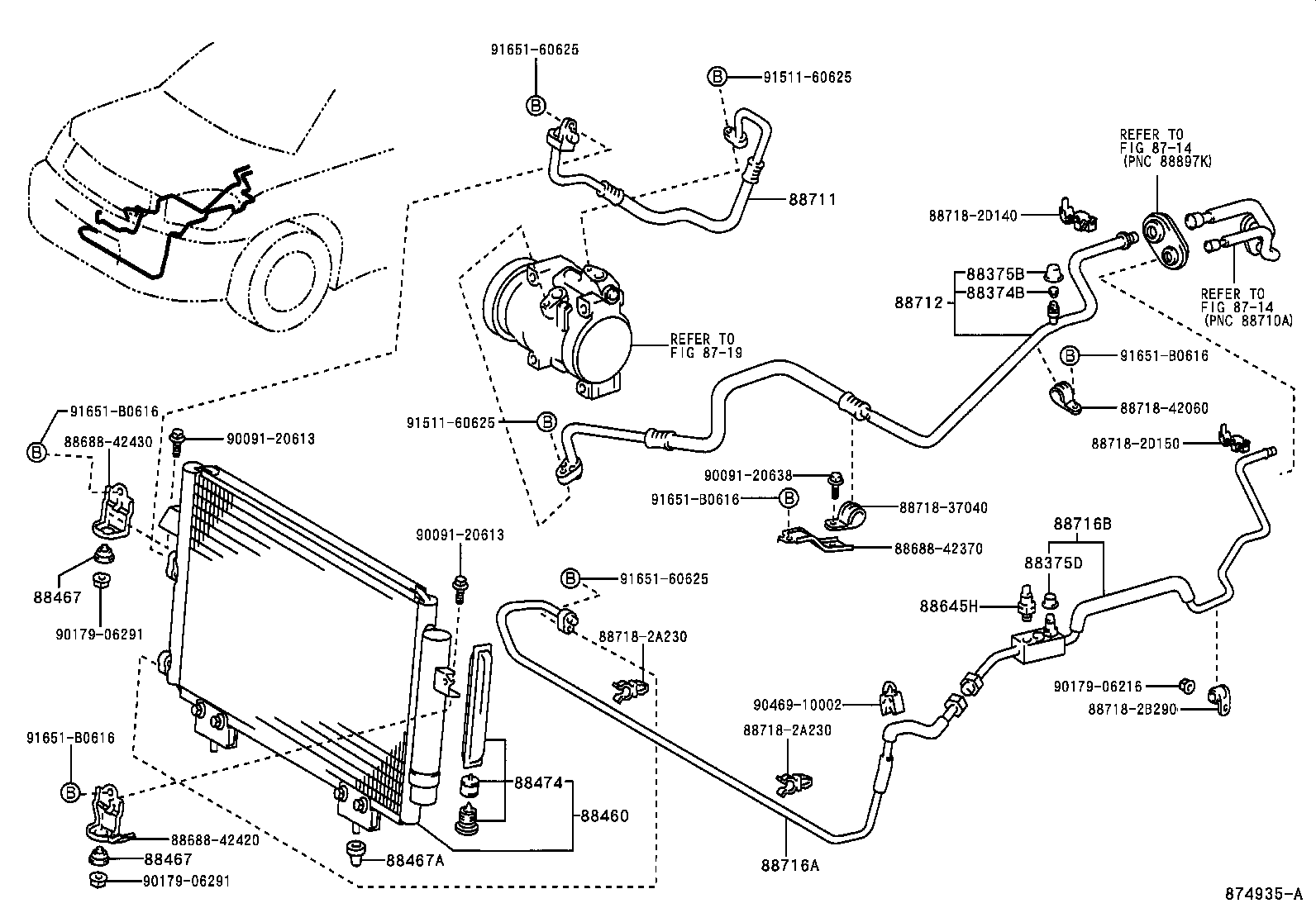

ILLUST NO. 1 OF 2(0105-0307)CLA2#..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88374B 88375B 88375D 88460 88467 88467 88467A 88474 88645H 8868842370 8868842420 8868842430 88711 88712 88716A 88716B 887182A230 887182A230 887182B290 887182D140 887182D150 8871837040 8871842060 9009120613 9009120613 9009120638 9017906216 9017906291 9017906291 9046910002 9151160625 9151160625 9165160625 9165160625 91651B0616 91651B0616 91651B0616 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACA2#,CLA2#,ZCA2#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ACA2#,CLA2#,ZCA2#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ACA2#,CLA2#,ZCA2#

 1
88460 - CONDENSER ASSY, COOLER
88460-42070

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 1
88460-42090

ACA2#,CLA2#,ZCA2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88474 - DRYER, COOLER
88474-17010

ACA2#,CLA2#,ZCA2#

 1
88474-47010

ACA2#,CLA2#,ZCA2#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ACA2#,CLA2#,ZCA2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-42060

CLA2#

 1
88703-42060

CLA2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-42110

CLA2#..RHD

 1
88704-42160

CLA2#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-42260

CLA2#..RHD

MAKER OPTION

 1
88716-42220

ACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)

DEALER OPTION

 1
88706-42280

CLA2#..RHD

MAKER OPTION

 1
88706-42260

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-42300

CLA2#..RHD

 1
88706-42340

CLA2#..RHD

 1
88706-42340

CLA2#..RHD

 1
Common parts
88688-42370
88688-42420
88688-42430
88718-2A230
88718-2B290
88718-2D140
88718-2D150
88718-37040
88718-42060
90091-20613
90091-20638
90179-06216
90179-06291
90469-10002
91511-60625
91651-60625
91651-B0616
Linked diagrams
8714
8719

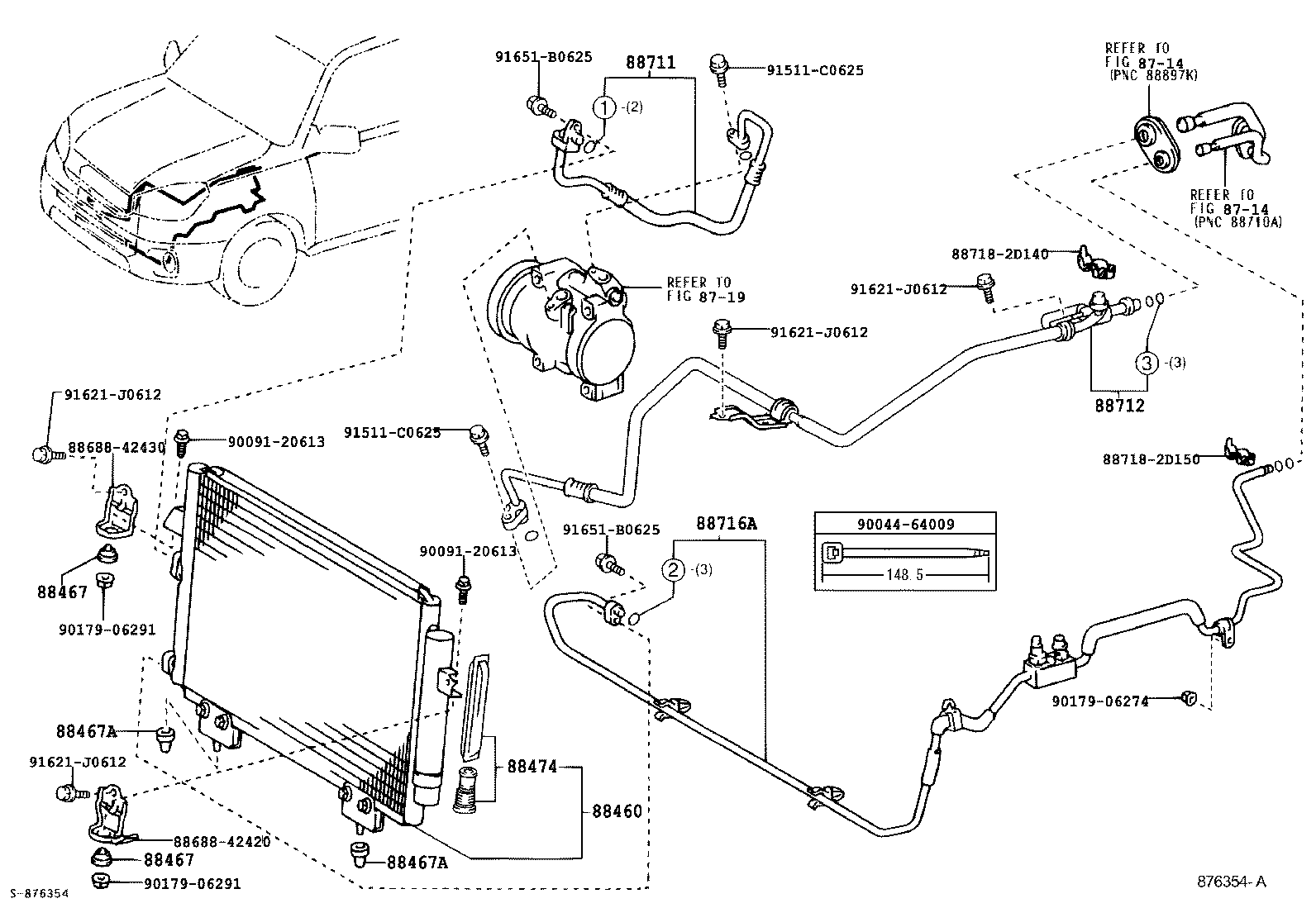

ILLUST NO. 1 OF 2(0307- )CLA2#..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88460 88467 88467 88467A 88467A 88474 8868842420 8868842430 88711 88712 88716A 887182D140 887182D150 9004464009 9009120613 9009120613 9017906274 9017906291 9017906291 91511C0625 91511C0625 91621J0612 91621J0612 91621J0612 91621J0612 91651B0625 91651B0625
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-42070

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 1
88460-42090

ACA2#,CLA2#,ZCA2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88474 - DRYER, COOLER
88474-47010

ACA2#,CLA2#,ZCA2#

 1
88474-17010

ACA2#,CLA2#,ZCA2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-42060

CLA2#

 1
88703-42060

CLA2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-42110

CLA2#..RHD

 1
88704-42160

CLA2#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-42260

CLA2#..RHD

MAKER OPTION

 1
88716-42220

ACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)

DEALER OPTION

 1
88706-42280

CLA2#..RHD

MAKER OPTION

 1
88706-42260

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
Common parts
88688-42420
88688-42430
88718-2D140
88718-2D150
90044-64009
90091-20613
90179-06274
90179-06291
91511-C0625
91621-J0612
91651-B0625
Linked diagrams
8714
8719

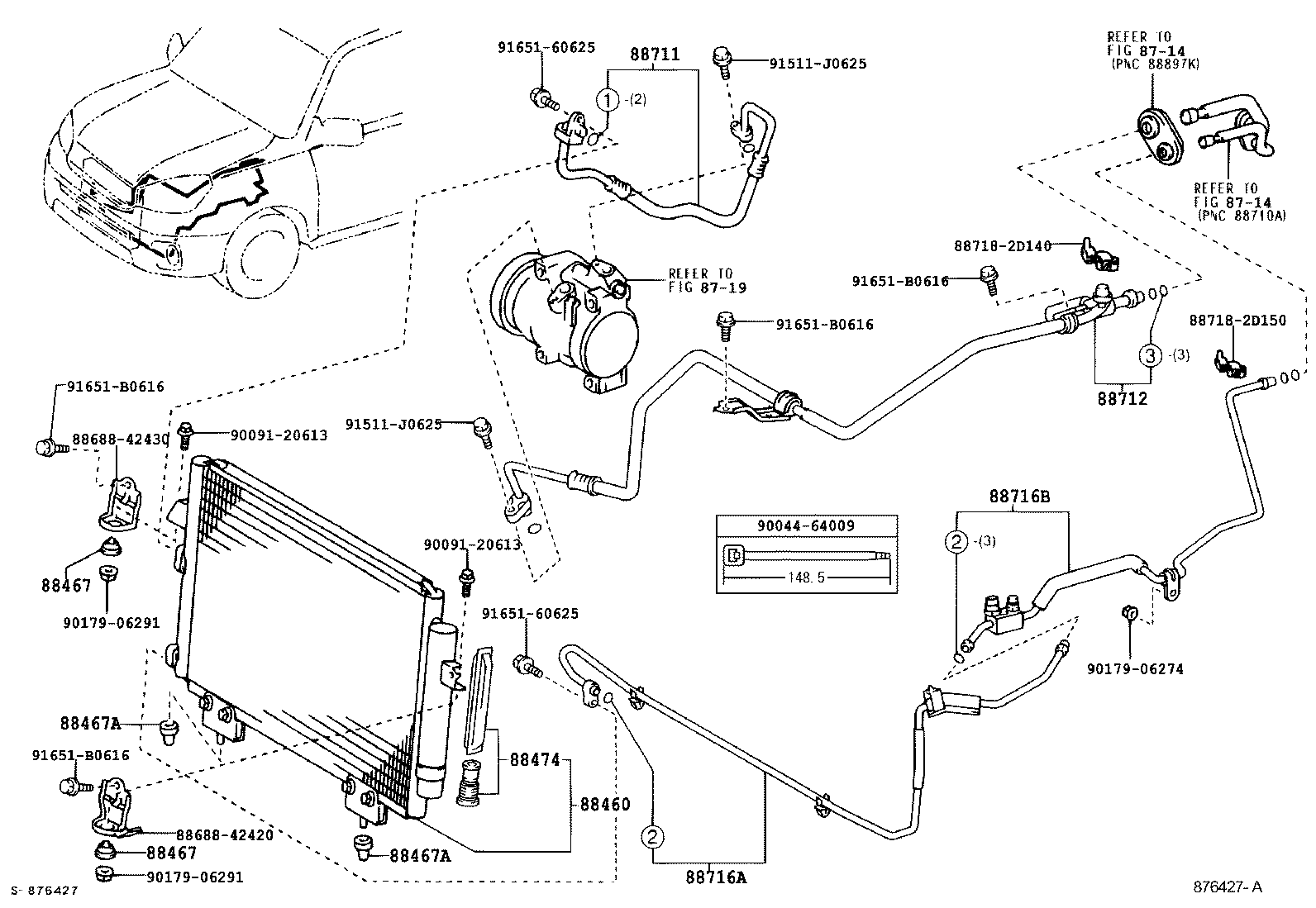

ILLUST NO. 1 OF 2(0307- )CLA2#..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88460 88467 88467 88467A 88467A 88474 8868842420 8868842430 88711 88712 88716A 88716B 887182D140 887182D150 9004464009 9009120613 9009120613 9017906274 9017906291 9017906291 91511J0625 91511J0625 9165160625 9165160625 91651B0616 91651B0616 91651B0616 91651B0616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-42070

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 1
88460-42090

ACA2#,CLA2#,ZCA2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467-42020

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88467-28040

ACA2#,CLA2#,ZCA2#

 2
88474 - DRYER, COOLER
88474-47010

ACA2#,CLA2#,ZCA2#

 1
88474-17010

ACA2#,CLA2#,ZCA2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-42060

CLA2#

 1
88703-42060

CLA2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-42110

CLA2#..RHD

 1
88704-42160

CLA2#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-42260

CLA2#..RHD

MAKER OPTION

 1
88716-42220

ACA2#,CLA2#,ZCA2#..RHD..(ARL,EUR)

DEALER OPTION

 1
88706-42280

CLA2#..RHD

MAKER OPTION

 1
88706-42260

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88706-42300

CLA2#..RHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-42300

CLA2#..RHD

 1
88706-42340

CLA2#..RHD

 1
88706-42340

CLA2#..RHD

 1
Common parts
88688-42420
88688-42430
88718-2D140
88718-2D150
90044-64009
90091-20613
90179-06274
90179-06291
91511-J0625
91651-60625
91651-B0616
Linked diagrams
8714
8719
