CLA21L-AWMNYW (2001)

Toyota Rav4

Production May 2001 - Nov 2005
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )1CDFTV

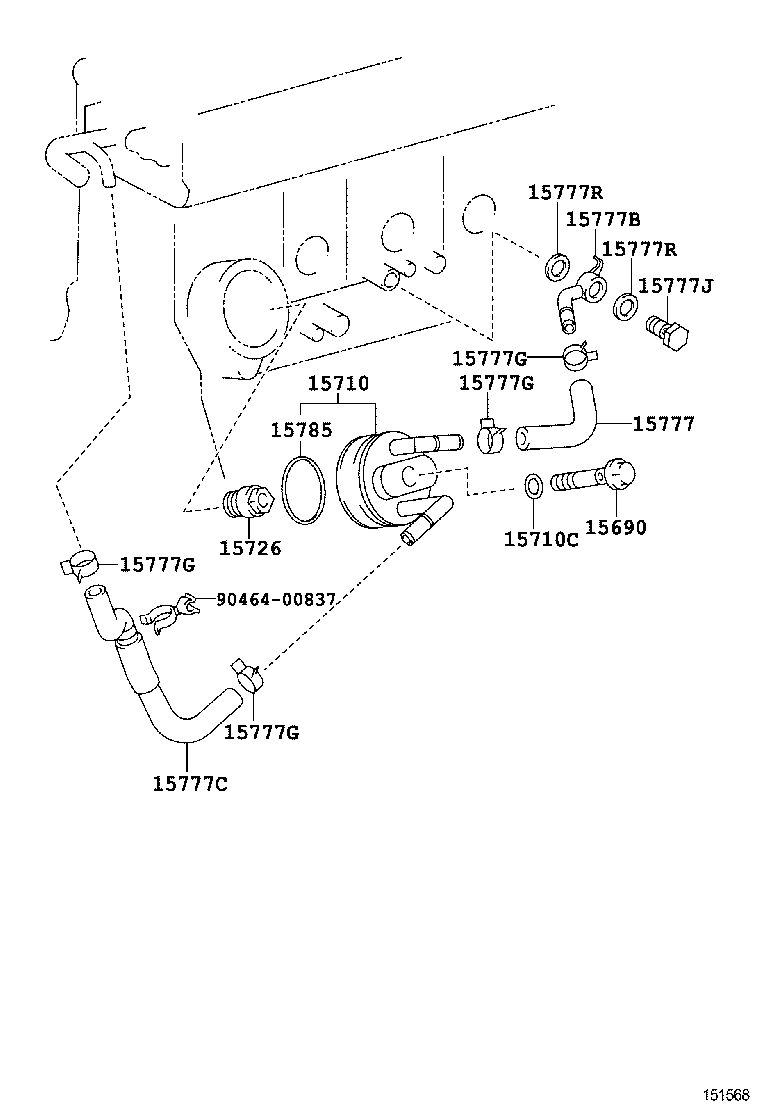

Click highlighted areas on diagram

diagram 15690 15710 15710C 15726 15777 15777B 15777C 15777G 15777G 15777G 15777G 15777J 15777R 15777R 15785 9046400837
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
90401-19009

1CDFTV..CLA2#

 1
90401-19009

1CDFTV..CLA2#

 1
15710 - COOLER ASSY, OIL
15710-27030

1CDFTV..CLA2#

 1
15710-27030

1CDFTV..CLA2#

 1
15710C - GASKET(FOR OIL COOLER)
90301-24017

1CDFTV..CLA2#

 1
90301-24017

1CDFTV..CLA2#

 1
15726 - CONNECTOR, OIL COOLER UNION BOLT
15726-27010

1CDFTV..CLA2#

 1
15726-27010

1CDFTV..CLA2#

 1
15777 - HOSE, OIL COOLER
15777-27020

1CDFTV..CLA2#

 1
15777-27020

1CDFTV..CLA2#

 1
15777B - PIPE, OIL COOLER
15768-27020

1CDFTV..CLA2#

 1
15768-27020

1CDFTV..CLA2#

 1
15777C - HOSE, OIL COOLER
15778-27030

1CDFTV..CLA2#

 1
15778-27030

1CDFTV..CLA2#

 1
15777G - CLAMP OR CRIP, HOSE
96134-41900

1CDFTV..CLA2#

 4
90467-20005

1CDFTV..CLA2#

 4
15777G - CLAMP OR CRIP, HOSE
96134-41900

1CDFTV..CLA2#

 4
90467-20005

1CDFTV..CLA2#

 4
15777G - CLAMP OR CRIP, HOSE
96134-41900

1CDFTV..CLA2#

 4
90467-20005

1CDFTV..CLA2#

 4
15777G - CLAMP OR CRIP, HOSE
96134-41900

1CDFTV..CLA2#

 4
90467-20005

1CDFTV..CLA2#

 4
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004

1CDFTV..CLA2#

 1
90401-20004

1CDFTV..CLA2#

 1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014

1CDFTV..CLA2#

 2
90430-20014

1CDFTV..CLA2#

 2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20014

1CDFTV..CLA2#

 2
90430-20014

1CDFTV..CLA2#

 2
15785 - GASKET, OIL COOLER
15785-27010

1CDFTV..CLA2#

 1
Common parts
90464-00837
