CLA20R-AZMNYW (2001)
Toyota Rav4
Production
May 2001
-
Nov 2005
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )CLA2#..RHD

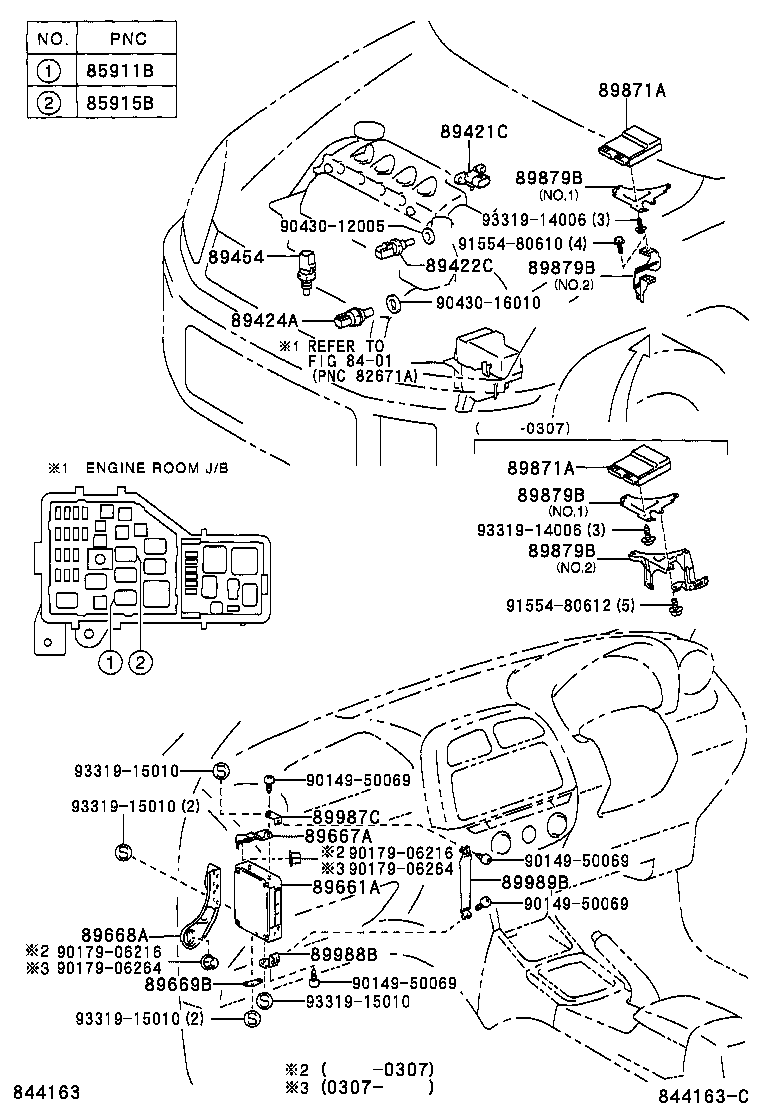

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911B - RELAY, COMPUTER (FOR DIESEL TURBO) | ||||
| 90987-02012 |
CLA2# |
1 | ||
| 90987-02027 |
CLA2# |
1 | ||
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 90987-02027 |
CLA2# |
1 | ||
| 90987-02012 |
CLA2# |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-20210 |
CLA2# |
1 | ||
| 89421-20210 |
CLA2# |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-35010 |
CLA2# |
1 | ||
| 89422-35010 |
CLA2# |
1 | ||
| 89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO) | ||||
| 89424-60010 |
CLA2# |
1 | ||
| 89424-60010 |
CLA2# |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-60010 |
CLA2# |
1 | ||
| 89454-60010 |
CLA2# |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-42A10 |
CLA2# |
1 | ||
| 89661-42780 |
CLA2# PART NUMBER LABEL=89661-42780 |
1 | ||
| 89661-42B50 |
CLA2# PART NUMBER LABEL=89661-42B50 |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-42030 |
CLA2#..RHD |
1 | ||
| 89667-42030 |
CLA2#..RHD |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-42030 |
CLA2#..RHD |
1 | ||
| 89668-42030 |
CLA2#..RHD |
1 | ||
| 89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-42040 |
CLA2# |
1 | ||
| 89669-42040 |
CLA2# |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-20030 |
CLA2# |
1 | ||
| 89871-26010 |
CLA2# |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-20030 |
CLA2# |
1 | ||
| 89871-26010 |
CLA2# |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-42030 |
CLA2# NO.2 |
1 | ||
| 89879-42050 |
CLA2# NO.2 |
1 | ||
| 89879-42051 |
CLA2# NO.2 |
1 | ||
| 89879-42020 |
CLA2# NO.1 |
1 | ||
| 89879-42040 |
CLA2# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-42030 |
CLA2# NO.2 |
1 | ||
| 89879-42050 |
CLA2# NO.2 |
1 | ||
| 89879-42051 |
CLA2# NO.2 |
1 | ||
| 89879-42020 |
CLA2# NO.1 |
1 | ||
| 89879-42040 |
CLA2# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-42030 |
CLA2# NO.2 |
1 | ||
| 89879-42050 |
CLA2# NO.2 |
1 | ||
| 89879-42051 |
CLA2# NO.2 |
1 | ||
| 89879-42020 |
CLA2# NO.1 |
1 | ||
| 89879-42040 |
CLA2# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-42030 |
CLA2# NO.2 |
1 | ||
| 89879-42050 |
CLA2# NO.2 |
1 | ||
| 89879-42051 |
CLA2# NO.2 |
1 | ||
| 89879-42020 |
CLA2# NO.1 |
1 | ||
| 89879-42040 |
CLA2# NO.1 |
1 | ||
| 89987C - BRACKET, COMPUTER, NO.1 | ||||
| 89987-42010 |
CLA2#..RHD |
1 | ||
| 89987-42010 |
CLA2#..RHD |
1 | ||
| 89988B - BRACKET, COMPUTER, NO.2 | ||||
| 89988-42030 |
CLA2#..RHD |
1 | ||
| 89988-42030 |
CLA2#..RHD |
1 | ||
| 89989B - BRACKET, COMPUTER, NO.3 | ||||
| 89989-42010 |
CLA2#..RHD |
1 | ||
| 89989-42010 |
CLA2#..RHD |
1 | ||
| Common parts | ||||
| 90149-50069 | ||||
| 90179-06216 | ||||
| 90179-06264 | ||||
| 90430-12005 | ||||
| 90430-16010 | ||||
| 91554-80610 | ||||
| 91554-80612 | ||||
| 93319-14006 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
