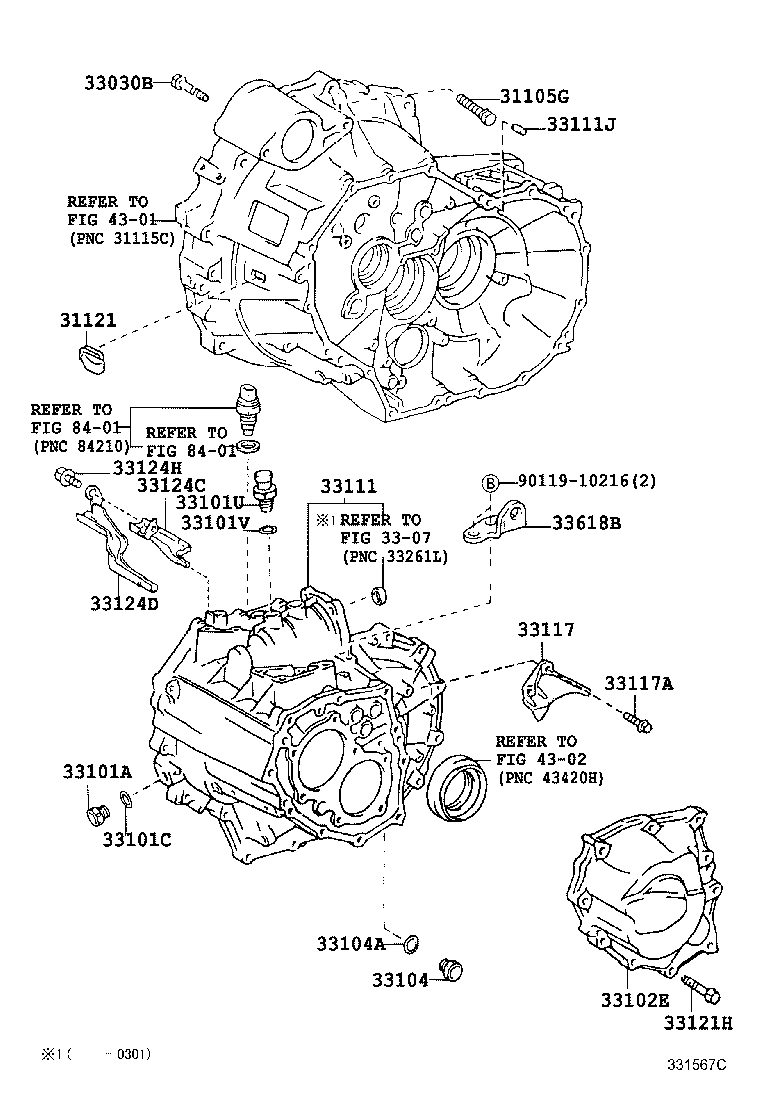

CLA20R-AZMNYW (2001)
Toyota Rav4
(0105-0511)CLA2#
E353F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
CLA2# *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
CLA2# *12-1.25PX55-30 |
3 | ||
| 90119-12168 |
CLA2# *12-1.25PX55-30 |
3 | ||
| 90105-10519 |
CLA2# *10-1.25PX33.5-22 |
1 | ||
| 90105-10519 |
CLA2# *10-1.25PX33.5-22 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-20010 |
CLA2# |
1 | ||
| 31121-20010 |
CLA2# |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ACA20,21,CLA2#..MTM *8-1.25PX45-27.5 |
17 | ||
| 90105-08126 |
ACA2#,CLA2#..MTM *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
ACA2#,CLA2#..MTM |
1 | ||
| 90341-18033 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 90430-18008 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03148 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90930-03148 |
ACA2#,CLA2#..MTM |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
ACA2#,CLA2#..MTM |
1 | ||
| 90430-18008 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33102E - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12041 |
ACA2#,CLA2#..MTM |
1 | ||
| 33102-12042 |
ACA2#,CLA2#..MTM |
1 | ||
| 33102-12042 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33102-12043 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 90341-18006 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 90430-18008 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-42011 |
CLA2# |
1 | ||
| 33101-42030 |
CLA2# |
1 | ||
| 33101-42030 |
CLA2# |
1 | ||
| 33101-42010 |
CLA2# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12005 |
ACA2#,CLA2#..MTM L=24,OD=12 |
2 | ||
| 90250-08054 |
ACA2#,CLA2#,ZCA2#..MTM L=23,OD=8 |
4 | ||
| 90250-08054 |
ACA20,21,CLA2#..MTM L=23,OD=8 |
4 | ||
| 90250-12005 |
ACA20,21,CLA2#..MTM L=24,OD=12 |
4 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33117-20020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 91641-H0820 |
ACA2#,CLA2#..MTM |
2 | ||
| 90105-08040 |
ACA2#,CLA2#..MTM |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
ACA2#,CLA2#..MTM |
10 | ||
| 90119-08630 |
ACA20,21,CLA2#..MTM |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-28050 |
ACA2#,CLA2#..MTM |
1 | ||
| 33124-28050 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-28060 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33124-28060 |
ACA2#,CLA2#..MTM |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08830 |
ACA20,21,CLA2#..MTM |
2 | ||
| 90119-08830 |
ACA2#,CLA2#..MTM |
2 | ||
| 33618B - SUPPORT, SELECTING BELLCRANK | ||||
| 33618-44010 |
CLA2# |
1 | ||
| 33618-44010 |
CLA2# |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
