AVA44L-ANXMB (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )6F..GCC ; (1510- )ZSA44..A..G ; (1510- )ZSA44..LHD..B ; (1510-

Click highlighted areas on diagram

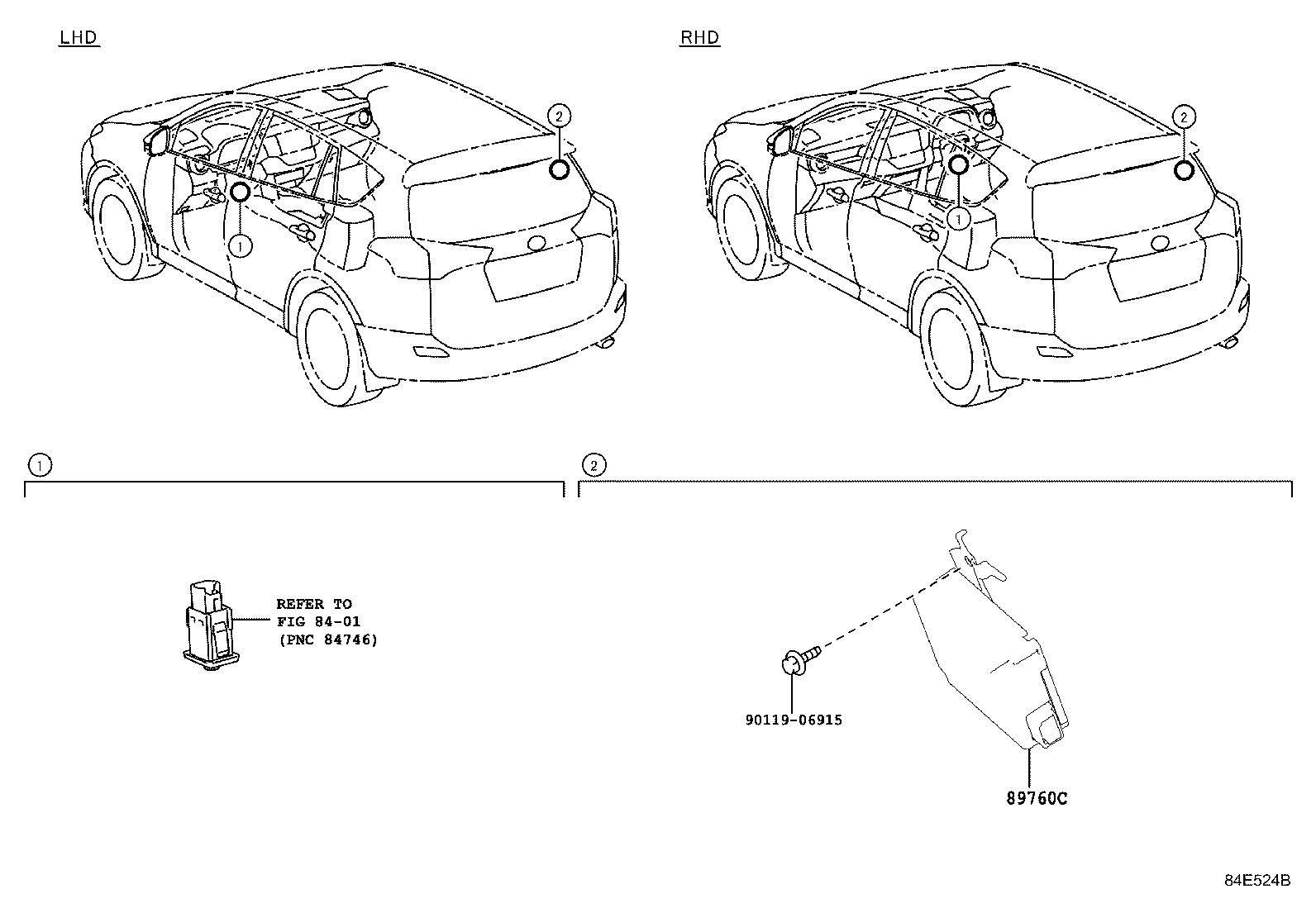

diagram 8401 89760C 9011906915
Part # Description Qty Price
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-42053

AVA4#..M

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42053

AVA4#..M

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42033

AVA4#..M

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(433MHZ)W/RESET SW

 1
89760-42033

AVA4#..M

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(433MHZ)W/RESET SW

 1
89760-42034

AVA4#..G

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42034

AVA4#..G

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42034

AVA4#..M

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(433MHZ)W/RESET SW

 1
89760-42034

AVA4#..M

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&TIRE INFLATION PRESS WRNG-WITH(433MHZ)W/RESET SW

 1
89760-42054

AVA4#..M

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42054

AVA4#..M

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42033

ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42033

ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN

TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42053

ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN

SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42053

ZSA4#..LHD..B..G;ASA4#,AVA4#..LHD..G..GEN

SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42054

AVA4#..G

SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
89760-42054

AVA4#..G

SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESS WRNG-WITH(433MHZ) W/RESET SW

 1
Common parts
90119-06915
Linked diagrams
8401
